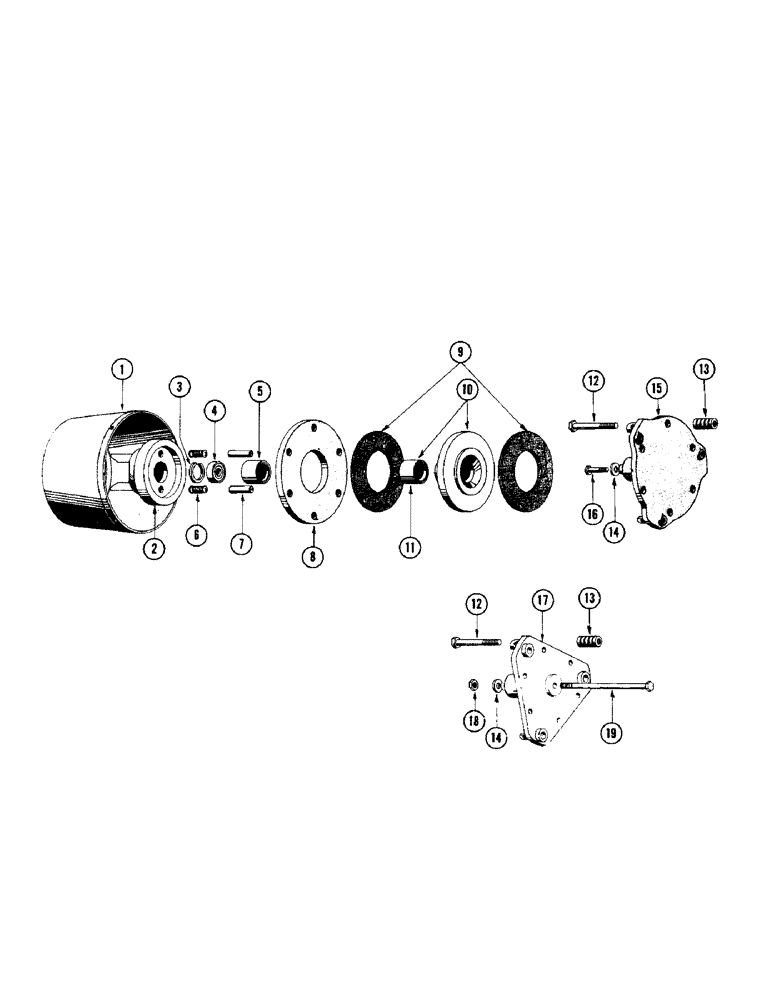

Запчасти Case IH 200 (12[A]) - PTO CLUTCH

1

F60806

SHIELD - clutch

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (75-48) L.W. (92-4)

3шт.

2

F95427

YOKE - universal joint, machine end

1шт.

3

N4649

RING, SNAP

SNAP RING - retaining

1шт.

4

F60695

BEARING

1шт.

5

F60692

BUSHING

(1-7/16" O.D. x 1" long)

1шт.

6

F60698

SPRING

- overrunning clutch pin

2шт.

7

F60697

PIN

(1/2" O.D. x 1-3/8" long) Overrunning clutch

2шт.

8

F60693

PLATE - slip clutch

1шт.

9

F95518

KIT

FACING (Set of two) Slip clutch

1шт.

10

F95423

PLATE - clutch (Replaced by F95725 when stocks are exhausted)

1шт.

11

F60692

BUSHING

(1-7/16" O.D. x 1" long)

1шт.

F95725

PLATE - clutch (Replaces F95423 when stocks are exhausted)

1шт.

F60692

BUSHING

(1-7/16" O.D. x 1" long)

1шт.

12

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

BOLT - 3/8" N.F. hex., for slip clutch springs

6шт.

NUT - 3/8" N.F. hex. (25-116) fl. wshr. (95-6)

6шт.

13

F60482

SPRING

- slip clutch (Replaced by F61200 when stocks are exhausted)

6шт.

F61200

SPRING

- slip clutch (Replaces F60482 when stocks are exhausted)

6шт.

14

O3781N

WASHER (1" O.D. x 13/32" I.D. x 3/16" thick)

1шт.

15

F95582

PLATE - flywheel slip clutch (Replaced by F95799 when stocks are exhausted)

1шт.

BOLT - 3/8" x 3-1/2" N.F. hex. (14-656) nut (25-116) L.W. (92-6)

3шт.

16

113-224

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW - 3/8" x 2" nyloc hex. hd. cap

1шт.

LOCKWASHER - 3/8" (92-6)

1шт.

17

F95799

PLATE - flywheel slip clutch (Replaces F95582 when stocks are exhausted)

1шт.

18

131-5

LOCK NUT,3/8"-16, GB

LOCKNUT - 3/8" N.F. (ESNA #29NEO64)

1шт.

19

14-664

BOLT,Hex, 3/8" - 24 x 4", Gr 5

- 3/8" x 4" N.F. hex.

1шт.

BOLT - 3/8" x 3-1/2" N.F. hex. (15-656) nut (25-116) L.W. (92-6)

3шт.
