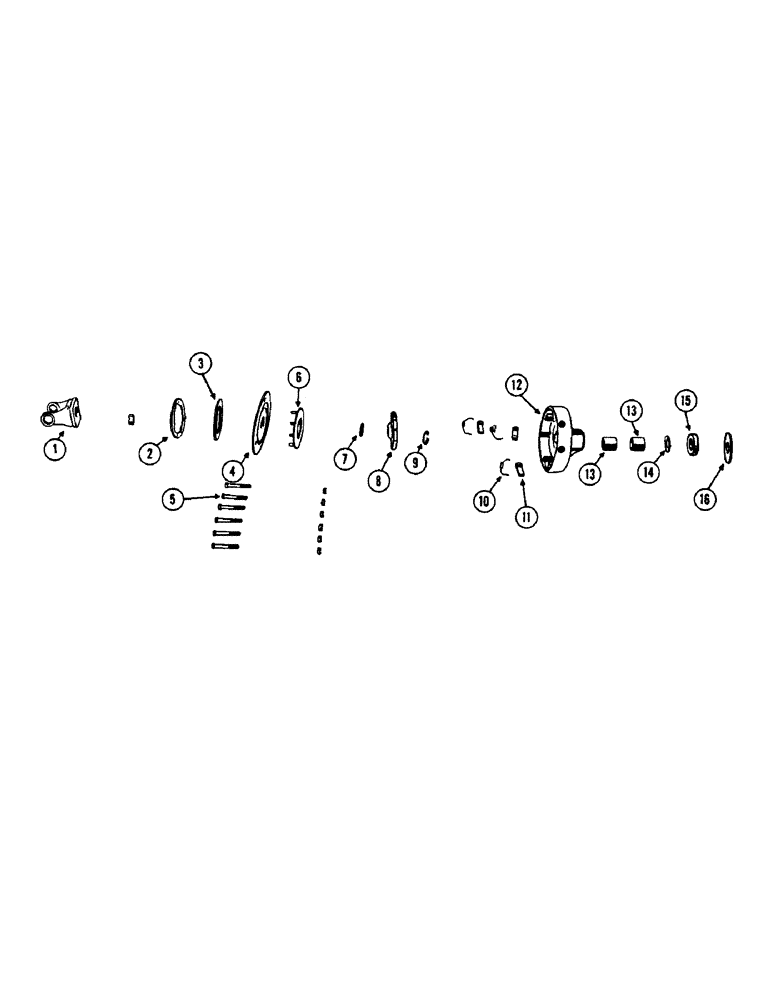

Запчасти Case IH 133 (10) - OVER-RUNNING CLUTCH

1

F49091

YOKE - discharge end

1шт.

2

O1962CH

WASHER - yoke

1шт.

3

B15608

RING - locating

1шт.

4

O2122FH

PLATE - mounting, universal joint

1шт.

5

O136FH

BOLT - for ref. 4 plate

6шт.

NUT - 7/16" N.F. hex. slotted

6шт.

PIN - 1/8" x 3/4" cotter

6шт.

6

1116FHA

ANCHOR - bolt and clip retainer

1шт.

NUT - 5/16" N.C. hex. w/L.W.

4шт.

7

O6735AB

WASHER - under ref. 11 nut (See gear box

1шт.

8

O2279FH

RATCHET - clutch

1шт.

9

O6384AB

SNAP RING - for ref. 8 ratchet

1шт.

10

O134FH

SPRING - clutch

3шт.

11

O133FH

PAWL - clutch

3шт.

12

1086FHA

HUB - over running clutch

1шт.

FITTING - 1/8" straight Lincoln #5000

1шт.

13

B15792

BUSHING

2шт.

14

O1198AB2

X

WASHER - shim, clutch hub

1шт.

15

B11957

COLLAR - between ref. 16 washer and clutch hub

1шт.

16

O667CH1

WASHER - between clutch hub and P.T.O. shaft

1шт.
