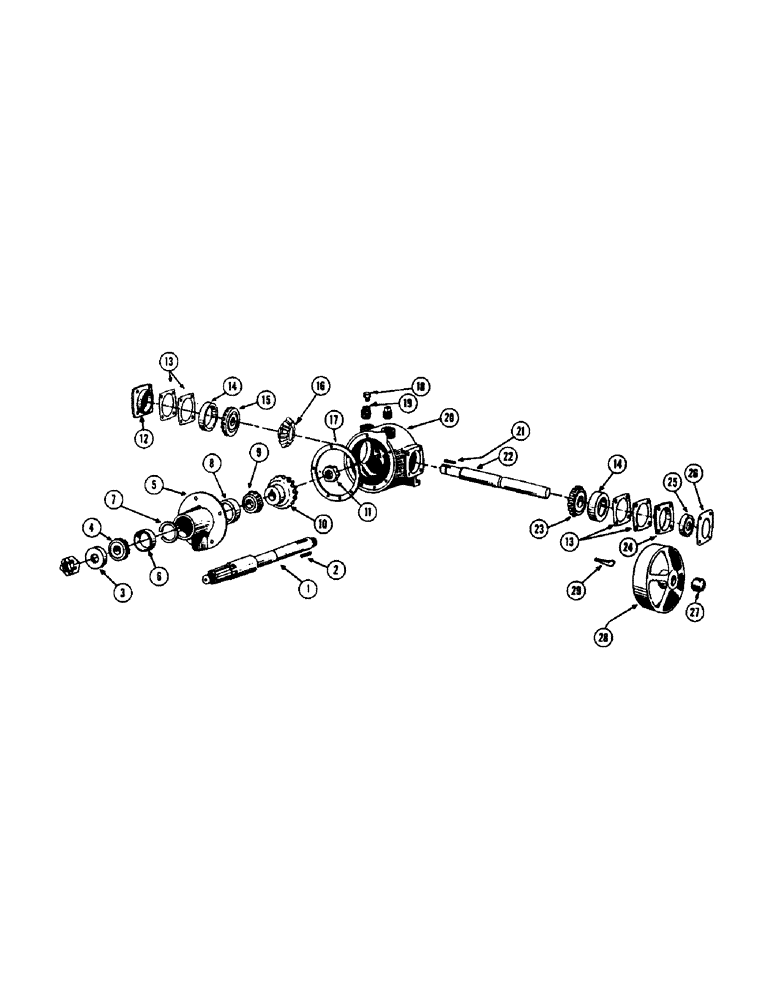

Запчасти Case IH 133 (06) - GEAR BOX, P.T.O.
№
Артикул
Название
Примечание
Количество
1
B11826
SHAFT - P.T.O.
1шт.
PIN - 1/8" x 1-1/2" cotter
1шт.
NUT - 3/4" N.C. hex. slotted
1шт.
2
O8065HT
KEY
- P.T.O. bevel gear
1шт.
3
BD3665
SEAL
- P.T.O. shaft
1шт.
4
O4302BF
BEARING, CONE
CONE - (Timken #14131) Front, P.T.O. shaft
1шт.
5
4364BFA
HOUSING - P.T.O. shaft bearing
1шт.
BOLT - 3/8" x 1" N.C. hex. w/L.W.
3шт.
BOLT - 3/8" x 1-1/4" N.C. hex. w/L.H.
2шт.
FITTING - 1/8" 90 degree Lincoln #5400
1шт.
6
VT2097
X
CUP - (Timken #14276) Front
1шт.
7
VT3522
X
SNAP RING
1шт.
8
O4300BF
ANGLE BAR
CUP - (Timken #2729) Rear
1шт.
9
O4301BF
CONE
- (Timken #2785) Rear, P.T.O. shaft
1шт.
10
T25079
GEAR
- (19T) Bevel, P.T.O. shaft
1шт.
11
O1553CH
X
NUT - (1" N.F. slotted shear) Rear, P.T.O. shaft
1шт.
12
76BF
CAP - R.H., cross shaft bearing (Closed end)
1шт.
BOLT - 5/16" x 1" N.C. hex. w/L.W.
4шт.
13
N3766
SHIM,.005" Thk
For Ref 12 and 24 caps .005" Thk
2шт.
N3767
SHIM - (.010" thick) For ref. 12 and 24 caps
6шт.
14
VT2097
X
CUP - (Timken #14276) Cross shaft
2шт.
15
O1462AB
X
CONE - (Timken #14125A) R.H., cross shaft
1шт.
16
O4353BF
PINION - (15T) Bevel, cross shaft
1шт.
17
N3768
SHIM - (.005" thick) P.T.O. shaft housing
2шт.
N3769
SHIM - (.010" thick) P.T.O. shaft housing
6шт.
18
T25082
VALVE - breather, gear box
1шт.
19
T25081
CAP - breather
1шт.
20
N31
GEAR BOX
1шт.
PLUG - 1/8" pipe
1шт.
PLUG - 1/4" pipe
1шт.
PLUG - 1" pipe
1шт.
BOLT - 5/8" x 1-3/4" N.F. hex. w/nut and L.W.
2шт.
21
O5685HT
KEY - cross shaft pinion
1шт.
22
B11816
SHAFT - cross
1шт.
23
VT2096
X
CONE - (Timken #14137A) Cross shaft
1шт.
24
77BF
CAP - L.H., cross shaft bearing (Open end)
1шт.
BOLT - 5/16" x 1" N.C. hex. w/L.W.
4шт.
25
O3868AB
OIL SEAL
- for ref. 24 cap
1шт.
26
O2276FH
WASHER - between ref. 24 cap and drive pulley
1шт.
27
B15487
CAP - for ref. 29 key
1шт.
SCREW - 1/4" x 2" machine w/L.W.
1шт.
28
B1062
PULLEY - P.T.O. drive
1шт.
29
O1899N
KEY - drive pulley
1шт.
Выбрано товаров: 43
