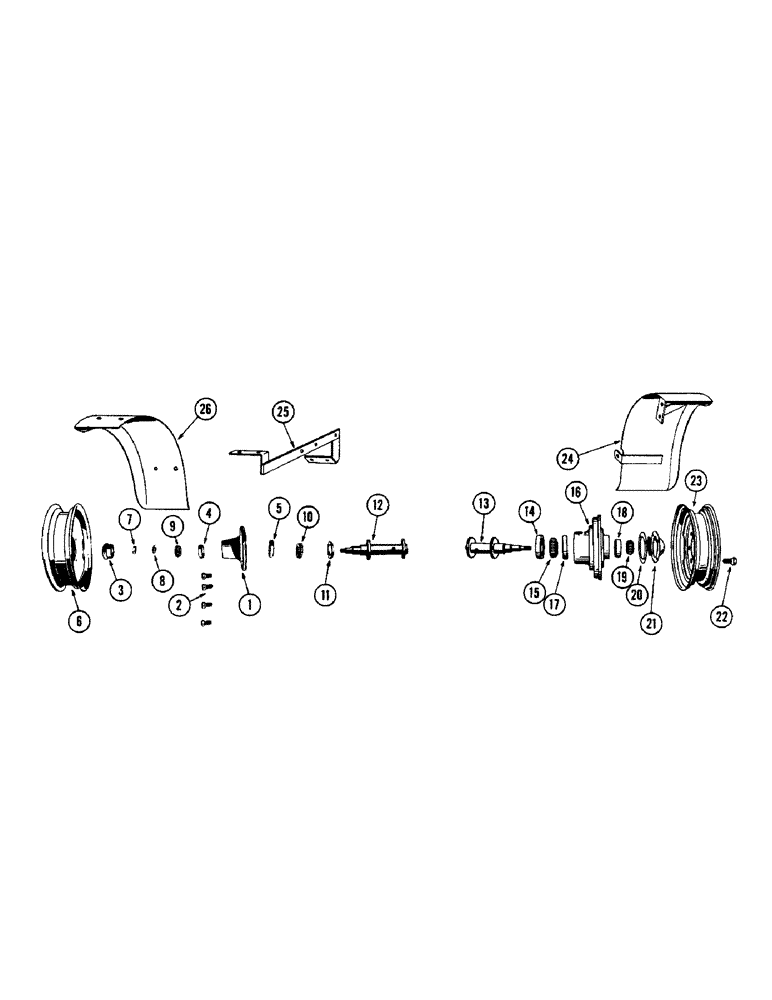

Запчасти Case IH 133 (64) - WHEELS

1

TB13283

X

HUB - R.H. wheel

1шт.

2

O4557AB

BOLT

4шт.

3

TB13280

X

CAP

1шт.

4

B12410

BEARING, CUP,1.782" OD

CUP - (Timken #11910) Outer

1шт.

5

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - (Timken #67101) Inner

1шт.

6

O2095FH

WHEEL - R.H., for 5.90 x 15 4 ply implement tire

1шт.

7

O5157AB

NUT - R.H. wheel spindle

1шт.

8

O774AB

X

WASHER - R.H. wheel spindle

1шт.

9

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - (Timken #LM11949) Outer

1шт.

10

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - (Timken #LM67048) Inner

1шт.

11

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

OIL SEAL - ref. 12 hub

1шт.

12

B11907

SPINDLE - R.H. wheel (Early production)

1шт.

PIN - 1/8" x 1" cotter

1шт.

B15890

SPINDLE - R.H. wheel (Later production)

1шт.

PIN - 1/8" x 1" cotter

1шт.

13

B11533

SPINDLE - L.H. wheel (Early production)

1шт.

NUT - 3/4" N.F. hex. slotted

1шт.

PIN - 3/8" x 1-1/4" cotter

1шт.

B15891

SPINDLE - L.H. wheel (Later production)

1шт.

NUT - 3/4" N.F. hex. slotted

1шт.

PIN - 3/8" x 1-1/4" cotter

1шт.

O1167AB

X

WASHER - L.H. wheel spindle

1шт.

14

V13924

SEAL - grease, L.H. wheel

1шт.

15

V13801

X

CONE - (Timken #14138A) Inner, L.H. wheel hub

1шт.

16

T25841

HUB - L.H. wheel

1шт.

17

O1461AB

X

CUP - (Timken #14274) Inner

1шт.

18

VT2214

X

CUP - (Timken #O9195) Outer

1шт.

19

MT2224S

X

CONE - (Timken #O9081) Outer, L.H. wheel hub

1шт.

20

V13913

X

GASKET - hub cap, L.H. wheel

1шт.

21

V13878

CAP - hub, L.H. wheel

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. w/L.W.

4шт.

22

O30739HT

X

BOLT - L.H. wheel hub

6шт.

23

V13989

GEAR

WHEEL - L.H., for 6.70 x 15 6 ply implement tire

1шт.

24

B15611

FENDER - L.H.

1шт.

PIN - 3/16" x 1" cotter

1шт.

T19468

BOLT - (3/8" x 1" #3 plow w/hex. nut) Ref. 24 fender

2шт.

LOCKWASHER - 3/8"

2шт.

25

B15610

SUPPORT - R.H. fender

1шт.

SCREW - 5/16" x 5/8" N.C. rhd. mach. w/nut and L.W.

4шт.

26

B15616

FENDER - R.H.

1шт.
