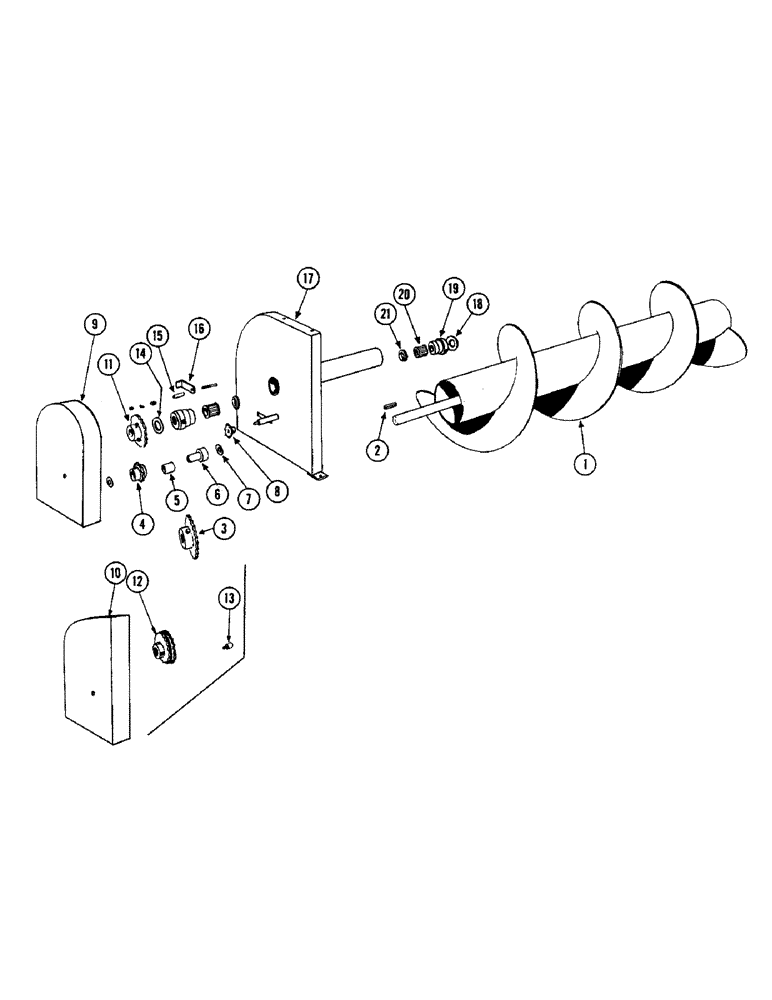

Запчасти Case IH 133 (60) - AUGER AND AUGER DRIVE

1

B11079

AUGER

1шт.

2

O5685HT

KEY - auger drive sprocket

1шт.

3

B11672

SPROCKET - (33T) Auger drive

1шт.

SCREW - 3/8" x 1/2" N.C. sq. hd. cup pt. set

2шт.

B15850

CHAIN - auger drive (NSS-see page 3)

1шт.

4

A491NA

SPROCKET - (12T) Idler, auger drive chain

1шт.

FITTING - 1/8" str. Lincoln #5000

1шт.

5

F40529

BUSHING

1шт.

6

B11676

STUD - idler sprocket

1шт.

BOLT - 1/2" x 3-1/2" carr. w/nut and L.W.

1шт.

WASHER - 1/2" flat

1шт.

7

195-2514

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

- idler sprocket

1шт.

8

4363A

NUT - hand, chain guard

1шт.

9

B11677

GUARD - auger drive chain

1шт.

10

B15826

GUARD - auger drive chain (Used with feeder assist attachment)

1шт.

11

B11674

SPROCKET - (20T) Auger driven

1шт.

SCREW - 3/8" x 1/2" N.C. cup pt. set

2шт.

12

B15813

SPROCKET - (20T) Auger driven (Used with feeder assist attachment)

1шт.

SCREW - 3/8" x 1/2" Allen hd. cup pt. set

2шт.

13

B15799

STUD - guard adapter (Used with feeder assist attachment)

1шт.

14

O1160CH

X

WASHER - auger shaft

1шт.

15

153EB

SPRING - twine box cover strap

1шт.

16

B11098

STRAP - hold-up, twine box cover

1шт.

17

B11681

PLATE - auger bearing

1шт.

WASHER - 5/16" flat

1шт.

BOLT - 3/8" x 1" carr. w/nut and L.W.

1шт.

BOLT - 5/16" x 2" N.F. hex. w/nut

1шт.

BOLT - 3/8" x 3/4" N.F. hex. w/nut and L.W.

1шт.

BOLT - 3/8" x 1" N.F. hex. w/nut and L.W.

2шт.

BOLT - 1/4" x 3/4" N.F. hex. w/nut and L.W.

1шт.

18

B11097

WASHER - auger bearing tube

1шт.

19

645CHA

BEARING - auger, w/housing

2шт.

FITTING - 1/8" str. Lincoln #5000

2шт.

20

O1691CH

BEARING - (Hyatt #94732)

1шт.

21

O1543CH

WASHER - retainer

1шт.
