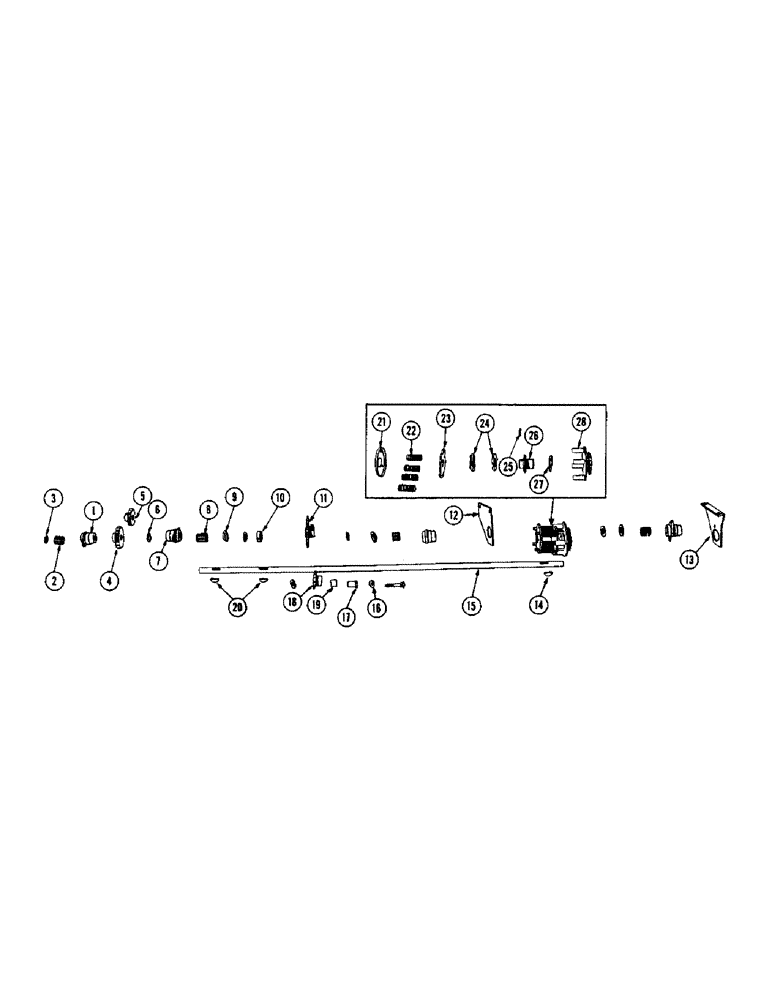

Запчасти Case IH 133 (58) - INTERMEDIATE SHAFT, PICKUP AND AUGER DRIVE

1

426NA

BEARING - L.H. end, w/housing

1шт.

FITTING - 1/8" 90 degree Lincoln #5400

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/dbl. nut

3шт.

2

O319CH

BEARING - (Hyatt #94632)

1шт.

3

O2228N

PLUG

1шт.

4

B11911

GEAR - (19T) Reduction, front

1шт.

5

B11924

GEAR - (15T) Reduction, rear

1шт.

6

O45FG

WASHER - spacing, shaft

1шт.

7

140CHA

BEARING - w/housing

3шт.

FITTING - 1/8" str. Lincoln #5000

1шт.

FITTING - 1/8" 90 degree Lincoln #5400

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/dbl. nut

1шт.

8

O319CH

BEARING

1шт.

9

O8CH

CAP

1шт.

10

O2027N

COLLAR

1шт.

SCREW - 1/2" x 1/2" N.C. sq. hd. cup pt. set

1шт.

11

B11566

SPROCKET - (29T) Drive, pickup rake

1шт.

SCREW - 3/8" x 3/8" N.C. sq. hd. cup pt. set

2шт.

12

B11658

PLATE - bearing, right of jump clutch

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/nut and L.W.

3шт.

13

B11657

PLATE - inner ref. 7 bearing

1шт.

14

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

Ref. 11 sprocket to shaft #28, 5/16" x 2 1/8"

1шт.

15

B15475

SHAFT - intermediate

1шт.

16

195-2514

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

- ref. 18 sprocket

1шт.

17

B11671

STUD - ref. 18 sprocket

1шт.

18

B11738

SPROCKET - (15T) Tightener, rake drive chain

1шт.

FITTING - 1/8" str. Lincoln #5000

1шт.

BOLT - 5/8" x 3" carr. w/jam nut and L.W.

1шт.

19

F40529

BUSHING

1шт.

20

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

Ref. 4 and 5 gears to shaft #28, 5/16" x 2 1/8"

2шт.

B11906

SPACER - reduction gear

1шт.

21

O74FH

COVER - spring JUMP CLUTCH-PICKUP AND AUGER DRIVE

1шт.

22

O30121HT

SPRING - jump clutch JUMP CLUTCH-PICKUP AND AUGER DRIVE

4шт.

23

O72FH

PLATE - clutch JUMP CLUTCH-PICKUP AND AUGER DRIVE

1шт.

BOLT - 3/8" x 5-1/2" carr. w/dbl. nut JUMP CLUTCH-PICKUP AND AUGER DRIVE

4шт.

WASHER - 3/8" flat JUMP CLUTCH-PICKUP AND AUGER DRIVE

4шт.

24

T16665

RING - clutch JUMP CLUTCH-PICKUP AND AUGER DRIVE

2шт.

25

138-176

LOCK PIN,3/8" x 1 3/4", Slotted

Pin, , ref. 26 hub jump clutch-pickup and auger drive 3/8" x 1 3/4", Slotted

1шт.

26

B11662

HUB - jump clutch JUMP CLUTCH-PICKUP AND AUGER DRIVE

1шт.

27

O73FH

WASHER JUMP CLUTCH-PICKUP AND AUGER DRIVE

1шт.

28

B11663

SPROCKET - (20T) Jump clutch JUMP CLUTCH-PICKUP AND AUGER DRIVE

1шт.
