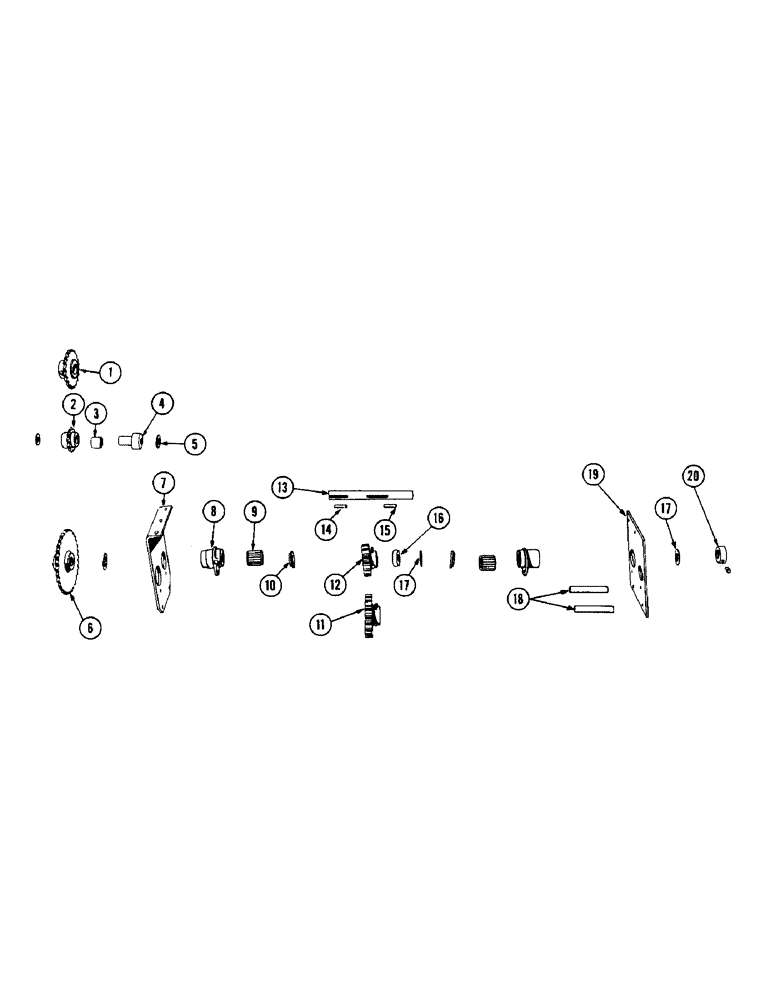

Запчасти Case IH 133 (56) - REDUCTION GEAR BOX

1

B11674

SPROCKET - (20T) Driven, auger

1шт.

2

A491NA

SPROCKET - (12T) Idler, auger drive chain

1шт.

FITTING - 1/8" str. Lincoln #5000

1шт.

3

F40529

BUSHING

1шт.

4

B11676

STUD - idler sprocket

1шт.

BOLT - 1/2" x 3-1/2" carr. bolt w/nut and L.W.

1шт.

WASHER - 1/2" flat

1шт.

5

195-2514

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

- idler sprocket

1шт.

6

B11672

SPROCKET - (33T) Drive, auger

1шт.

B15850

CHAIN - auger drive (NSS-see page 3)

1шт.

7

B11655

PLATE - outer R.H., reduction gear box

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. w/nut and L.W.

1шт.

BOLT - 3/8" x 1" N.F. hex. w/nut and L.W.

3шт.

WASHER - 3/8" flat

3шт.

8

142CHA

BEARING - reduction gear shaft, with housing

2шт.

FITTING - 1/8" str. Lincoln #5000

2шт.

9

O317CH

BEARING (Hyatt #94526)

1шт.

10

O6CH

WASHER

CAP

1шт.

11

B11911

GEAR - (19T) Reduction, front - intermediate shaft

1шт.

12

B11924

GEAR - (15T) Reduction, rear - reduction shaft

1шт.

13

B11661

SHAFT - reduction gear

1шт.

14

O2227CH

KEY

- ref. 6 sprocket to reduction shaft

1шт.

15

O3312AB

KEY

- ref. 12 gear to reduction shaft

1шт.

16

B11906

SPACER - rear, reduction gear

1шт.

17

O46FG

WASHER - spacing, reduction gear shaft

4шт.

18

B15617

SPACER - inner and outer, reduction gear plates

2шт.

19

B11654

PLATE - inner R.H., reduction gear box

1шт.

BOLT - 3/8" x 5-3/4" N.C. hex. w/nut and L.W.

2шт.

WASHER - 3/8" flat

4шт.

20

O2520AB

COLLAR - intermediate shaft

1шт.

SCREW - 3/8" x 1/2" Allen hd. cup pt. set screw

1шт.
