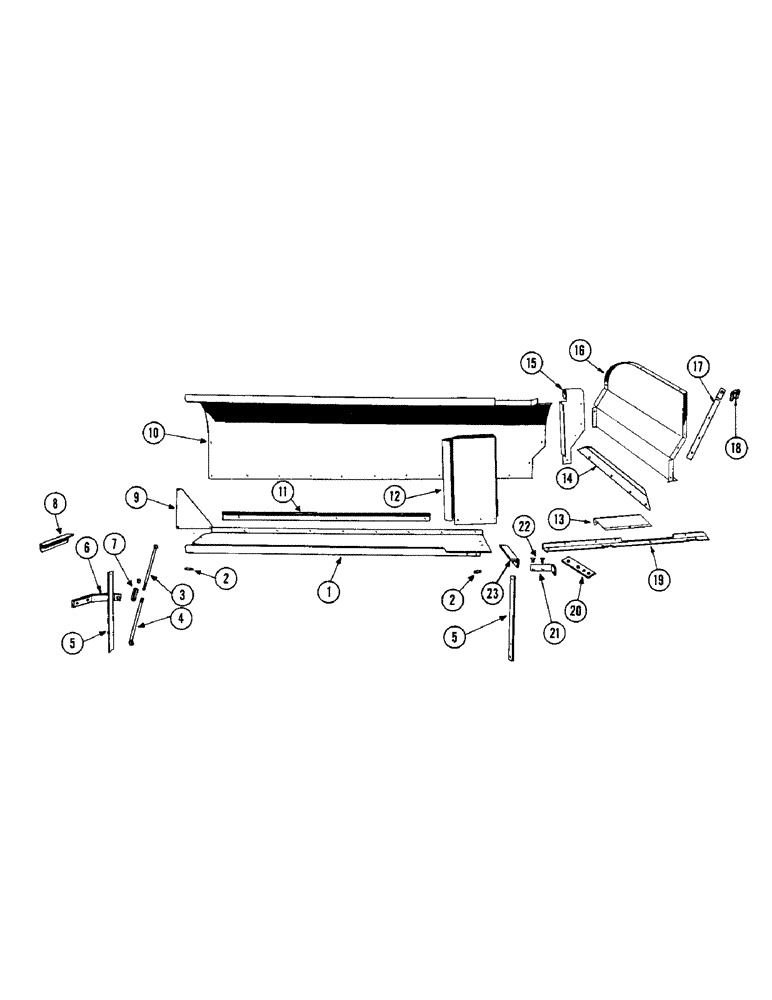

Запчасти Case IH 133 (54) - FEEDER DECK

1

B11646

FLOOR - feeder deck

1шт.

BOLT - 3/8" x 1-1/4" carr. w/nut and L.W.

4шт.

BOLT - 3/8" x 3/4" N.F. hex. w/nut and L.W.

2шт.

SCREW - 1/2" x 1-1/2" N.C. flat hd. mach. w/nut and L.W.

1шт.

BOLT - 3/8" x 1" N.F. hex. w/nut and L.W.

2шт.

2

B11603

SPACER - feeder sill

2шт.

3

B11142

SUPPORT - rear sill, R.H. thrd.

2шт.

NUT - 5/8" N.C. hex. jam

2шт.

4

B11143

SUPPORT - rear sill, L.H. thrd.

2шт.

5

B11598

SUPPORT - front sill

2шт.

BOLT - 1/2" x 1-1/4" N.F. hex. w/nut and L.W.

3шт.

BOLT - 1/2" x 1-1/2" N.F. hex. w/nut and L.W.

1шт.

BOLT - 1/2" x 1-3/4" N.F. hex. w/nut and L.W.

2шт.

6

B11611

SUPPORT - R.H. end, twine box

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. w/nut and L.W.

1шт.

WASHER - 1/2" flat

3шт.

7

O4215N

TURNBUCKLE - rear sill supports

2шт.

8

B11600

SILL - R.H.

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/nut and L.W.

3шт.

WASHER - 3/8" flat

3шт.

9

B11692

GUSSET - rear angle

1шт.

10

B15604

SHEET - rear

1шт.

BOLT - 1/4" x 1/2" carr. w/nut and L.W.

7шт.

BOLT - 1/4" x 3/4" carr. w/nut and L.W.

1шт.

BOLT - 1/2" x 1/2" N.F. hex. w/nut and L.W.

7шт.

11

B11604

ANGLE - twine box support

1шт.

12

B15514

SHEET - flare, feeder front

1шт.

SCREW - 5/16" x 1/2" N.C. rhd. mach. w/nut and L.W.

2шт.

13

B15642

PLATE - clean-out, feeder house

1шт.

SCREW - 1/4" x 3/4" N.C. rhd. mach. w/nut and L.W.

2шт.

SCREW - 5/16" x 3/4" N.C. rhd. mach. w/nut and L.W.

1шт.

14

B15777

SHIELD - plunger

1шт.

15

B15601

SHEET - filler, L.H. end

1шт.

BOLT - 5/16" x 5/8" N.F. hex. w/nut and L.W.

2шт.

16

B15602

FRAME - L.H. end

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. w/nut and L.W.

2шт.

BOLT - 3/8" x 1" N.F. hex. w/nut and L.W.

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/nut and L.W.

1шт.

17

B15869

STRAP - warning lamp

1шт.

SCREW - 1/4" x 1" N.C. rhd. mach. w/nut and L.W.

1шт.

SCREW - 5/16" x 1" N.C. rhd. mach. w/nut and L.W.

2шт.

18

A8179

SOCKET

- warning lamp

1шт.

BOLT - 7/16" x 1" carr. w/nut and L.W.

1шт.

19

B15470

ANGLE - L.H. end, front

1шт.

SCREW - 5/16" x 5/8" N.C. rhd. mach. w/nut and L.W.

4шт.

SCREW - 5/16" x 3/4" N.C. rhd. mach. w/nut and L.W.

2шт.

20

B11096

FILLER - under floor

1шт.

SCREW - 3/8" x 1-1/4" N.C. flat hd. mach. w/nut and L.W.

2шт.

BOLT - 3/8" x 1" N.C. hex. w/nut and L.W.

1шт.

21

B11686

BRACKET - support, front L.H.

1шт.

22

T19473

PLOW BOLT

BOLT - (3/8" x 1-1/2" #3 plow w/nut) For ref. 21 bracket

2шт.

LOCKWASHER - 3/8"

2шт.

23

B11601

SILL - front

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/nut, L.W. and fl. wshr.

3шт.
