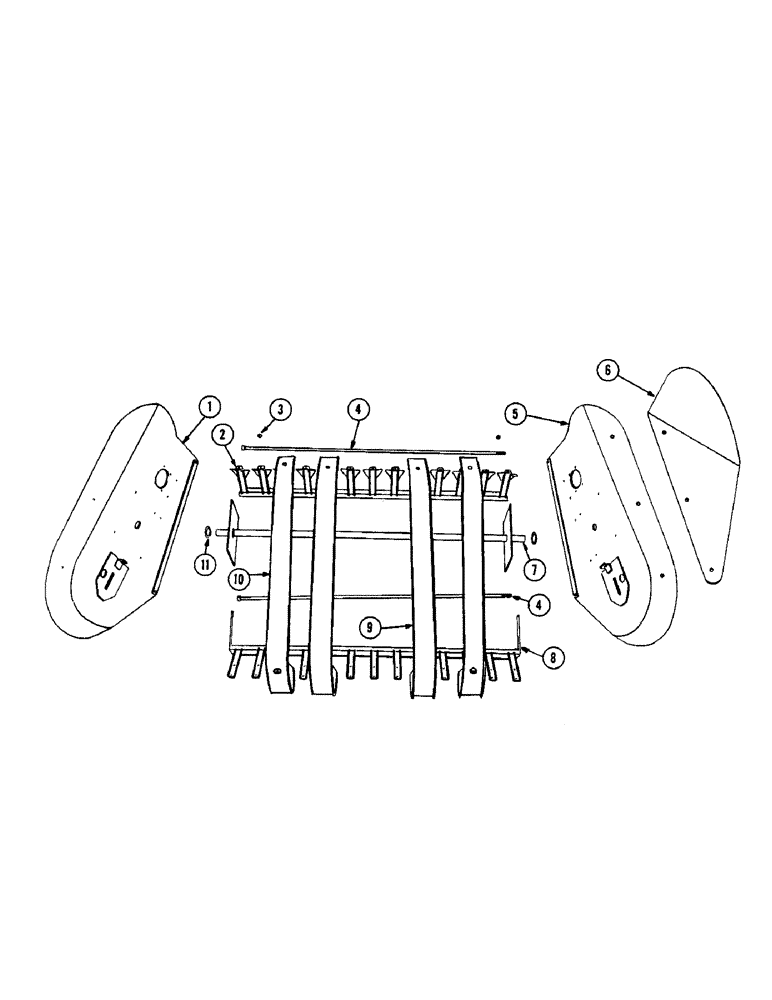

Запчасти Case IH 133 (52) - PICKUP FLARE SHEET AND STRIPPERS

1

B11542

FLARE SHEET - R.H.

1шт.

BOLT - 5/16" x 1" carr bolt w/nut and L.W.

4шт.

2

B11758

BRACKET - upper, stripper

1шт.

3

B11590

SPACER - stripper

2шт.

4

B11757

BOLT - flare sheet

2шт.

NUT - 5/8" N.F. hex. and L.W.

2шт.

5

B11543

FLARE SHEET - L.H.

1шт.

BOLT - 5/16" x 1" carr. w/nut and L.W.

4шт.

6

B15488

EXTENSION - L.H. flare sheet

1шт.

7

B11551

ARM - flare sheet

1шт.

BOLT - 5/16" x 3/4" carr. w/nut and L.W.

4шт.

PIN - 3/16" x 2" cotter

4шт.

8

B11759

BRACKET - lower, stripper

1шт.

SCREW - 5/16" x 1" N.C. rhd. mach. w/nut and L.W.

2шт.

9

B11591

STRIPPER

11шт.

BOLT - 5/16" x 5/8" carr. w/nut and L.W.

39шт.

10

B11901

STRIPPER - with hole for lubrication

2шт.

11

O5409HT

WASHER - spacer, flare sheet

4шт.
