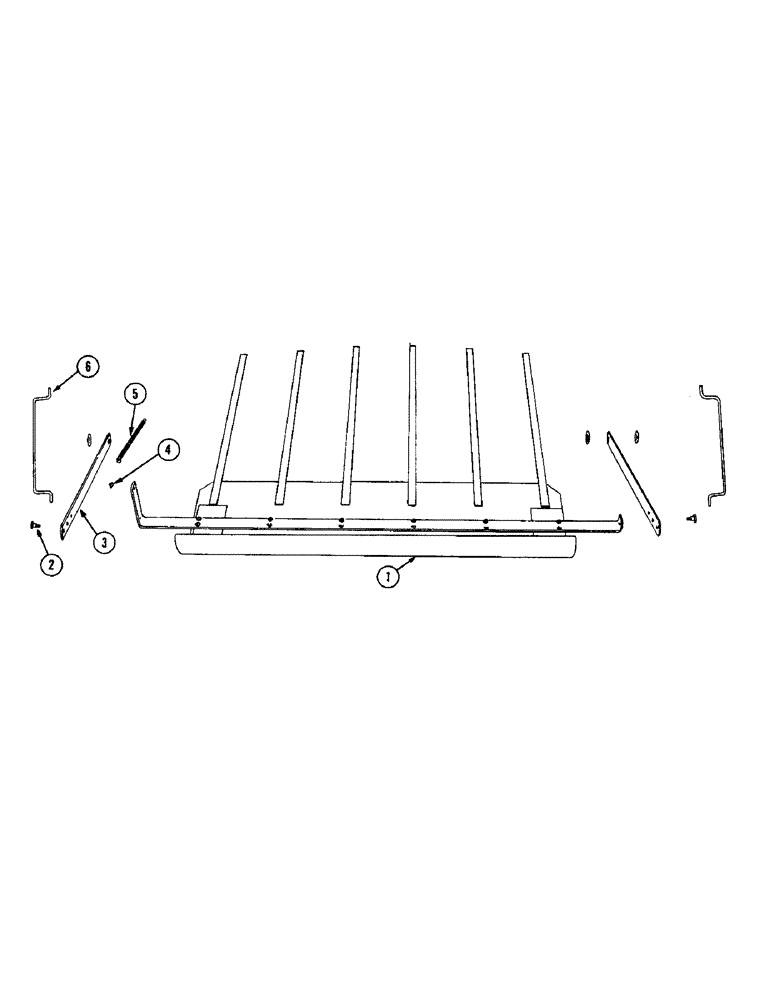

Запчасти Case IH 133 (52[A]) - PICKUP WIND GUARD

1

B11872

WIND GUARD

1шт.

2

O156CB

BOLT - shoulder, wind guard pivot

2шт.

NUT - 3/8" N.C. hex. and L.W.

2шт.

WASHER - 3/8" flat

2шт.

3

B11609

ARM - wind guard

2шт.

4

O2325N

HOOK - spring

1шт.

SCREW - 5/16" x 3/4" N.C. rhd. mach. screw w/nut and L.W.

1шт.

5

O2678N

SPRING

- wind guard

1шт.

6

B11610

GUIDE - arm

2шт.

SCREW - 5/16" x 3/4" N.C. rhd. mach. w/nut and L.W.

2шт.

SCREW - 5/16" x 1" N.C. rhd. mach. w/nut and L.W.

2шт.

WASHER - 5/16" flat

4шт.
