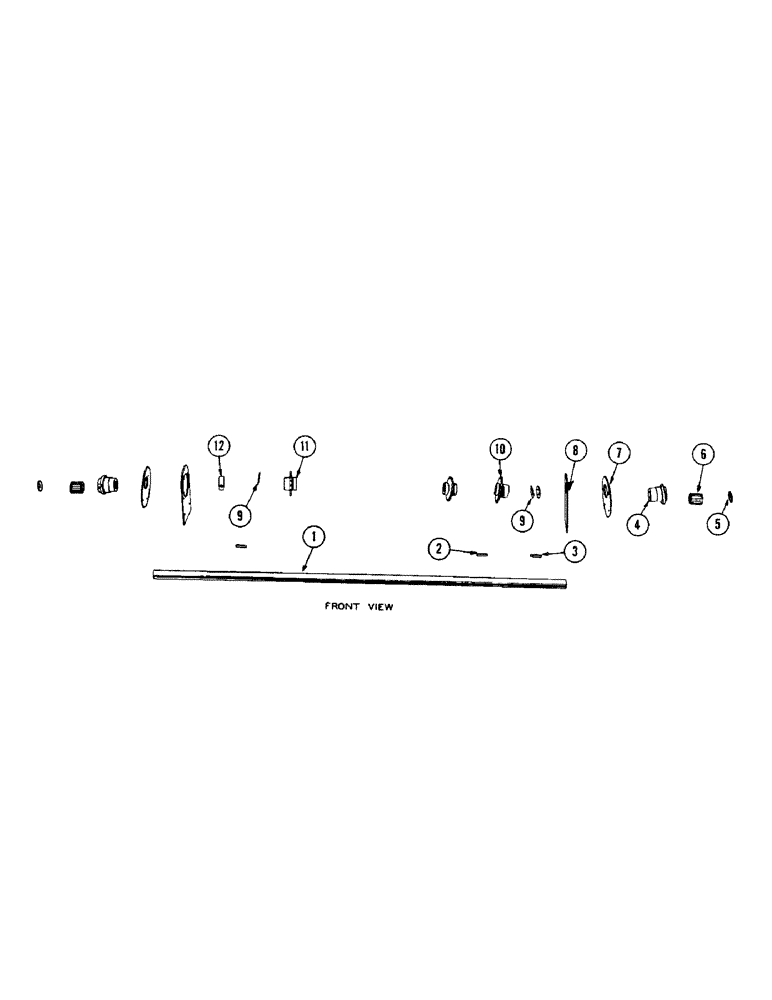

Запчасти Case IH 133 (50) - PICKUP UPPER SHAFT

1

B11562

SHAFT - upper, pickup

1шт.

2

O5685HT

KEY - for ref. 11 sprockets

2шт.

3

O5686HT

KEY - for ref. 10 sprockets

1шт.

4

426NA

BEARING - with housing

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/dbl. jam nut

2шт.

FITTING - 1/8" str. Lincoln #5000

1шт.

FITTING - 1/8" 90 degree Lincoln #5400

1шт.

5

O2228N

PLUG

1шт.

6

O319CH

BEARING - Hyatt #94632

1шт.

7

B11561

WASHER - bearing

2шт.

8

B11560

PLATE - bearing

2шт.

BOLT - 3/8" x 1" carr. w/nut and L.W.

8шт.

9

O45FG

WASHER - upper shaft

4шт.

10

B11669

SPROCKET - (19T) Drives upper shaft

1шт.

SCREW - 3/8" x 1/2" N.C. sq. hd. cup pt. set

2шт.

B15849

CHAIN - pickup rake drive (NSS-see page 3)

1шт.

11

B11563

SPROCKET - (17T) Rake drive

2шт.

SCREW - 5/16" x 3/8" N.C. sq. hd. cup pt. set

2шт.

SCREW - 5/16" x 1/2" N.C. sq. hd. cup pt. set

2шт.

12

O2027N

COLLAR - upper shaft

1шт.

SCREW - 1/2" x 1/2" N.C. sq. hd. cup pt. set

1шт.
