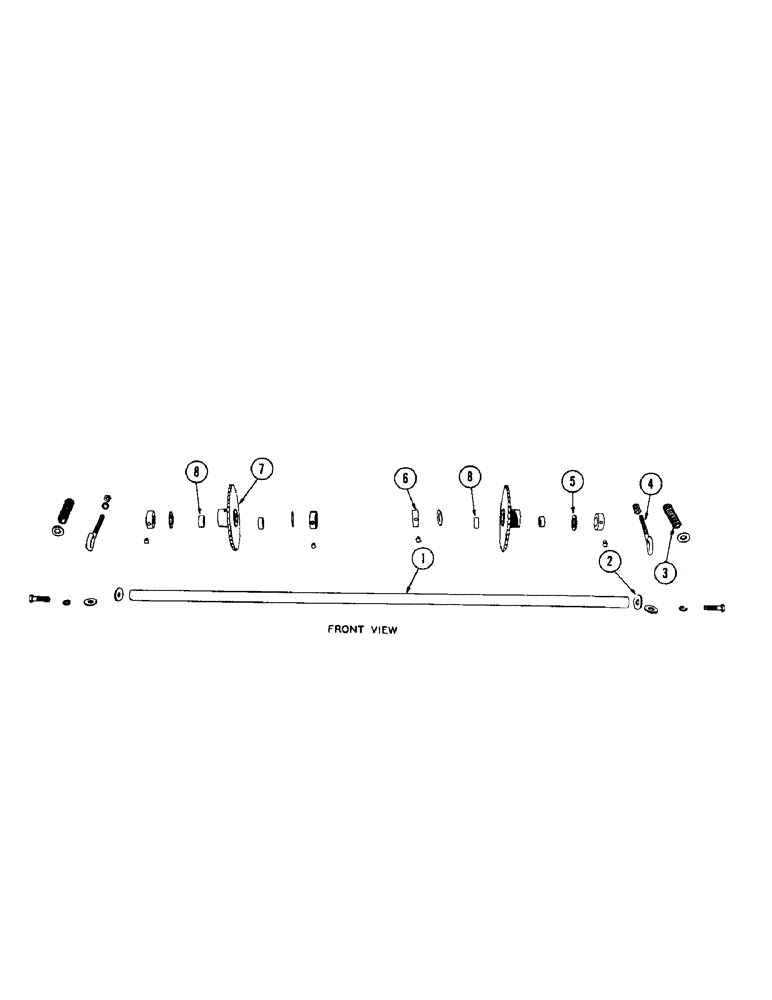

Запчасти Case IH 133 (50[A]) - PICKUP LOWER SHAFT

1

B11576

SHAFT - lower, pickup

1шт.

BOLT - 1/2" x 1-3/4" N.F. hex. w/L.W.

2шт.

WASHER - 1/2" flat

2шт.

2

O1288TS

WASHER - between lower shaft and flare sheets

2шт.

3

O5516N

SPRING - for ref. 4 eyebolt

2шт.

4

B11577

EYEBOLT - lower shaft

2шт.

NUT - 1/2" N.C. hex. jam

4шт.

WASHER - 1/2" flat

2шт.

5

O45FG

WASHER - lower shaft

4шт.

6

O2027N

COLLAR - lower shaft

4шт.

SCREW - 1/2" x 1/2" N.C. sq. hd. cup pt. set

4шт.

7

B11569

SPROCKET - (36T) Rake

2шт.

FITTING - 1/8" str. Lincoln #5000

2шт.

8

B11747

BUSHING

2шт.
