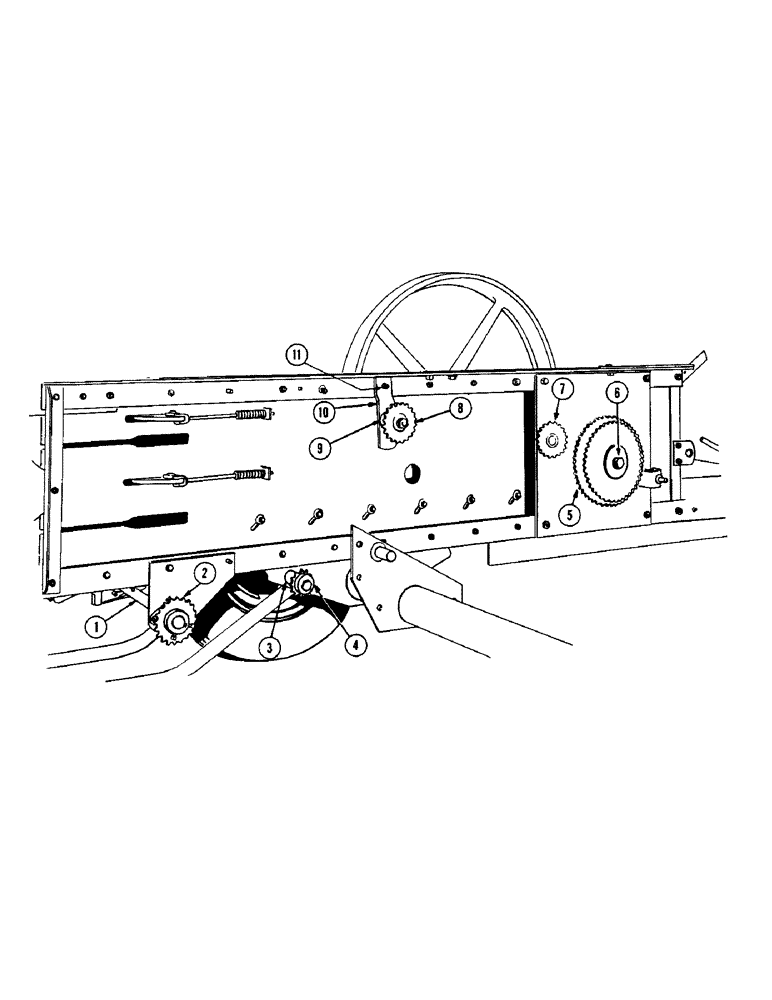

Запчасти Case IH 133 (48) - PICKUP DRIVE

1

B11410

SHAFT - cross, knotter drive

1шт.

2

B11643

SPROCKET - (20T) Knotter drive

1шт.

SCREW - 3/8" x 1/2" N.C. sq. hd. cup pt. set

2шт.

3

B11406

STUD - rear idler

1шт.

BOLT - 5/8" x 4-1/2" N.F. hex. w/nut and L.W.

1шт.

WASHER - 5/8" flat

1шт.

4

A491NA

SPROCKET - rear idler

1шт.

FITTING - 1/8" str. Lincoln #5000

1шт.

F40529

BUSHING

1шт.

5

B11935

SPROCKET - (42T-50T) Pickup and knotter drive

1шт.

B11653

KEY - crankshaft sprocket

1шт.

B11937

CHAIN - drives pickup and knotter (NSS-see page 3)

1шт.

6

B11777

WASHER - ref. 5 sprocket

1шт.

REF#6 FOR THE PICK-UP RAKE APPLICATION-P/N 204EB HAS BEEN REPLACED BY P/N T25067 PER NOTE IN HARDCOPY OF PARTSBOOK. JBEDFORD 5/22/96.

1шт.

7

B11745

SPROCKET - (20T) Tightener, pickup drive chain

1шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

1шт.

F40529

BUSHING

1шт.

8

B11745

SPROCKET - (20T) Tightener, knotter drive chain

1шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

1шт.

F40529

BUSHING

1шт.

9

B11742

STUD - tightener sprocket

1шт.

BOLT - 5/8" x 4" carr. bolt w/dbl. nut and L.W.

1шт.

WASHER - 5/8" flat

1шт.

10

B11746

ARM - tightener sprocket

1шт.

11

T19473

PLOW BOLT

BOLT - (3/8" x 1-1/2" #3 plow w/nut) Ref. 10 arm

1шт.

LOCKWASHER - 3/8"

1шт.

B11570

CHAIN - rake (NSS-see page 3)

2шт.
