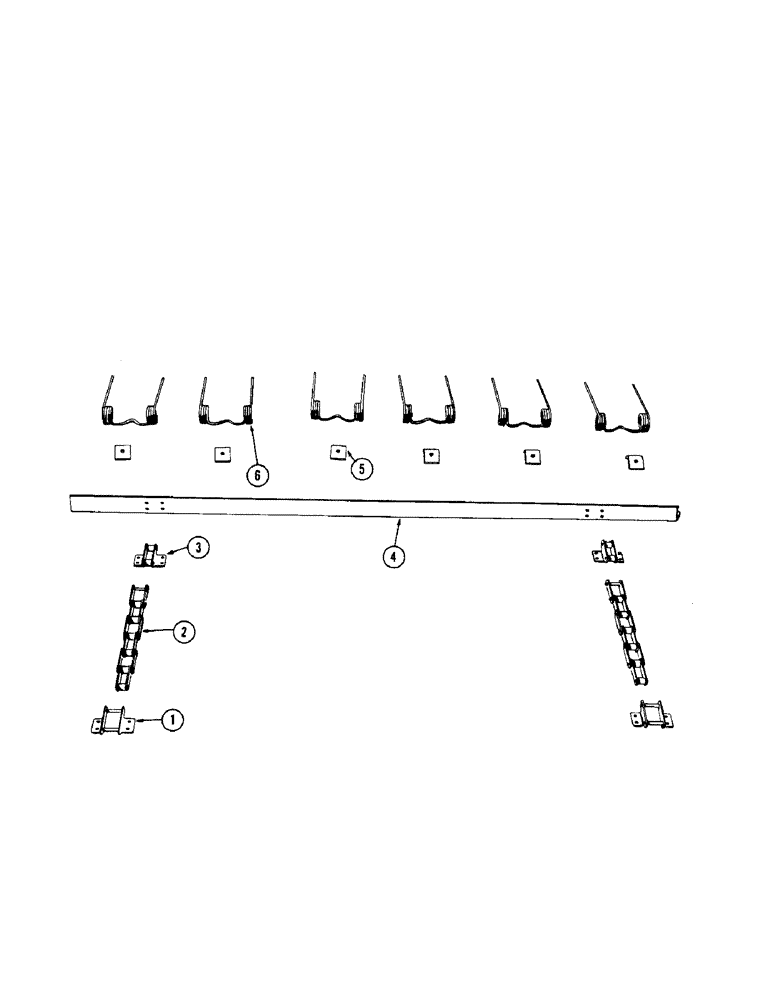

Запчасти Case IH 133 (48[A]) - PICKUP RAKE

1

B12538

LINK - conn. attachment

4шт.

2

B12520

CHAIN (AG)

CHAIN - contains 6 roller links

7шт.

3

B12539

CHAIN - roller attachment

3шт.

B12521

LINK

- connecting

1шт.

4

B11578

BAR - tine

7шт.

RIVET - 3/16" x 1/2" rhd. (See Z1645)

56шт.

5

B11581

CLIP - tooth fastening

42шт.

BOLT - 1/4" x 1" N.F. hex. w/nut and L.W.

42шт.

6

204EB

TOOTH - spring, tine bar

42шт.

Z1645

RIVET - (3/16" x 1/2" oval hd.) For tine bar to chain attachment link (1 lb. pkg.)

1шт.

FOOTNOTE

1шт.
