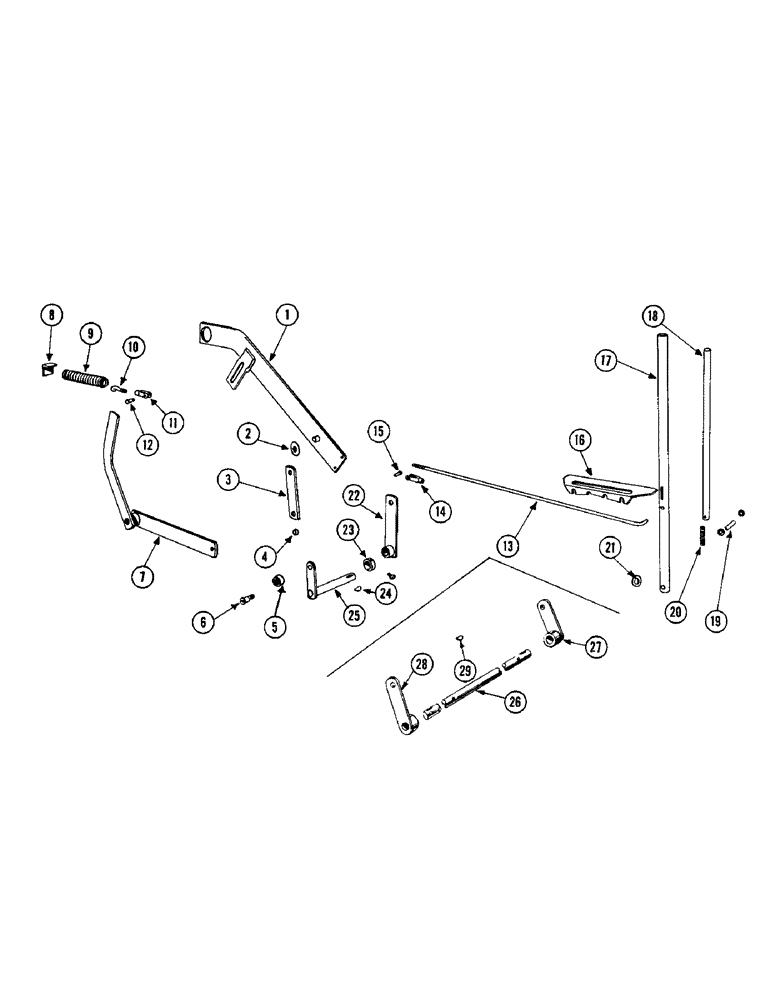

Запчасти Case IH 133 (46) - PICKUP LIFT CONTROL

1

B11554

ARM - R.H., pickup pivot

1шт.

PIN - 3/16" x 1-1/4" cotter

1шт.

SCREW - 3/8" x 1-1/4" N.C. flat hd. mach.

1шт.

WASHER - 5/8" flat

1шт.

B11555

ARM - L.H. pickup pivot

1шт.

PIN - 3/16" x 1-1/4" cotter

1шт.

SCREW - 3/8" x 1-1/4" N.C. flat hd. mach.

1шт.

WASHER - 5/8" flat

1шт.

2

O46FG

WASHER - lift arms

2шт.

3

B11597

STRAP - pickup lift

2шт.

BOLT - 9/16" x 1-1/2" N.F. hex. w/nut and L.W.

2шт.

WASHER - 9/16" flat

2шт.

4

H1801S

SPACER - pickup lift strap

2шт.

5

B11700

ROLLER - lift

2шт.

6

O5732HT1

BOLT - shoulder, lift roller

2шт.

NUT - 1/2" N.C. hex. and L.W.

2шт.

7

B11592

ARM - R.H., pickup lift

1шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

1шт.

B11593

ARM - L.H., pickup lift

1шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

1шт.

8

B11599

CLIP - pickup lift spring

2шт.

BOLT - 1/2" x 1-3/4" N.F. hex. w/nut and L.W.

2шт.

9

65EB

SPRING - pickup lift

2шт.

10

B11602

EYEBOLT - lift arm spring

2шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - spring eyebolt

2шт.

12

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Eyebolt clevis 3/8" x 1.060"

2шт.

PIN - 3/32" x 3/4" cotter

2шт.

13

B11710

ROD - lift

1шт.

PIN - 3/8" x 3/4" cotter

1шт.

WASHER - 3/8" flat

1шт.

14

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - lift rod

1шт.

15

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Lift rod 3/8" x 1.060"

1шт.

PIN - 3/32" x 3/4" cotter

1шт.

16

B11752

BRACKET - lift handle

1шт.

BOLT - 3/8" x 1" N.F. hex. w/nut and L.W.

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/nut and L.W.

1шт.

17

B11706

HANDLE - lift

1шт.

18

B11792

ROD - catch, lift handle

1шт.

19

B11750

PIN - catch, lift handle

1шт.

PIN - 1/8" x 3/4" cotter

2шт.

WASHER - 3/8" flat

2шт.

20

O915AB

SPRING - catch, lift handle

1шт.

21

O774AB

X

WASHER - lift handle

1шт.

22

B11701

ARM - lift roller

1шт.

BOLT - 1/4" x 2" N.F. hex. w/nut and L.W.

1шт.

23

O2520AB

COLLAR - ref. 25 lift shaft (Early production)

1шт.

SCREW - 3/8" x 1/2" Allen hd. cup pt. set

1шт.

24

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 22 lift arm #A, 1/4" x 7/8", HT

1шт.

25

B11696

SHAFT - lift (Early production)

1шт.

26

B15836

SHAFT - lift (Later production)

1шт.

27

B15834

ARM - L.H., lift roller (Later production)

1шт.

BOLT - 1/4" x 2" N.F. hex. w/nut and L.W.

1шт.

28

B15835

ARM - R.H., lift roller (Later production)

1шт.

BOLT - 1/4" x 1/2" N.F. hex. w/nut and L.W.

1шт.

29

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 27 and 28 arms #A, 1/4" x 7/8", HT

2шт.
