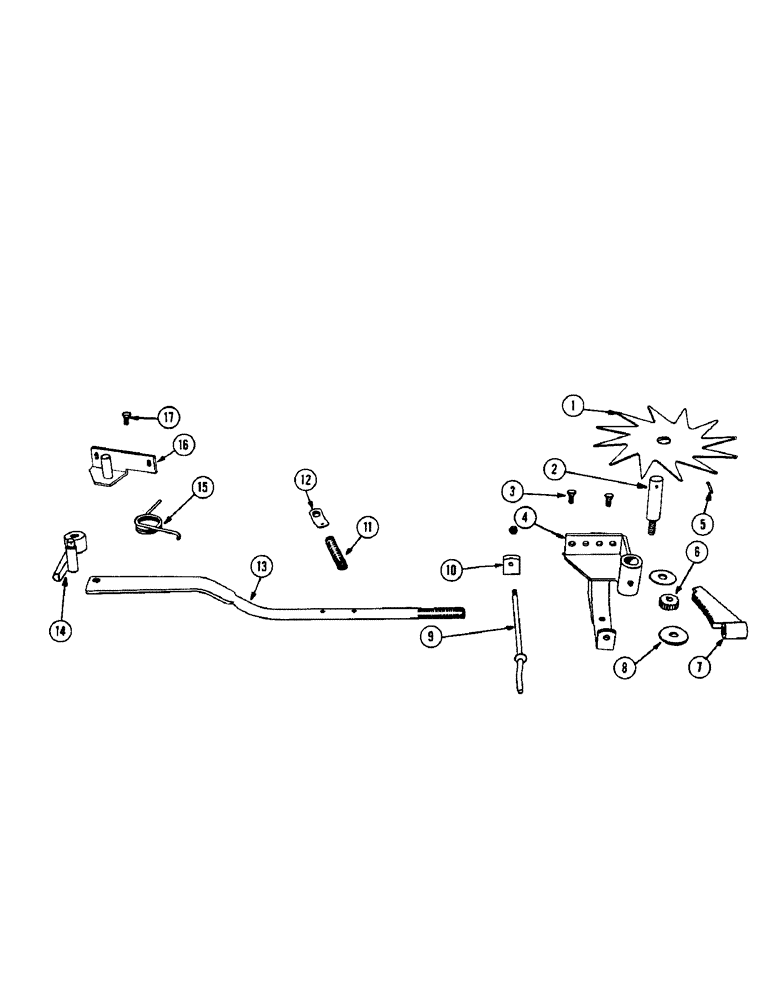

Запчасти Case IH 133 (44) - STAR WHEEL

1

B11260

STAR WHEEL

1шт.

2

B11244

SHAFT - star wheel

1шт.

NUT - 1/2" N.F. hex. and L.W.

1шт.

3

T19468

BOLT - (3/8" x 1" #3 plow w/nut) Ref. 4 bearing

2шт.

LOCKWASHER - 3/8"

2шт.

4

B15517

BEARING - star wheel

1шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

1шт.

5

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, , Ref. 1 wheel 3/16" x 1 1/2", Slotted

1шт.

6

B11245

GEAR - (20T) Bale length

1шт.

KEY - #3 Woodruff key

1шт.

7

B11252

RACK - trip head, for bale length

1шт.

8

B15606

WASHER

- star wheel guide

2шт.

9

B15521

CRANK - adjusting, bale length

1шт.

NUT - 3/8" N.C. hex.

1шт.

PIN - 1/8" x 7/8" cotter

1шт.

WASHER - 7/16" flat

1шт.

10

B15424

NUT - gauge

1шт.

11

O4832N

SPRING - tension, bale length rod

1шт.

12

O2532AB

SPRING - ref. 11 spring

1шт.

13

B15530

ROD - bale length

1шт.

NUT - 3/4" N.F. hex.

1шт.

PIN - 3/16" x 1-1/4" cotter

1шт.

14

B15522

LATCH PIN

1шт.

FITTING - 1/4" 28 thrd. 90 degree Lincoln #5410

1шт.

PIN - 3/32" x 1" cotter

1шт.

PIN - 1/8" x 1-1/2" cotter

1шт.

15

B11250

SPRING - tension, latch pin

1шт.

16

B15526

BRACKET - pivot, latch pin

1шт.

WASHER - 3/4" flat

1шт.

PIN - 1/8" x 1-1/4" cotter

1шт.

17

T19471

PLOW BOLT

BOLT - (3/8" x 1-1/4" #3 plow w/nut) Ref. 16 bracket

2шт.

LOCKWASHER - 3/8"

2шт.
