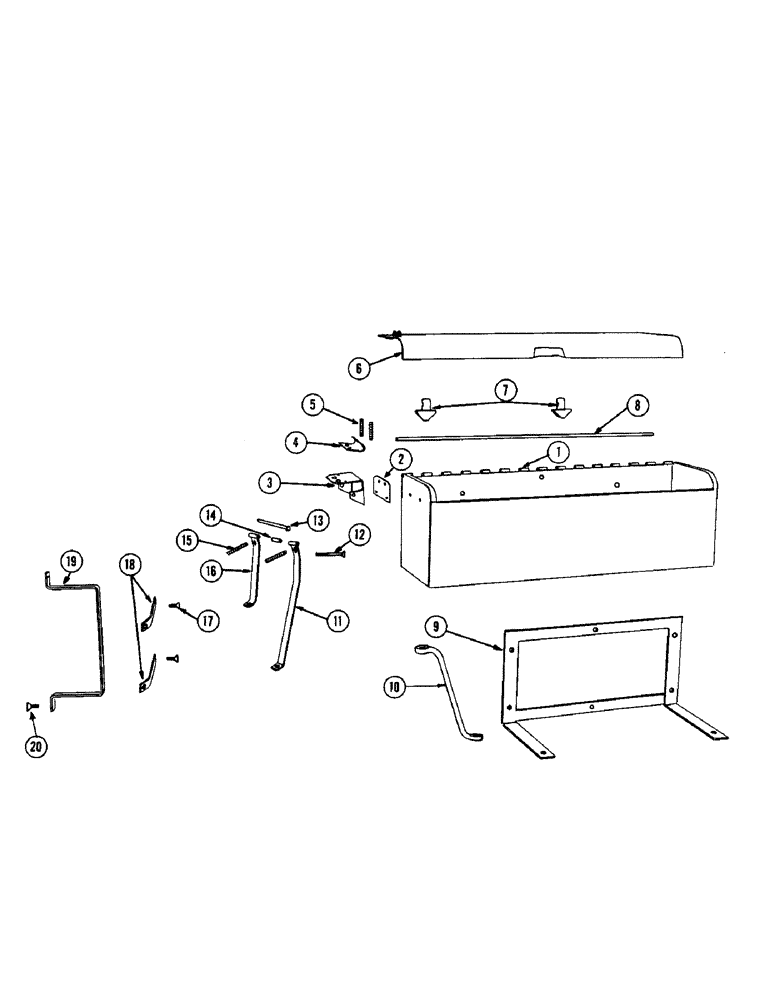

Запчасти Case IH 133 (44[A]) - TWINE BOX

1

B11361

TWINE BOX

1шт.

2

B15477

PLATE - twine guide

1шт.

3

B11052

BRACKET - twine take-up

1шт.

SCREW - 1/4" x 2" N.C. rhd. mach. w/fl. wshr.

2шт.

4

B15476

PLATE - twine tension

1шт.

5

O2985AB1

SPRING

- tension, ref. 4 plate

2шт.

6

B11797

COVER - twine box

1шт.

7

649N

GUIDE - twine

2шт.

SCREW - 5/16" x 5/8" N.C. rhd. mach. w/L.W.

4шт.

WASHER - 5/16" flat

4шт.

8

B11368

ROD - hinge, ref. 6 cover

1шт.

9

B11358

CRADLE - mounting, ref. 1 box

1шт.

BOLT - 1/2" x 1" N.F. hex. w/nut and L.W.

4шт.

BOLT - 1/2" x 1-1/2" N.F. hex. w/nut and L.W.

1шт.

10

B11800

SUPPORT - twine box

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. w/nut and L.W.

1шт.

11

B11048

ARM - long, twine take-up

1шт.

12

O3787N

BOLT - for ref. 15 spring

2шт.

NUT - 5/16" N.C. hex. and fl. wshr.

4шт.

13

B11046

PIN - take-up arm hinge

1шт.

PIN - 1/8" x 3/4" cotter

1шт.

14

B11054

SPACER - take-up arm

1шт.

15

O2939AB

SPRING - tension, take-up arm

2шт.

16

1106NA

ARM - short, twine take-up

1шт.

17

T19468

BOLT - (3/8" x 1" #3 plow w/nut) For ref. 18 guide

2шт.

LOCKWASHER - 3/8"

2шт.

18

B11452

GUIDE - twine

2шт.

19

B15510

BRACKET - twine guide

1шт.

20

T19473

PLOW BOLT

BOLT - (3/8" x 1-1/2" #3 plow w/nut) For ref. 19 bracket

2шт.

LOCKWASHER - 3/8"

2шт.
