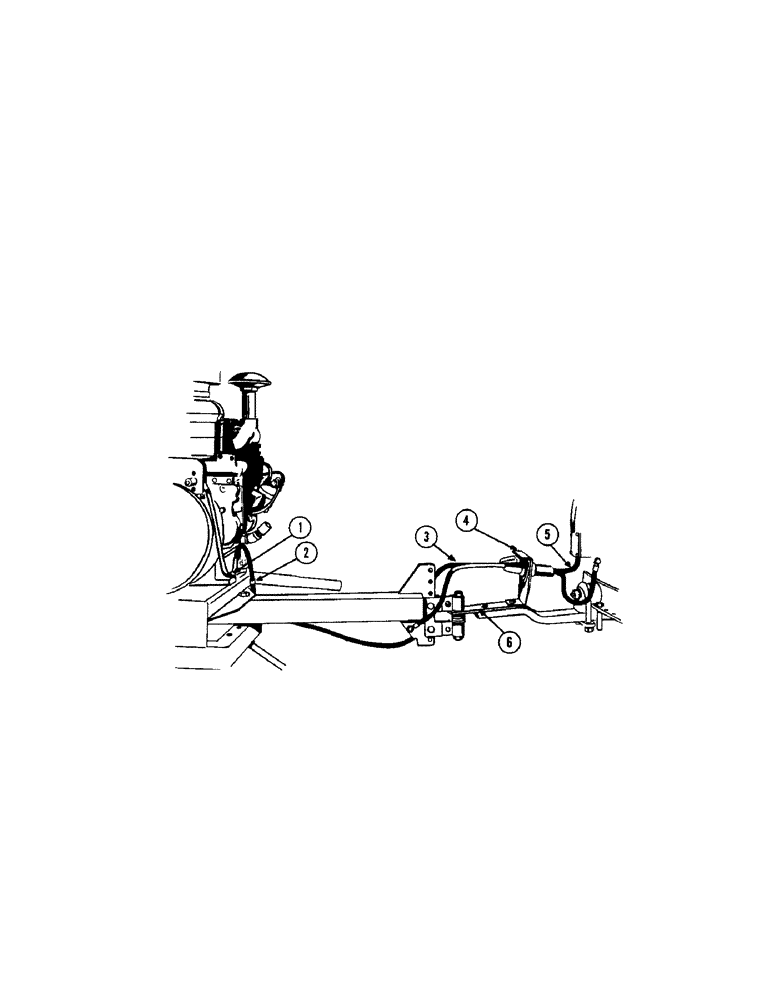

Запчасти Case IH 133 (04[A]) - STARTING MOTOR CABLES

1

O6194AB

CLIP - ref. 3 cable to engine base

1шт.

2

O10244AB

CLIP - ref. 3 cable to engine mounting platform

1шт.

3

F60016

CABLE - (70-5/16" long) starter, baler end

1шт.

N4487

PLUG

1шт.

O7007AB

CLIP - ref. 3 cable to baler hitch

1шт.

4

O4622B

BRACKET - drawbar

1шт.

BOLT - 1/4" x 7/8" N.C. hex. w/nut and L.W.

3шт.

BOLT - 1/2" x 1-3/4" N.F. hex. w/nut and L.W.

1шт.

WASHER - 1/2" flat

1шт.

5

N3786

CABLE - (99" long) starter, tractor end

1шт.

N4486

PLUG

1шт.

6

B11828

EXTENSION - drawbar hitch (For P.T.O. balers only)

1шт.

BOLT - 1/2" x 2-1/2" N.F. hex. w/nut and L.W.

1шт.

WASHER - 1/2" flat

1шт.
