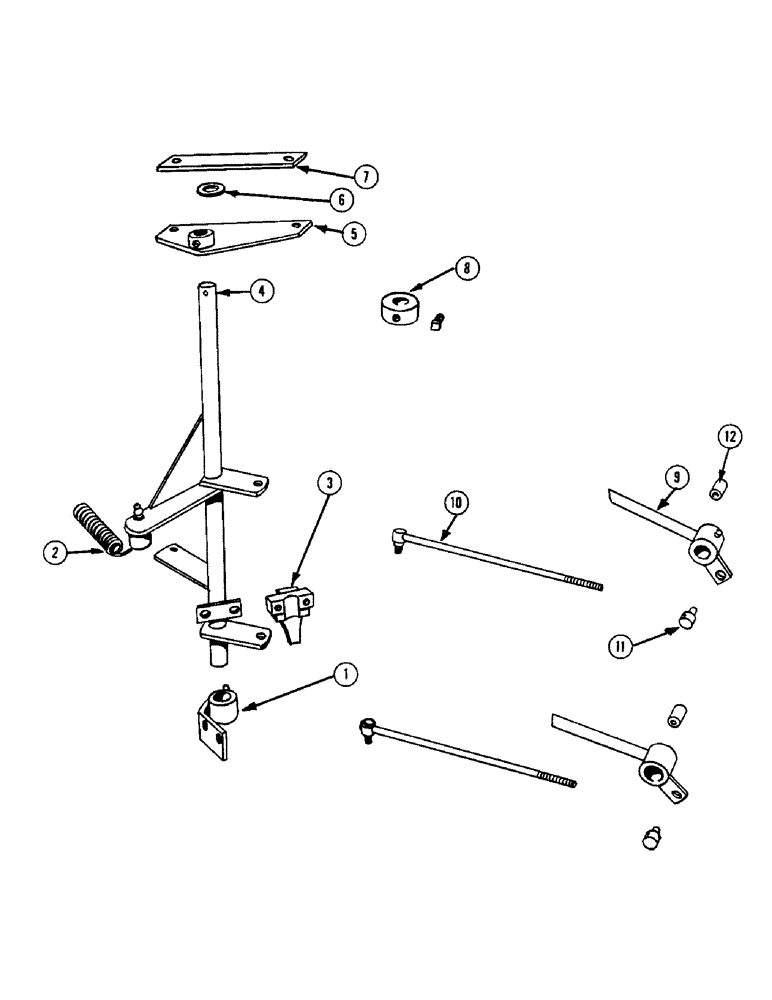

Запчасти Case IH 133 (40) - COUNTER SHAFT AND TUCKER FINGERS

1

B11631

BEARING - lower, countershaft

1шт.

BOLT - 5/16" x 1" N.F. hex. w/nut and L.W.

2шт.

WASHER - 5/16" flat

4шт.

2

24EB

SPRING - tucker finger shaft

1шт.

3

B11625

LATCH - bale measuring rack return

1шт.

BOLT - 3/8" x 2-1/4" N.F. hex. w/nut and L.W.

2шт.

WASHER - 3/8" flat

2шт.

4

B11228

COUNTERSHAFT - tucker finger, with bellcrank

1шт.

FITTING - 1/4" 28 thrd. 90 degree Lincoln #5410

1шт.

PIN - 3/16" x 1-1/4" cotter

1шт.

5

B15484

BEARING - upper, countershaft

1шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/nut and L.W.

2шт.

6

MT631S

WASHER - countershaft

2шт.

7

B11806

SHIM - ref. 5 bearing

1шт.

8

O2167N

COLLAR - top, countershaft

1шт.

SCREW - 3/8" x 3/4" N.C. sq. hd. cup pt. set

1шт.

9

B11236

TUCKER FINGER

2шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

2шт.

10

B11234

LINK - tucker finger

2шт.

PIN - 3/32" x 3/4" cotter

2шт.

11

O4976N

SWIVEL - ref. 10 link

2шт.

PIN - 3/32" x 3/4" cotter

2шт.

12

B11243

PIVOT - sleeve, tucker finger

2шт.

BOLT - 3/8" x 2-1/4" N.C. step w/nut and L.W.

2шт.

WASHER - 3/8" flat

2шт.
