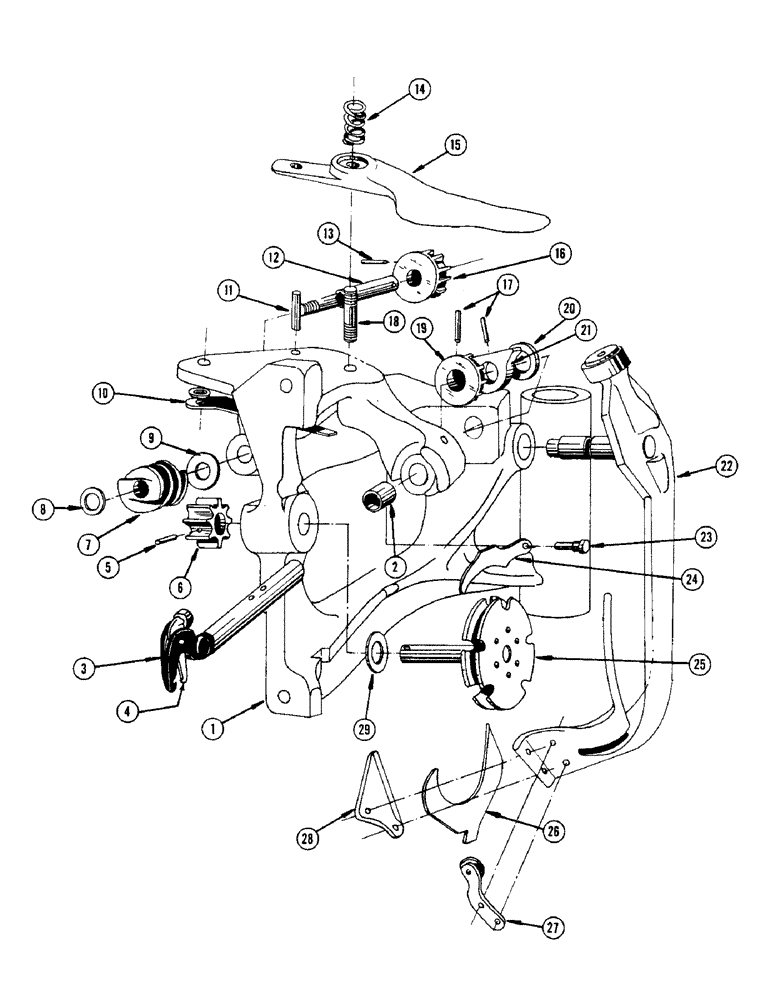

Запчасти Case IH 133 (38) - KNOTTER AND KNOTTER FRAME

1

1778NA

FRAME - knotter

2шт.

BOLT - 7/16" x 1-1/4" N.F. hex. w/nut and L.W.

2шт.

2

O5017N

BUSHING

2шт.

3

F95491

HOOK

- knotter

2шт.

FITTING - 1/4" 28 thrd. Lincoln #20510

2шт.

4

F95493

TONGUE - with roller

1шт.

5

F60837

PIN

1шт.

6

F61197

GEAR

- (10T) Twine tension disc

2шт.

PIN - 3/16" x 7/8" type 3 groove

2шт.

7

O5493N

WORM

- twine disc drive

2шт.

8

O5234N

WASHER - for ref. 7 worm

1шт.

9

O5507N

WASHER

- worm shaft

2шт.

10

F61199

HOLDER

SPRING - twine holder

4шт.

BOLT - 3/8" x 1-1/4" N.C. hex. w/nut and fl. wshr.

2шт.

11

E143S

STUD - cam

2шт.

NUT - 5/16" N.C. hex. jam

2шт.

12

F60967

SHAFT - knife arm

2шт.

FITTING - 1/4" 28 thrd. Lincoln #20510

4шт.

NUT - 3/8" N.F. hex.

2шт.

13

F60837

PIN - worm shaft pinion

1шт.

14

O5024N

SPRING

- ref. 15 cam

2шт.

15

F2559

HOOK

CAM - knotter tongue roller

2шт.

16

639N

PINION - (8T) Worm shaft

2шт.

PIN - 3/16" x 7/8" type 3 groove pin

2шт.

17

F60837

PIN - for ref. 19 pinion

2шт.

18

O5023N

STUD - for ref. 14 spring

2шт.

19

F2562

PINION - knotter hook (Will replace 644N and ref. 21 guide)

2шт.

PIN - 3/16" x 7/8" type 3 groove

2шт.

20

O5092N

WASHER

- for ref. 19 pinion

1шт.

21

O5164N

GUIDE

- for ref. 19 pinion

2шт.

22

F95581

SPARE PART

ARM - twine stripper, less knife

2шт.

FITTING - 1/4" 28 thrd. Lincoln #20510

4шт.

PIN - 5/16" x 1" cotter

2шт.

23

F60321

X

STUD - twine holder

2шт.

24

F61198

HOLDER

- twine

2шт.

25

F95335

DISC

- twine

2шт.

FITTING - 1/4" 28 thrd. Lincoln #20510

2шт.

26

F60968

CLEANER

- disc

2шт.

27

1777NA

ARM

SUPPORT - stripper, w/pad and 3/16" x 3/8" ctsk. hd. rivets

2шт.

SCREW - 1/4" x 3/8" N.F. rhd. mach.

4шт.

28

O5029N

KNIFE

- twine

2шт.

SCREW - 1/4" x 3/8" N.F. rhd. mach.

4шт.

WASHER - 1/4" external tooth

4шт.

29

O5507N

WASHER

- twine disc

1шт.
