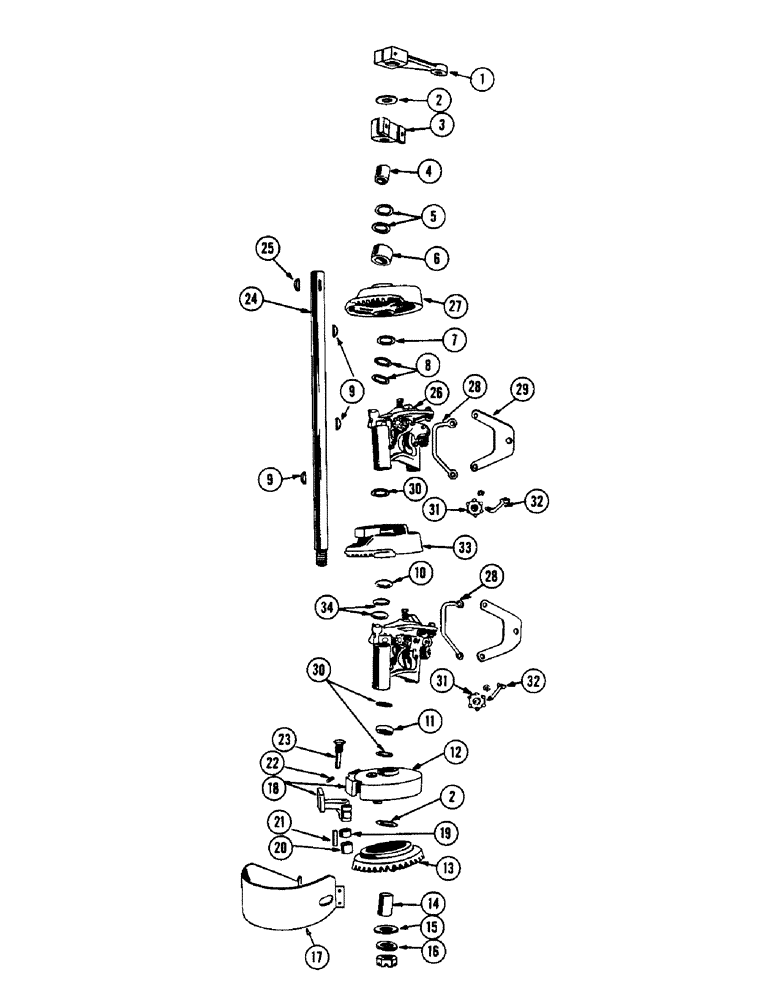

Запчасти Case IH 133 (36) - TYER CLUTCH AND KNOTTER SHAFT

1

B1036

ARM - needle Pitman

1шт.

BOLT - 1/2" x 2" #3 plow w/nut and L.W.

1шт.

2

O45FG

WASHER - (16 ga.) Top bearing and clutch dog cover

1шт.

3

B11491

BEARING - top, knotter shaft

1шт.

FITTING - 1/8" 90 degree Lincoln #5400

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. w/nut and L.W.

1шт.

4

B11413

BUSHING

1шт.

5

B11808

WASHER - (32 ga.) Vertical shaft

1шт.

6

B11414

SPACER - upper, vertical shaft

1шт.

7

O2077N

WASHER - top, vertical shaft

1шт.

8

O3862N

WASHER - (20 ga.) Vertical shaft

1шт.

9

126-51

WOODRUFF KEY,#TX, 3/8" x 2 3/4"

KEY - TX Woodruff, vertical shaft

3шт.

10

O5235N

WASHER - (28 ga.) Vertical shaft

1шт.

11

B11415

SPACER - lower, vertical shaft

1шт.

12

F2561

COVER

- clutch dog

1шт.

13

B15489

GEAR - (35T) Clutch

1шт.

FITTING - 1/4" 28 thrd. Lincoln #5010

1шт.

14

B11885

BUSHING

1шт.

15

O3919N

X

WASHER - (16 ga.) Vertical shaft

1шт.

16

O3032B

X

WASHER - (16 ga.) Vertical shaft

1шт.

17

B15512

SHIELD - knotter drive

1шт.

18

B15396

DOG - clutch

1шт.

19

B15394

ROLLER

1шт.

20

B15395

BEARING

1шт.

21

B15405

PIN

1шт.

22

B15077

SPRING - clutch dog

1шт.

23

B15078

PIN - pivot, clutch dog

1шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

1шт.

24

B15486

SHAFT - vertical

1шт.

NUT - 1" N.F. hex. slotted

1шт.

25

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Ref. 1 arm to vertical shaft #C, 5/16" x 1 1/8", HT

1шт.

26

F95439

KNOTTER - complete

2шт.

27

640N

WHEEL - tyer, upper KNOTTER

1шт.

SCREW - 7/16" x 3/4" N.C. hollow hd. cup pt. set KNOTTER

2шт.

PIN - 3/16" x 2" cotter KNOTTER

1шт.

28

B11640

BAR - relief, twine tension KNOTTER

2шт.

29

O5040N

HOLDER - knotter KNOTTER

2шт.

BOLT - 7/16" x 1-1/2" N.C. hex. w/nut and L.W. KNOTTER

4шт.

30

O3919N

X

WASHER - (16 ga.) Vertical shaft KNOTTER

1шт.

31

B1026

NUT - hand, knotter post anchor KNOTTER

2шт.

32

B15507

BOLT - knotter holder KNOTTER

2шт.

NUT - 3/8" N.C. hex. jam KNOTTER

4шт.

33

A641N

WHEEL - tyer, lower KNOTTER

1шт.

34

O3862N

WASHER - (20 ga.) Vertical shaft KNOTTER

1шт.
