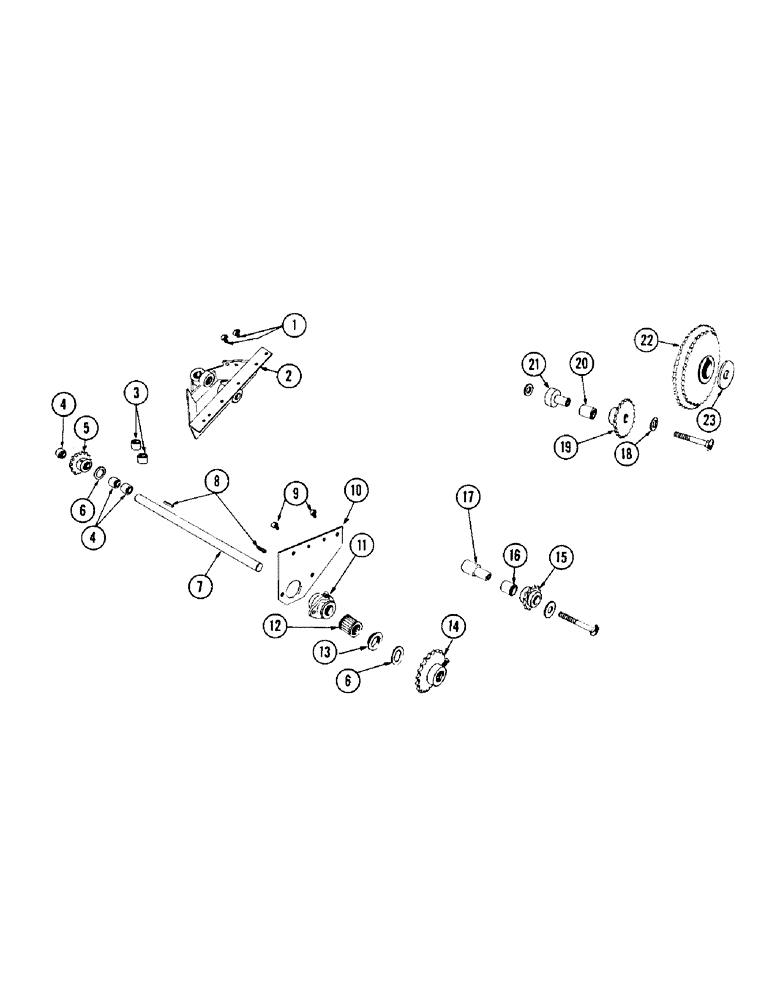

Запчасти Case IH 133 (34) - KNOTTER DRIVE

1

T19471

PLOW BOLT

BOLT - (3/8" x 1-1/4" #3 plow w/nut) For ref. 2 bearing

2шт.

LOCKWASHER - 3/8"

2шт.

2

B11635

BEARING - lower, knotter shaft

1шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

1шт.

FITTING - 1/4" 28 thrd. 45 degree Lincoln #5210

2шт.

BOLT - 1/4" x 3/4" N.F. hex. w/nut and L.W.

3шт.

3

O6131AB

X

BUSHING

2шт.

4

O1089CS

BUSHING

3шт.

5

B11409

PINION - (14T) bevel, cross shaft

1шт.

BOLT - 5/16" x 2-1/4" N.F. hex. w/nut and L.W.

1шт.

SCREW - 3/8" x 3/8" N.F. hollow hd. cup pt. set

1шт.

6

O46FG

WASHER - cross shaft

2шт.

7

B11410

SHAFT - cross, knotter drive

1шт.

8

O1106HT

KEY - ref. 5 pinion and ref. 14 sprocket to cross shaft

2шт.

9

T19471

PLOW BOLT

BOLT - (3/8" x 1-1/4" #3 plow w/nut) For ref. 10 bracket

2шт.

LOCKWASHER - 3/8"

2шт.

10

B15482

BRACKET - cross shaft

1шт.

11

142CHA

BEARING - cross shaft w/housing

1шт.

FITTING - 1/8" 90 degree Lincoln #5400

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. w/dbl. nut

1шт.

12

O317CH

BEARING - (Hyatt #94526)

1шт.

13

O6CH

WASHER

CAP

1шт.

14

B11643

SPROCKET - (20T) Driven, cross shaft

1шт.

SCREW - 3/8" x 1/2" N.C. sq. hd. cup pt. set

2шт.

15

A491NA

SPROCKET - (12T) Idler, rear

1шт.

FITTING - 1/8" str. Lincoln #5000

1шт.

16

F40529

BUSHING

1шт.

17

B11406

STUD - idler rear

1шт.

BOLT - 5/8" x 4-1/2" N.F. hex. w/nut and L.W.

1шт.

WASHER - 5/8" plain

1шт.

18

O774AB

X

WASHER - ref. 19 sprocket

1шт.

19

B11745

SPROCKET - (20T) Idler, front

1шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

1шт.

20

F40529

BUSHING

1шт.

21

B15575

STUD - idler, front

1шт.

BOLT - 5/8" x 3-1/4" N.C. hex. w/nut and L.W.

1шт.

WASHER - 5/8" plain

1шт.

22

B11935

SPROCKET - (42T- 50T) Drives pickup and knotter

1шт.

B15483

CHAIN - knotter drive (NSS-see page 3)

1шт.

23

B11777

WASHER - ref. 22 sprocket

1шт.
