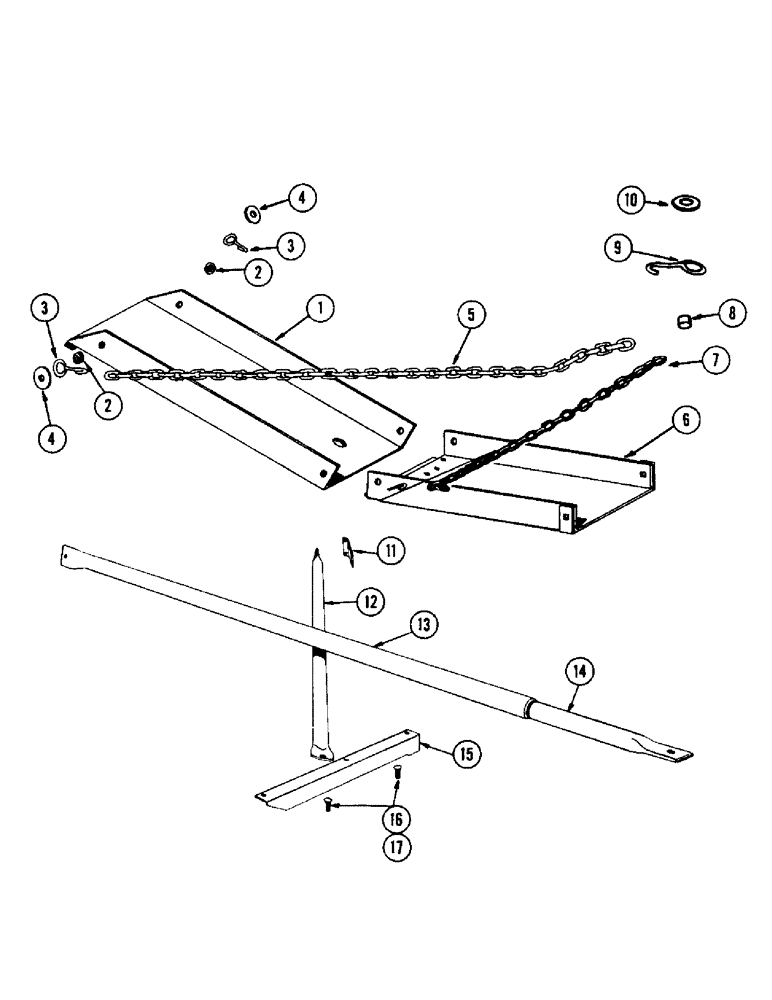

Запчасти Case IH 133 (32) - BALE LOADER AND WAGON HITCH ATTACHMENT

1

O2935N

SHEET - inclined, bale loader

1шт.

SCREW - 1/2" x 1-1/2" N.C. fl. hd. mach. w/nut and L.W.

2шт.

2

509N

SPACER - chain hook

2шт.

3

O5129N

HOOK - chain

2шт.

4

O2815N

WASHER

- chain hook

2шт.

5

O5131N

CHAIN (AG)

CHAIN - bale loader inclined sheet

2шт.

6

B11900

CHUTE - bale

1шт.

SCREW - 1/2" x 1" N.C. mach. w/nut and L.W.

2шт.

WASHER - 1/2" flat

2шт.

Z1718

BOLT

- (1/2" x 1-3/4" #3 plow w/nut) For ref. 6 chute

3шт.

LOCKWASHER - 1/2" and fl. wshrs.

3шт.

7

O5130N

CHAIN - bale chute

1шт.

8

509N

SPACER - chain hook

1шт.

9

O5129N

HOOK - chain

1шт.

10

O2815N

WASHER

- chain hook

1шт.

11

B11727

BRACKET - rear axle brace

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. w/nut and L.W.

4шт.

12

B11728

BRACE - rear axle

1шт.

13

B11729

PIPE - outer, wagon hitch

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. w/nut and L.W.

1шт.

14

B11730

PIPE - inner, wagon hitch

1шт.

BOLT - 1/2" x 5-1/2" N.F. hex. w/nut and L.W.

1шт.

15

B15852

ANGLE - wagon hitch support

1шт.

16

T19480

BOLT

- (1/2" x 1-1/4" #3 plow w/nut) Ref. 15 angle

1шт.

LOCKWASHER - 1/2"

1шт.

17

Z1718

BOLT

- (1/2" x 1-3/4" #3 plow w/nut) Ref. 15 angle

1шт.

LOCKWASHER - 1/2"

1шт.
