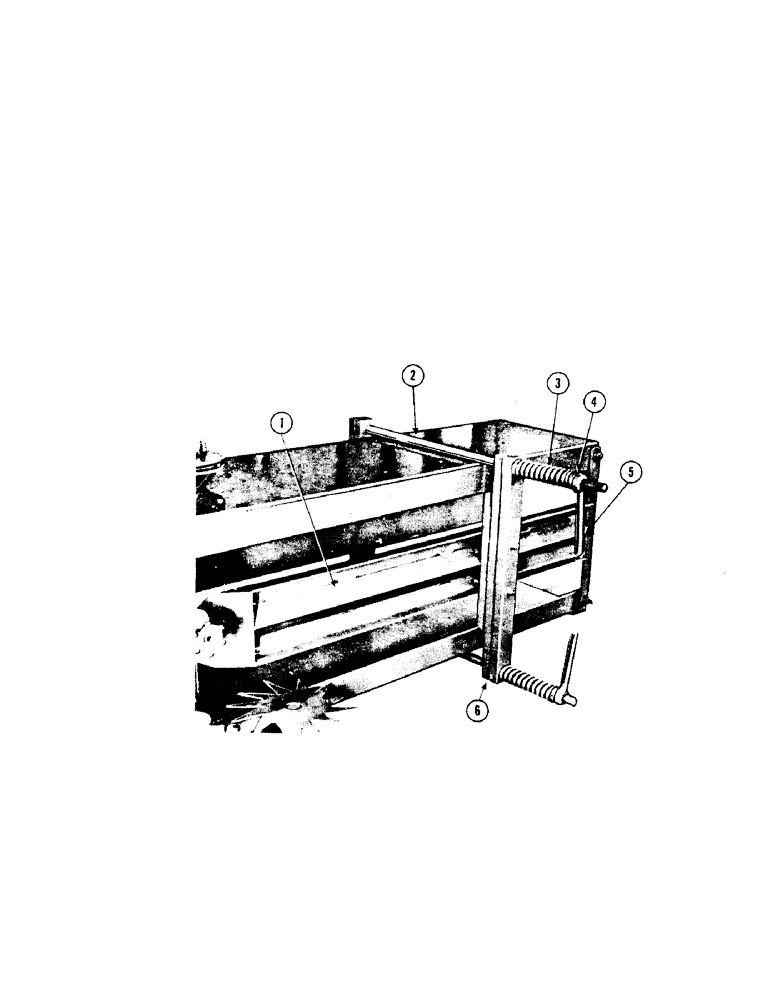

Запчасти Case IH 133 (30) - BALE TENSION

1

B11055

SHEET - side tension

2шт.

BOLT - 3/8" x 5" carr. w/nut and L.W.

4шт.

O5893HT

X

SPACER - (9/16") For L.H. side tension

1шт.

R658S

X

SPACER - (11/16") For R.H. side tension

1шт.

Z1662

BOLT

- (3/8" x 1-3/4" #3 plow w/nut) For side tension spacers

2шт.

LOCKWASHER - 3/8"

2шт.

2

B11059

SPRING

BOLT - (3/4" x 32") Bale tension

2шт.

3

B11517

SPRING - tension

2шт.

4

O4574N

BEARING - (Timken #T76W) tension

2шт.

5

O1801N

HANDLE - tension

2шт.

6

B11060

CHANNEL - tension

2шт.

1

B11960M

CHUTE - bale (Machinery item)

1шт.

2

O5130N

CHAIN - bale chute

1шт.

3

O5129N

HOOK - chain

1шт.

4

O2815N

WASHER

- chain hook

1шт.

5

509N

SPACER - chain hook

1шт.

6

Z1718

BOLT

- (1/2" x 1-3/4" #3 plow w/nut) For ref. 3 hook

1шт.

LOCKWASHER - 1/2"

1шт.

7

B11495

DIVERTER - bale

1шт.

8

O5130N

CHAIN - bale diverter

1шт.

9

O5129N

HOOK - chain BALE DIVERTER

1шт.

10

O5402N

SPACER - for ref. 11 bolt BALE DIVERTER

2шт.

11

Z1718

BOLT

- (1/2" x 1-3/4" #3 plow w/nut) For ref. 7 diverter BALE DIVERTER

2шт.

LOCKWASHER - 1/2" BALE DIVERTER

2шт.

12

O2815N

WASHER

- ref. 14 bolt BALE DIVERTER

1шт.

13

509N

SPACER - ref. 14 bolt BALE DIVERTER

1шт.

14

T19480

BOLT

- (1/2" x 1-1/4" #3 plow w/nut) For ref. 15 strap BALE DIVERTER

1шт.

LOCKWASHER - 1/2" BALE DIVERTER

1шт.

15

B11210

STRAP - tie, rear vertical BALE DIVERTER

2шт.

BOLT - 1/2" x 2" #3 plow w/nut and L.W. BALE DIVERTER

2шт.
