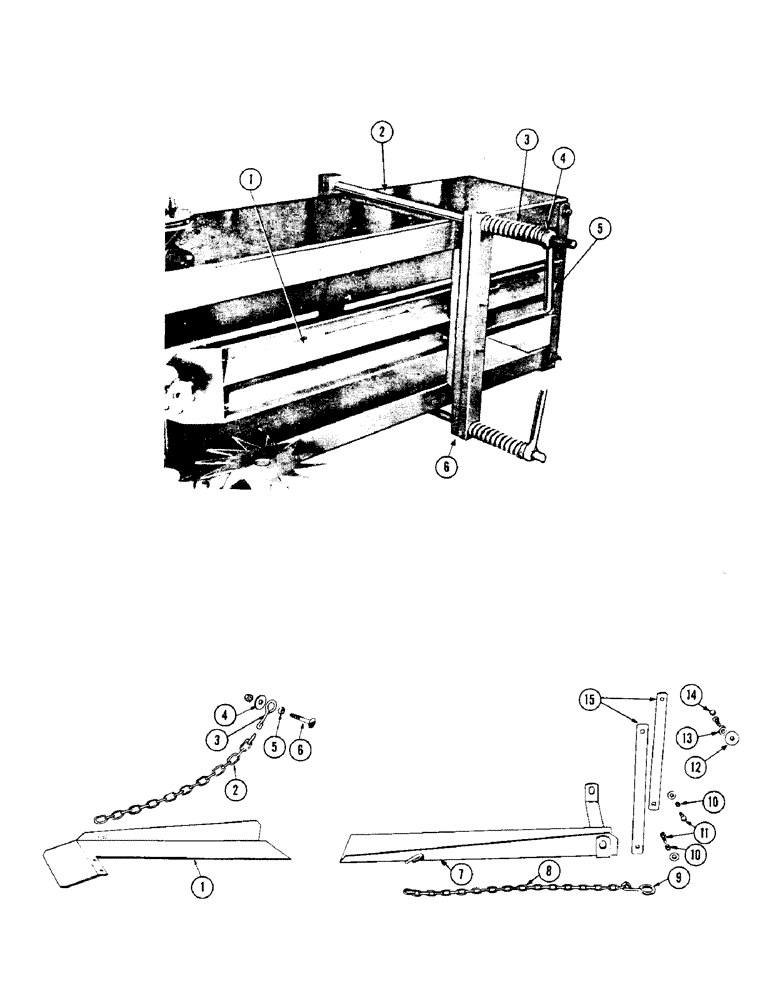

Запчасти Case IH 133 (30[B]) - BALE DIVERTER

1

B11960M

CHUTE - bale (Machinery item)

1шт.

2

O5130N

CHAIN - bale chute

1шт.

3

O5129N

HOOK - chain

1шт.

4

O2815N

WASHER

- chain hook

1шт.

5

509N

SPACER - chain hook

1шт.

6

Z1718

BOLT

- (1/2" x 1-3/4" #3 plow w/nut) For ref. 3 hook

1шт.

LOCKWASHER - 1/2"

1шт.

7

B11495

DIVERTER - bale

1шт.

8

O5130N

CHAIN - bale diverter

1шт.

9

O5129N

HOOK - chain

1шт.

10

O5402N

SPACER - for ref. 11 bolt

2шт.

11

Z1718

BOLT

- (1/2" x 1-3/4" #3 plow w/nut) For ref. 7 diverter

2шт.

LOCKWASHER - 1/2"

2шт.

12

O2815N

WASHER

- ref. 14 bolt

1шт.

13

509N

SPACER - ref. 14 bolt

1шт.

14

T19480

BOLT

- (1/2" x 1-1/4" #3 plow w/nut) For ref. 15 strap

1шт.

LOCKWASHER - 1/2"

1шт.

15

B11210

STRAP - tie, rear vertical

2шт.

BOLT - 1/2" x 2" #3 plow w/nut and L.W.

2шт.
