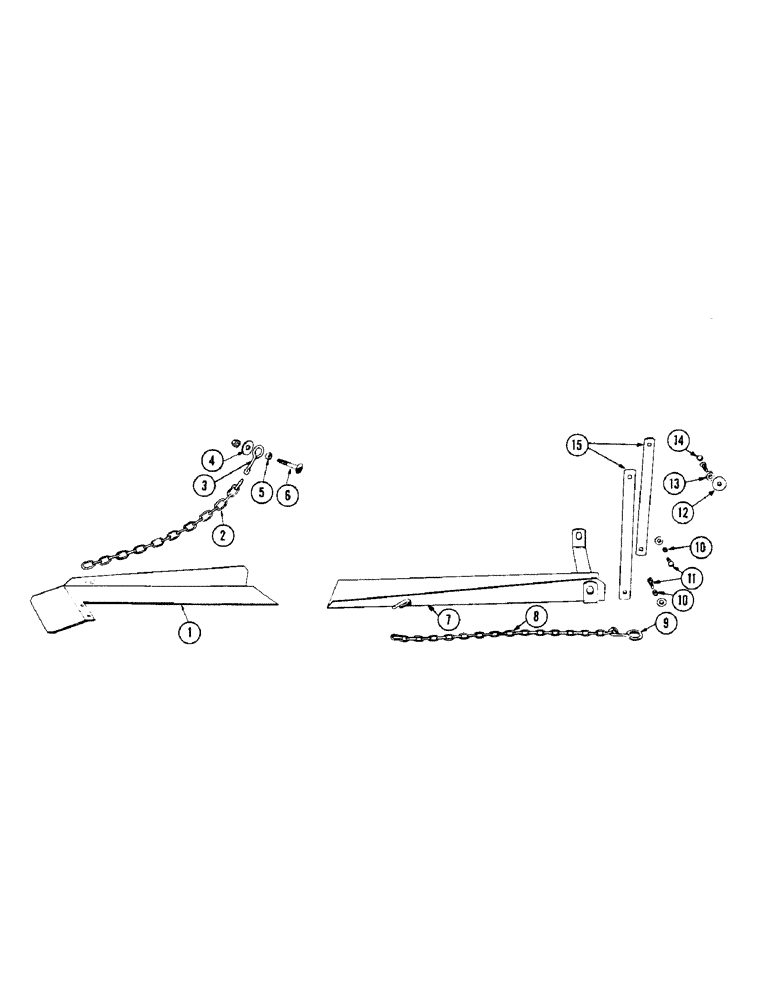

Запчасти Case IH 133 (30[A]) - BALE CHUTE

1

B11055

SHEET - side tension

2шт.

BOLT - 3/8" x 5" carr. w/nut and L.W.

4шт.

O5893HT

X

SPACER - (9/16") For L.H. side tension

1шт.

R658S

X

SPACER - (11/16") For R.H. side tension

1шт.

Z1662

BOLT

- (3/8" x 1-3/4" #3 plow w/nut) For side tension spacers

2шт.

LOCKWASHER - 3/8"

2шт.

2

B11059

SPRING

BOLT - (3/4" x 32") Bale tension

2шт.

3

B11517

SPRING - tension

2шт.

4

O4574N

BEARING - (Timken #T76W) tension

2шт.

5

O1801N

HANDLE - tension

2шт.

6

B11060

CHANNEL - tension

2шт.
