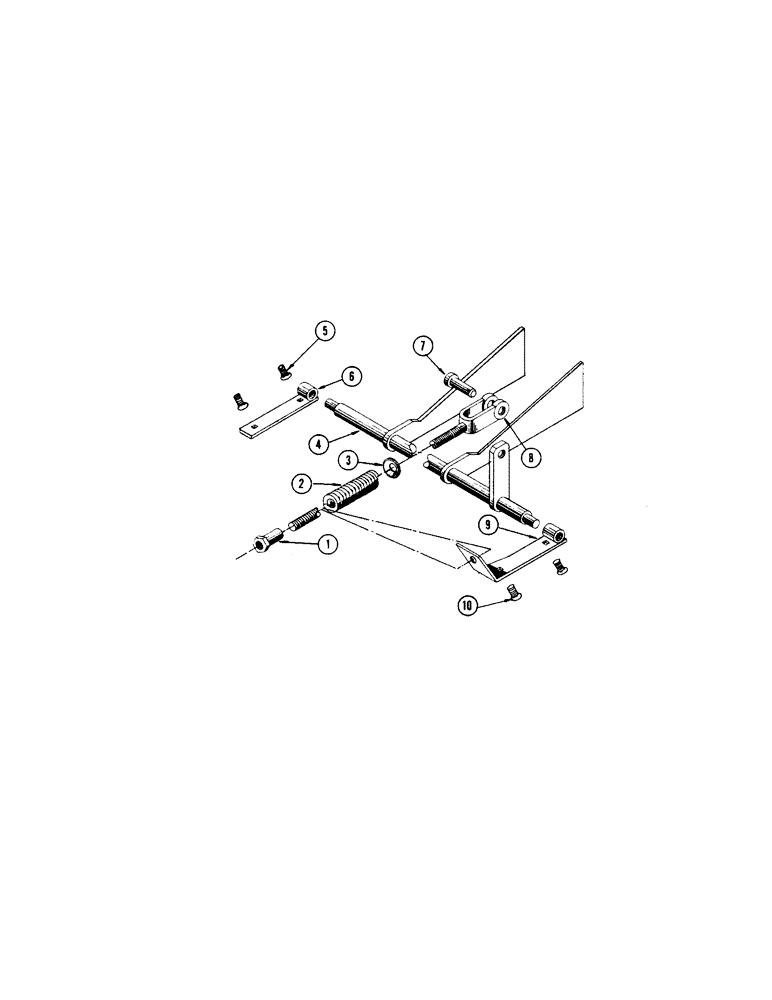

Запчасти Case IH 133 (28[A]) - BALE CHAMBER BOTTOM DOG

1

O5605N

GUIDE - spring

1шт.

2

O1384CH

SPRING - ref. 8 clevis

1шт.

3

O4513HT

WASHER - cup, ref. 8 clevis

1шт.

4

1976NA

HAY DOG

1шт.

5

T19468

BOLT - (3/8" x 1" #3 plow w/nut) Ref. 6 bracket

2шт.

LOCKWASHER - 3/8"

2шт.

6

1977NA

BRACKET - bearing

1шт.

7

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - ref. 8 clevis

1шт.

PIN - 1/8" x 1" cotter

1шт.

8

O5604N

CLEVIS - rod, for ref. 9 bracket

1шт.

NUT - 7/16" N.F. hex. jam

2шт.

9

1978NA

BRACKET - bearing

1шт.

10

T19471

PLOW BOLT

BOLT - (3/8" x 1-1/4" #3 plow w/nut) Ref. 9 bracket

2шт.

LOCKWASHER - 3/8"

2шт.
