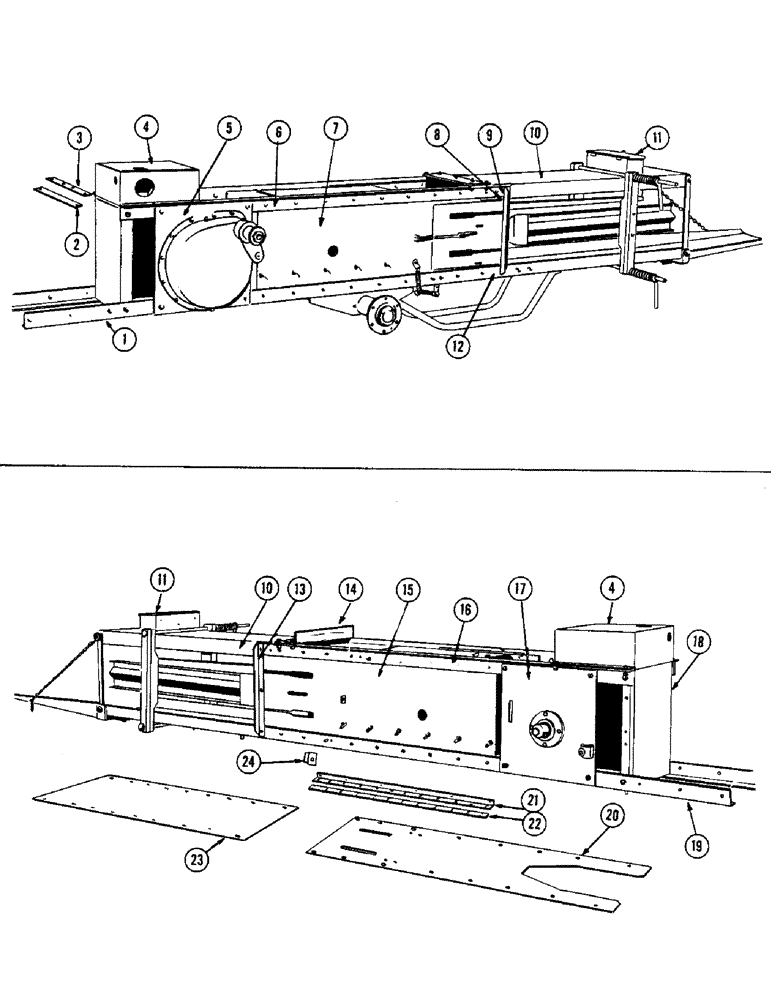

Запчасти Case IH 133 (26) - BALE CHAMBER

1

B15509

RAIL - L.H., lower main

1шт.

BOLT - 3/8" x 3/4" #3 plow w/nut and L.W.

1шт.

BOLT - 1/2" x 1" #3 plow w/nut and L.W.

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/nut and L.W.

2шт.

2

B11858

BAR - top front bale case filler (P.T.O. baler only)

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. w/nut and L.W.

2шт.

3

B11859

BAR - top front bale case cross (P.T.O. baler only)

1шт.

BOLT - 3/8" x 1" N.F. hex. w/nut and L.W.

2шт.

4

B11736

PLATFORM - gas tank (Engine balers only)

1шт.

5

B11227

PLATE - L.H. front, main frame

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. w/nut and L.W.

4шт.

6

B15505

RAIL - top, L.H.

1шт.

BOLT - 1/2" x 1" #3 plow w/nut and L.W.

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. w/nut and L.W.

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/nut and L.W.

1шт.

7

B15493

PLATE - L.H. side

1шт.

8

B15591

SPACER - (1/8" thick) Side plate angle

2шт.

9

B15506

ANGLE - L.H. side plate brace

1шт.

10

B11190

PLATE - upper

1шт.

11

2884AA

TOOL BOX

1шт.

SCREW - 1/4" x 3/4" N.C. flat hd. w/nut and L.W.

2шт.

WASHER - 1/4" flat

2шт.

12

B15592

SPACER - (5/16" thick) Side plate angle

4шт.

13

B15707

ANGLE - R.H. side plate brace

1шт.

14

B15668

ANGLE - backup, stationary knife

1шт.

15

B15498

PLATE - R.H. side

1шт.

16

B15504

RAIL - top, R.H.

1шт.

BOLT - 1/2" x 1" #3 plow w/nut and L.W.

1шт.

BOLT - 1/2" x 1" N.F. hex. w/nut and L.W.

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/nut and L.W.

1шт.

17

B11612

PLATE - R.H. front, main frame

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. w/nut and L.W.

4шт.

PIN - 3/32" x 1" cotter

1шт.

18

B11192

PLATE - front

1шт.

BOLT - 1/2" x 1" N.F. hex. w/nut and L.W.

2шт.

19

B15508

RAIL - R.H., lower main

1шт.

BOLT - 1/2" x 1" #3 plow w/nut and L.W.

1шт.

BOLT - 3/8" x 3/4" #3 plow w/nut and L.W.

1шт.

20

B15502

PLATE - bottom front

1шт.

21

B15897

ANGLE - R.H., plunger hold down

1шт.

BOLT - 3/8" x 1" carr. w/nut and L.W.

5шт.

WASHER - 3/8" flat

5шт.

WASHER - 5/16" flat

1шт.

22

B11206

LINING

1шт.

RIVET - 3/16" x 8/16" #1681 brass tubular

14шт.

B11204

ANGLE - L.H., plunger hold down (Includes ref. 22)

1шт.

BOLT - 3/8" x 1" carr. w/nut and L.W.

5шт.

BOLT - 3/8" x 1-1/4" carr. w/nut and L.W.

1шт.

WASHER - 3/8" flat

6шт.

23

B15503

PLATE - bottom rear

1шт.

24

B11195

ANGLE - L.H., plunger wiper

1шт.

BOLT - 3/8" x 1-1/4" carr. w/nut and L.W.

1шт.

WASHER - 3/8" flat

1шт.

O2123N1

LUG - baling chamber

2шт.

O2993N

BOLT - lug

4шт.

NUT - 5/16" N.C. hex.

4шт.

T19468

BOLT - (3/8" x 1" #3 plow w/nut) 11-R.H. side plate, 14-L.H. side plate, 3-R.H. lower rail, 1-L.H. lower rail and 13-bottom rear plate

42шт.

LOCKWASHER - 3/8"

42шт.

T19471

PLOW BOLT

BOLT - (3/8" x 1-1/4" #3 plow w/nut) 3-R.H. side plate, 2-L.H. top rail and 1-lower rail

6шт.

LOCKWASHER - 3/8"

6шт.

T19473

PLOW BOLT

BOLT - (3/8" x 1-1/2" #3 plow w/nut) 1-L.H. side plate, 1-L.H. top rail, 1-L.H. side plate and 2-baling chamber skid

6шт.

LOCKWASHER - 3/8"

6шт.
