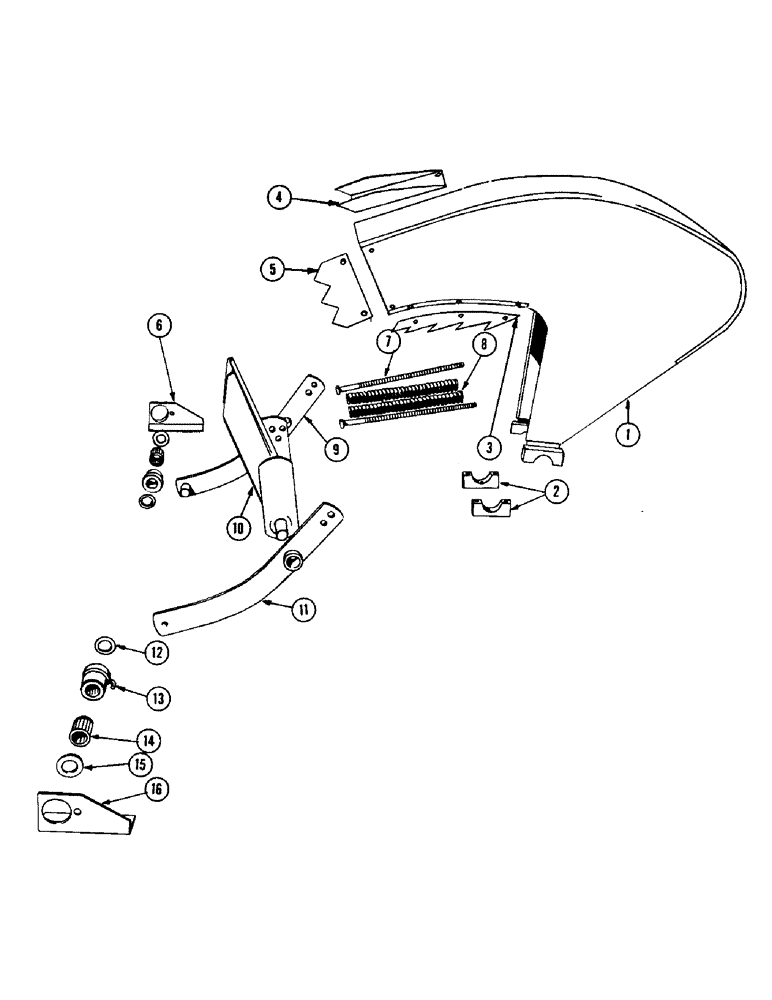

Запчасти Case IH 133 (24) - FEEDER HEAD

1

B15571

HEAD - feeder

1шт.

2

B11861

BEARING - adjusting arms

2шт.

BOLT - 3/8" x 2" N.F. hex. w/L.W.

4шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

2шт.

3

B11891

EXTENSION - large, head side

2шт.

SCREW - 5/16" x 3/4" N.C. rhd. mach. w/nut and L.W.

4шт.

4

B15565

EXTENSION - top rear

1шт.

SCREW - 5/16" x 3/4" N.C. rhd. mach. w/nut and L.W.

4шт.

5

B15572

EXTENSION - small, head side

2шт.

SCREW - 5/16" x 1" N.C. rhd. mach. w/nut and L.W.

2шт.

6

B11299

BRACKET - L.H., pivot

1шт.

BOLT - 1/2" x 1" N.F. hex. w/nut and L.W.

2шт.

7

B11767

BOLT - spring

2шт.

NUT - 1/2" N.C. hex.

4шт.

PIN - 3/16" x 1-1/4" cotter

2шт.

8

306EB

SPRING

2шт.

9

B15547

ARM - pivot, L.H.

1шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

1шт.

PIN - 3/16" x 1-1/4" cotter

1шт.

BOLT - 3/8" x 2-1/4" N.F. hex. w/nut and L.W.

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. w/nut and L.W.

1шт.

10

B15554

ARM - adjusting

1шт.

11

B15546

ARM - pivot, R.H.

1шт.

FITTING - 1/4" 28 thrd. str. Lincoln #5010

1шт.

PIN - 3/16" x 1-1/4" cotter

1шт.

BOLT - 3/8" x 2-1/4" N.F. hex. w/nut and L.W.

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. w/nut and L.W.

1шт.

12

O3862N

WASHER - pivot shaft

1шт.

13

86CKA

BEARING - pivot shaft, with housing

2шт.

FITTING - 1/8" 90 degree Lincoln #5400

1шт.

14

O319CH

BEARING - (Hyatt #94362)

1шт.

15

O130CK

WASHER

1шт.

16

B11298

BRACKET - R.H. pivot

1шт.

BOLT - 1/2" x 1" N.F. hex. w/nut and L.W.

2шт.
