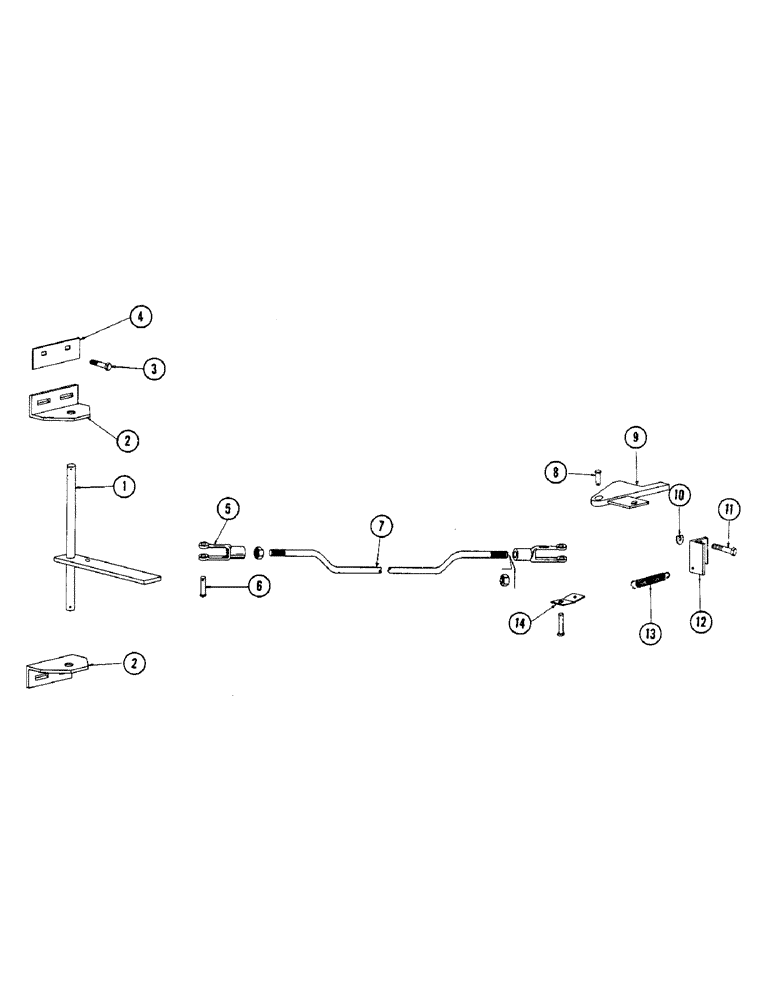

Запчасти Case IH 133 (22) - PLUNGER STOP LATCH

1

B15901

SHAFT - control plunger stop

1шт.

PIN - 3/16" x 1-1/4" cotter

2шт.

2

B15906

ANGLE - pivot shaft

2шт.

3

T19468

BOLT - (3/8" x 1" #3 plow w/nut) For ref. 2 angle

4шт.

LOCKWASHER - 3/8"

4шт.

WASHER - 3/8" flat

4шт.

WASHER - 3/4" flat

2шт.

4

B15909

SPACER - pivot shaft angle

1шт.

5

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - plunger stop latch rod

2шт.

6

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, stop latch rod

2шт.

PIN - 1/8" x 3/4" cotter

2шт.

7

B15904

ROD - plunger, stop latch

1шт.

NUT - 1/2" N.F. hex. jam

2шт.

8

O6561AB

PIN - clevis, plunger stop

1шт.

PIN - 1/8" x 1" cotter

1шт.

9

B15898

STOP - plunger

1шт.

10

B15911

WASHER - clipped, ref. 11 bolt

1шт.

11

T19471

PLOW BOLT

BOLT - (3/8" x 1-1/4" #3 plow w/nut) For ref. 12 angle

1шт.

LOCKWASHER - 3/8"

1шт.

12

B15907

ANGLE - latch stop

1шт.

BOLT - 5/16" x 1" #3 plow w/nut and L.W.

1шт.

13

VT2155

X

SPRING - plunger stop

1шт.

14

O2532AB

CLIP - spring, plunger stop

1шт.
