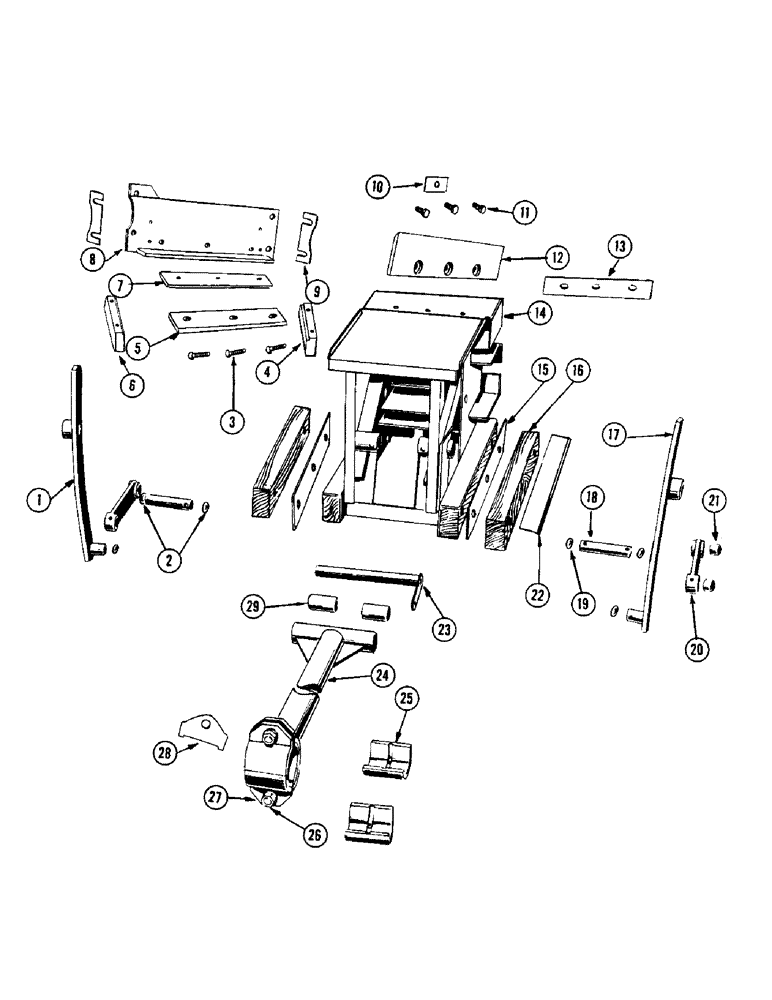

Запчасти Case IH 133 (20) - PLUNGER AND PLUNGER PITMAN
№
Артикул
Название
Примечание
Количество
1
B15546
ARM - pivot, feeder head, R.H.
1шт.
FITTING - 1/8" 28 thread Lincoln #5010
1шт.
PIN - 3/16" x 1-1/4" cotter
1шт.
2
O46FG
WASHER - pivot arms
4шт.
3
T19473
PLOW BOLT
BOLT - (3/8" x 1-1/2" #3 plow w/hex. nut) Stationary knife
3шт.
LOCKWASHER - 3/8"
3шт.
4
B11897
GUIDE - knife, L.H.
1шт.
BOLT - 3/8" x 1" N.F. hex. w/nut and L.W.
2шт.
5
B11893
KNIFE - stationary
1шт.
6
B11896
GUIDE - knife, R.H.
1шт.
BOLT - 3/8" x 1" N.F. hex w/nut and L.W.
2шт.
7
B11895
BAR - backup, stationary knife
1шт.
8
B15668
ANGLE - backup bar
1шт.
BOLT - 1/2" x 1-1/2" N.F. hex. w/nut and L.W.
4шт.
9
B11199
SHIM - stationary knife support
1шт.
10
B15677
SHIM - plunger knife
1шт.
11
O4721N
CAP SCREW - plunger knife
3шт.
12
B15607
KNIFE - plunger
1шт.
13
B11869
SHIM - plunger knife
1шт.
14
B15687
PLUNGER
1шт.
15
B11799
SHIM - plunger runners
1шт.
16
B11026
RUNNER - plunger
2шт.
BOLT 3/8" x 2" N.C. carr. w/nut and L.W.
6шт.
17
B15547
ARM - pivot, feeder head, L.H.
1шт.
FITTING - 1/4" 28 thread straight Lincoln #5010
1шт.
PIN - 3/16" x 1-1/4" cotter
1шт.
18
B11027
PIN - plunger link
2шт.
PIN - 3/16" x 1-1/4" cotter
2шт.
19
O46FG
WASHER - plunger link pin
2шт.
20
B15541
ARM - link, plunger to feeder pivot arm
2шт.
FITTING - 1/4" 28 thread straight Lincoln #5010
2шт.
21
B11899
BUSHING
4шт.
22
B11944
SHIM - top, plunger runner
1шт.
23
B11804
PIN - pitman bearing, plunger end
1шт.
BOLT - 5/16" x 1" N.F. hex. w/nut and L.W.
1шт.
24
B11029
PITMAN
1шт.
FITTING - 1/8" straight Lincoln #5000
2шт.
FITTING - 1/8" 45 degree Lincoln #5400
1шт.
25
O2698N
BUSHING - Pitman bearing, crankshaft end
1шт.
26
O7006A
WASHER - cap screw ref. 27
4шт.
27
O116FH
X
CAP SCREW - Pitman bearing, crankshaft end
2шт.
NUT - 1/2" castle
2шт.
28
O2365N1
SHIM - (16 ga.) Pitman bearing, crankshaft end
14шт.
29
B11502
BUSHING - Pitman bearing, plunger end
2шт.
B11947
SHIM - (28 ga.) Pitman bearing (Similar to ref. 28)
2шт.
