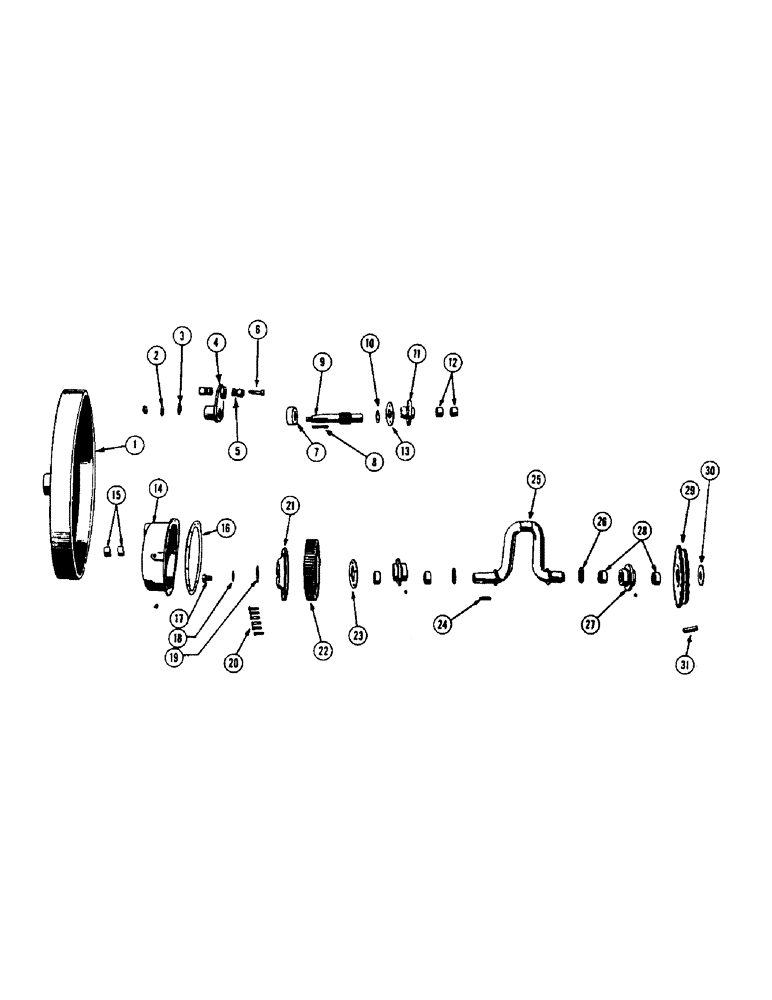

Запчасти Case IH 133 (16) - FLYWHEEL
№
Артикул
Название
Примечание
Количество
1
B1018
FLYWHEEL
1шт.
SCREW - 3/8" x 1/2" N.C. hollow hd. cup pt. set
1шт.
FITTING - 1/8" straight Lincoln #5000
1шт.
2
O1452HT
LOCKWASHER - flywheel shaft
1шт.
3
B11442
WASHER - outer end of flywheel
1шт.
4
B11222
ARM - hub
1шт.
SCREW - 3/8" x 1/2" N.C. hollow hd. cup pt. set
1шт.
SCREW - 3/8" x 3-3/4" N.C. mach. w/dbl. nut and flat washer
1шт.
WASHER - 5/16" flat
2шт.
5
O2943N
COLLAR - safety
1шт.
6
F60345
BOLT - shear, for collar
1шт.
7
B15670
SPACER - pinion shaft
1шт.
8
O2942N
KEY - ref. 4 arm
1шт.
9
B15605
SHAFT - flywheel, with pinion
1шт.
NUT - 1-1/8" N.F. hex. jam
1шт.
10
B11778
WASHER - shaft
1шт.
11
B15669
HUB - shaft
1шт.
FITTING - 1/8" straight Lincoln #5000
1шт.
BOLT - 1/2" x 1-3/4" carr. w/nut and L.W.
2шт.
12
O1821N
BUSHING
2шт.
13
B15672
GASKET - hub
1шт.
14
368NA
HOUSING - gear CRANKSHAFT
1шт.
FITTING - 1/8" straight Lincoln #5000 CRANKSHAFT
1шт.
BOLT - 3/8" x 1-1/4" N.F. hex. w/nut and L.W. CRANKSHAFT
9шт.
BOLT - 3/8" x 1-1/2" N.F. hex. w/nut and L.W. CRANKSHAFT
2шт.
BOLT - 1/2" x 2" N.F. hex. w/nut and L.W. CRANKSHAFT
2шт.
PLUG - 1/8" sq. hd. pipe CRANKSHAFT
2шт.
15
O1821N
BUSHING CRANKSHAFT
2шт.
16
O1779N
GASKET - gear housing CRANKSHAFT
1шт.
17
B11618
CAP SCREW - crank gear hub CRANKSHAFT
1шт.
18
B11620
LOCKWASHER - cap screw CRANKSHAFT
1шт.
19
B11619
WASHER - cap screw CRANKSHAFT
1шт.
20
O1279AB
BOLT - ring gear CRANKSHAFT
6шт.
NUT - 1/2" N.F. castle CRANKSHAFT
6шт.
PIN - 3/32" x 1" cotter CRANKSHAFT
6шт.
21
B1113
HUB - crank gear CRANKSHAFT
1шт.
22
O1644AB
RING GEAR CRANKSHAFT
1шт.
23
B15673
GASKET - L.H., crankshaft bearing CRANKSHAFT
1шт.
24
B11223
KEY
- crank gear hub CRANKSHAFT
1шт.
25
B15559
CRANKSHAFT - Pitman CRANKSHAFT
1шт.
BOLT - 3/4" x 1-1/4" N.F. hex. w/L.W. CRANKSHAFT
1шт.
26
O1822N
WASHER CRANKSHAFT
2шт.
27
367NA
HUB - crankshaft
2шт.
BOLT - 7/16" x 1-1/2" N.F. hex. w/nut and L.W. CRAKSHAFT
8шт.
FITTING - 1/8" straight Lincoln #5000 CRANKSHAFT
2шт.
28
O1823N
BUSHING CRANKSHAFT
2шт.
29
B11935
SPROCKET - (42T - 50T dbl.) Pickup and knotter drive CRANKSHAFT
1шт.
30
B11777
WASHER - for ref. 29 sprocket CRANKSHAFT
1шт.
31
B11653
KEY - ref. 29 sprocket to crankshaft CRANKSHAFT
1шт.
Выбрано товаров: 49
