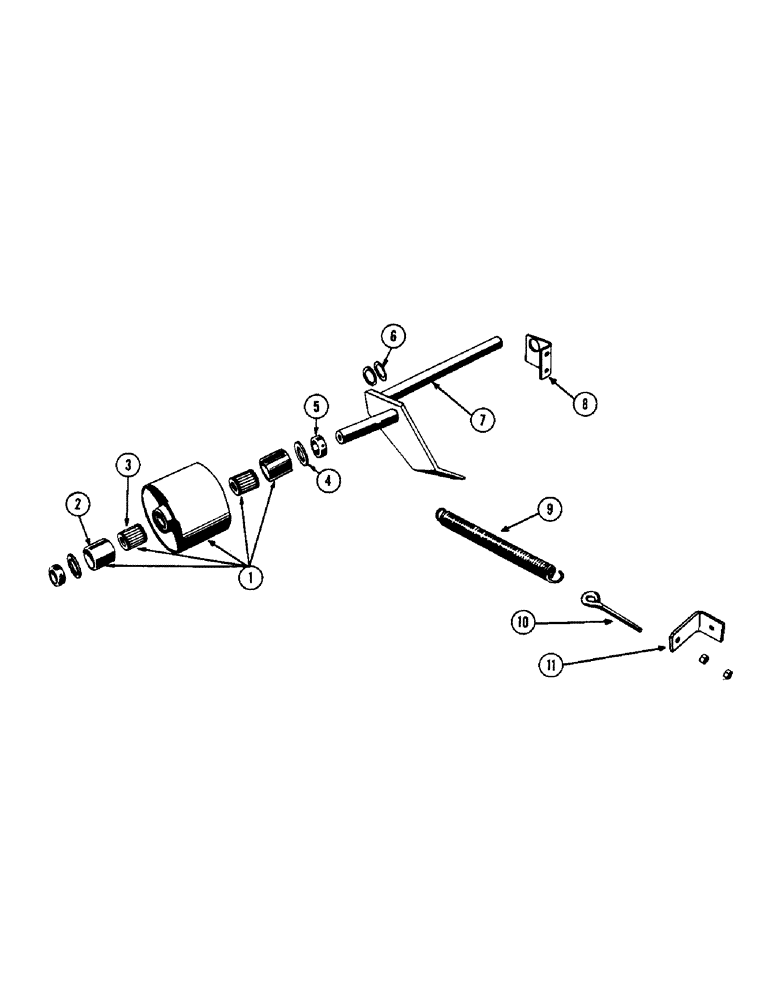

Запчасти Case IH 133 (14) - MAIN DRIVE BELT TIGHTENER, P.T.O. EQUIPPED BALERS

1

600NA

PULLEY - belt tightener

1шт.

2

O1084CH

RACE

2шт.

3

O317CH

BEARING - (Hyatt #94526)

2шт.

4

O46FG

WASHER - bearing retainer

2шт.

5

O2520AB

COLLAR - shaft

2шт.

SCREW - 3/8" x 1/2" N.C. sq. hd. cup pt. set

2шт.

6

O45FG

WASHER - shaft

2шт.

7

B15632

SHAFT - belt tightener

1шт.

PIN - 3/16" x 2" cotter

2шт.

FITTING - 1/8" straight Lincoln #5000

1шт.

8

B15631

BRACKET - shaft

1шт.

SCREW - 3/8" x 1" N.C. flat hd. mach. w/nut

2шт.

9

148-1/2GD

SPRING - belt tightener

1шт.

10

B11448

EYEBOLT - spring

1шт.

NUT - 3/8" N.C. hex.

2шт.

11

B11740

ANCHOR - spring

1шт.

BOLT - 3/8" x 1" N.F. hex. w/nut and L.W.

1шт.

B15466

BELT - main drive (Similar to ref. 3 page 12)

1шт.
