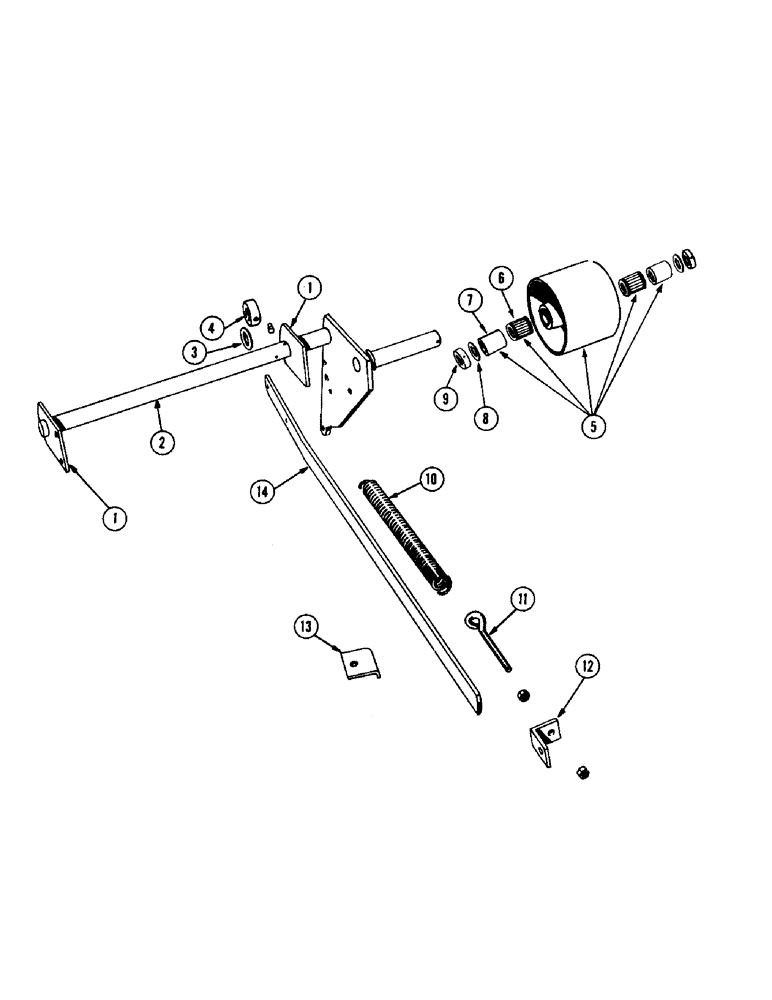

Запчасти Case IH 133 (12[A]) - MAIN DRIVE BELT TIGHTENER ENGINE EQUIPPED BALERS

1

B15637

BRACKET - belt tightener

2шт.

BOLT - 3/8" x 1" N.F. hex. w/nut and L.W.

4шт.

2

B15638

ARM - main drive

1шт.

PIN - 3/16" x 2" cotter pin

1шт.

FITTING - 1/8" straight Lincoln #5000

1шт.

3

O45FG

WASHER - arm

2шт.

4

O2027N

COLLAR - arm

1шт.

SCREW - 1/2" x 1/2" N.C. sq. hd. cup pt. set

1шт.

5

600NA

PULLEY - belt tightener

1шт.

6

O317CH

BEARING - (Hyatt #94526)

2шт.

7

O1084CH

RACE - bearing

2шт.

8

O46FG

WASHER - bearing retainer

2шт.

9

O2520AB

COLLAR - arm

2шт.

10

148-1/2GD

SPRING - belt tightener

1шт.

11

B11448

EYEBOLT - spring

1шт.

NUT - 3/8" N.C. hex.

2шт.

12

B11740

ANCHOR - spring

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/nut and L.W.

1шт.

13

B11275

CLIP - stop, handle

1шт.

14

B11273

HANDLE - belt tightener

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. w/nut and L.W.

2шт.
