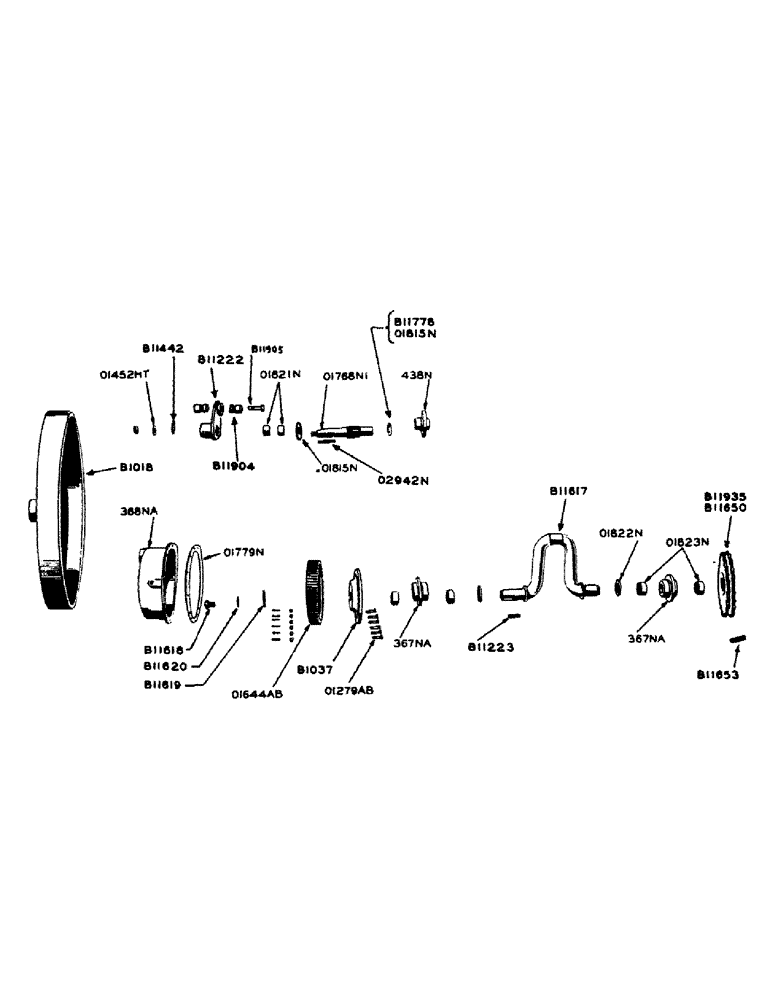

Запчасти Case IH 130 (10) - FLYWHEEL

B1018

FLYWHEEL

1шт.

3/8" x 1/2" N.C. Allen hd. C.P. set screw

1шт.

1/8" str. Lincoln fitting #5000

1шт.

B11222

ARM - hub, flywheel

1шт.

3/8" x 1/2" N.C. Allen hd. C.P. set screw

1шт.

B11442

WASHER - (3-1/8" O.D. x 1-3/16" I.D. #10 ga.) outer end of flywheel

1шт.

B11778

WASHER - (2-3/4" O.D. x 1-29/32 I.D.) flywheel shaft (As required)

1шт.

B11904

COLLAR - safety bolt, flywheel and flywheel hub arm

2шт.

B11905

BOLT - flywheel shear

2шт.

5/16" N.C. hex. nut w/plain washers

2шт.

438N

BEARING - flywheel shaft

1шт.

1/2" x 1-3/4" N.C. carr. bolt w/hex. nut and lockwasher

2шт.

1/8" str. Lincoln fitting #5000

1шт.

O1452HT

LOCKWASHER - flywheel shaft

1шт.

O1768N1

SHAFT AND PINION - flywheel

1шт.

1-1/8" N.F. hex. jam nut

1шт.

O1815N

WASHER - (2-3/4" O.D. x 1-29/32" I.D. #16 ga.) flywheel shaft (As required)

2шт.

O2942N

KEY - flywheel hub and arm

1шт.

O2943N

COLLAR - safety (Use B11904) see note

1шт.

B1037

HUB - crank gear CRAKSHAFT

1шт.

B11223

KEY

- crank hub CRANKSHAFT

2шт.

B11617

CRANK - plunger CRANKSHAFT

1шт.

3/4" x 1-1/4" N.F. hex. hd. cap screw w/lockwasher CRANKSHAFT

1шт.

B11618

CAP SCREW - gear hub washer CRANKSHAFT

1шт.

B11619

WASHER - (3-1/2" O.D. x 1-1/32" I.D.) hub.CRANKSHAFT

1шт.

B11620

LOCKWASHER - gear hub CRANKSHAFT

1шт.

B11650

SPROCKET - (50T-50T) double, pickup and knotter drive (Prior to Serial #633701) See B11935 CRANKSHAFT

1шт.

B11653

KEY - crankshaft sprocket CRANKSHAFT

1шт.

B11935

SPROCKET - (42T-50T) double, pickup and knotter drive (Serial #633701 and after) See B11650. For slowing pickup speed to normal when using plunger speed of 66 strokes per minute. CRANKSHAFT

1шт.

441N

BEARING (Use 367NA) CRANKSHAFT

1шт.

O1279AB

BOLT - ring gear CRANKSHAFT

6шт.

1/2" N.F. hex. castellated nut CRANKSHAFT

6шт.

3/32" x 7/8" cotter pin CRANKSHAFT

6шт.

O1644AB

GEAR - ring CRANKSHAFT

1шт.

O1779N

GASKET - gear housing CRANKSHAFT

1шт.

O1821N

BUSHING - gear housing CRANKSHAFT

2шт.

O1822N

WASHER - crankshaft CRANKSHAFT

2шт.

O1823N

BUSHING - crankshaft bearing CRANKSHAFT

4шт.

367NA

BEARING - crankshaft (Includes 2-O1823N bushings) CRANKSHAFT

2шт.

3/8" x 1-1/2" N.F. hex. hd. cap screw w/hex. nut and lockwasher CRANKSHAFT

8шт.

368NA

HOUSING - gear (Includes 2-O1821N bushings) CRANKSHAFT

1шт.

1/8" str. Lincoln fitting #5000 CRANKSHAFT

1шт.

1/2" x 2" N.F. hex. hd. cap screw w/hex. nut and lockwasher CRANKSHAFT

2шт.

3/8" x 1-1/2" N.F. hex. hd. cap screw w/hex. nut and lockwasher CRANKSHAFT

11шт.

1/8" sq. hd. pipe plug CRANKSHAFT

1шт.

1/2" sq. hd. pipe plug CRANKSHAFT

2шт.
