Запчасти Case IH 130 (09) - MAIN DRIVE ENGINE EQUIPPED BALERS

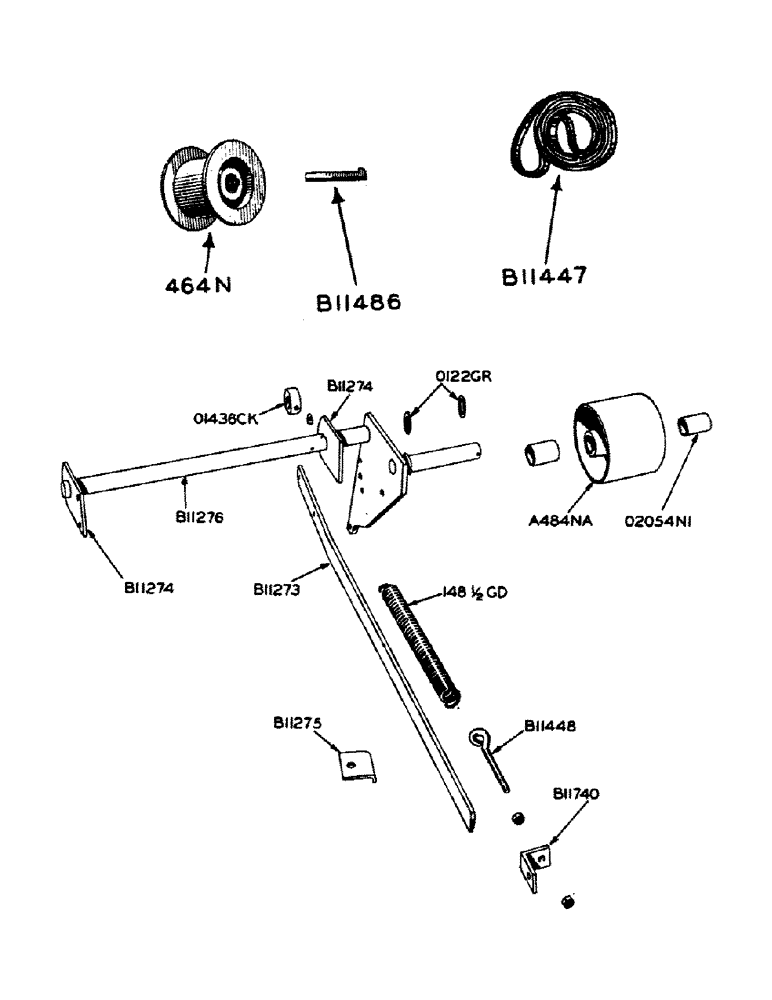

Схема запчастей Case IH 130 - (09) - MAIN DRIVE ENGINE EQUIPPED BALERS

№

Артикул

Название

Примечание

Количество

B11447

BELT, 4.00" W x 127.00" L, Main Drive 4.00" W x 127.00" L

1шт.

B11486

KEY - engine pulley

1шт.

464N

PULLEY - engine

1шт.

B11273

HANDLE - belt tightener MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

1шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

2шт.

B11274

BRACKET - belt tightener MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

2шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

4шт.

B11275

CLIP - belt tightener stop MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

1шт.

B11276

ARM - belt tightener, main drive MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

1шт.

3/16" x 2" cotter pin MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

2шт.

B11448

EYEBOLT - belt tightener spring MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

1шт.

3/8" N.C. hex. nut MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

2шт.

B11740

ANCHOR - belt tightener spring eye bolt MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

1шт.

3/8" x 1-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

2шт.

466N

PULLEY (Use A484NA) MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

1шт.

1481/2GD

SPRING - belt tightener MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

1шт.

O1436CK

COLLAR - belt tightener arm MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

1шт.

3/8" x 1/2" N.C. cup pt. set screw MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

1шт.

O122GR

WASHER - (1-1/2" O.D. x 1-1/32" I.D. #16 ga.) belt tightener MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

3шт.

O2054N1

BUSHING - main drive belt tightener pulley MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

2шт.

A484NA

PULLEY - belt tightener w/2-O2054N1 bushings MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

1шт.

1/8" str. Lincoln fitting #5000 MAIN DRIVE BELT TIGHTENER - ENGINE EQUIPPED BALER

1шт.

Выбрано товаров: 22
