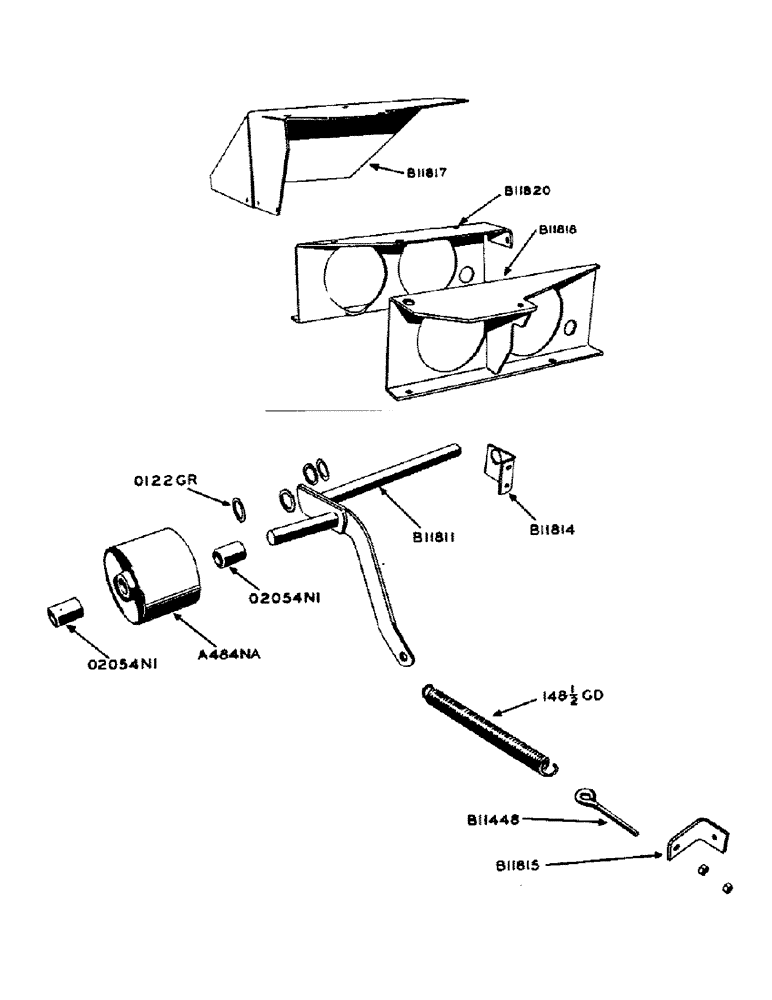

Запчасти Case IH 130 (08) - PLATFORM FOR P.T.O. GEAR BOX

B11817

SHEET - top, gear box mounting

1шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

8шт.

1/2" x 1-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

4шт.

B11818

CHANNEL - L.H., gear box base

1шт.

B11820

CHANNEL - R.H., gear box base

1шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

B11448

EYEBOLT - belt tightener spring MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

1шт.

3/8" N.C. hex. nut MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

2шт.

B11811

SHAFT - belt tightener MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

1шт.

3/16" x 2" cotter pin MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

4шт.

B11814

BRACKET - belt tightener shaft MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

1шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

2шт.

B11815

CLIP - belt tightener spring MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

1шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED

1шт.

B11822

BELT - main drive (For use with B1054 pulley for 58 plunger strokes per minute) See B11909 MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

1шт.

B11909

BELT - main drive (For use with B1062 pulley for 66 plunger strokes per minute) See B11822 MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

1шт.

466N

PULLEY (Use A484NA) MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

1шт.

1481/2GD

SPRING - belt tightener MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

1шт.

O122GR

WASHER - (1-1/2" O.D. x 1-1/32" I.D. #16 ga.) belt tightener shaft MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

4шт.

O2054N1

BUSHING - A484NA pulley MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

2шт.

A484NA

PULLEY - belt tightener w/2-O2054N1 bushings MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

1шт.

1/8" str. Lincoln fitting #5000 MAIN DRIVE BELT TIGHTENER - PTO EQUIPPED BALER

1шт.
