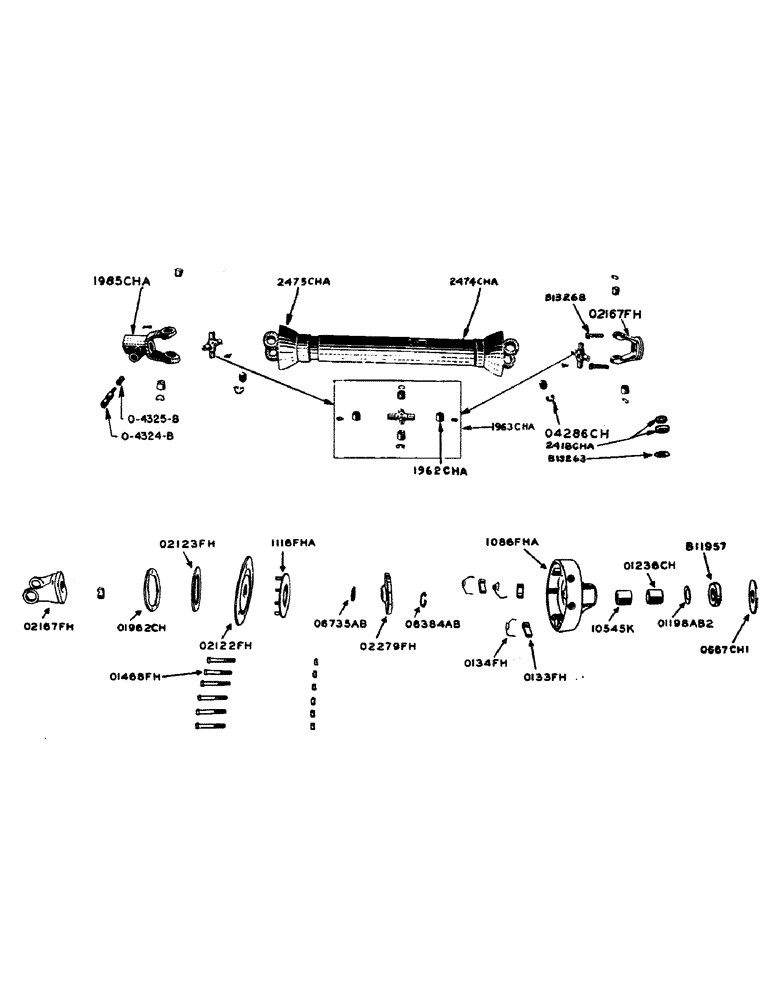

Запчасти Case IH 130 (06) - P.T.O. HOOK-UP

B13263

WASHER - (Cork) for needle bearing type universal joint

8шт.

B13268

BOLT - shear (3/8" x 1-1/4" N.C. hex. hd. cap screw #5 heat treated) for O2167FH yoke

2шт.

O4324B

X

PIN - hitch, universal joint and torque limit hub

1шт.

1/8" x 1/2" cotter pin

1шт.

O4325B

X

SPRING - hitch pin

1шт.

O4286CH

SNAP RING - for universal joint fork

8шт.

O2167FH

YOKE - universal torque limit hub

1шт.

1962CHA

KIT - needle assembly for needle bearing type joints (Consists of rollers, cups and B13263 cork washers)

8шт.

1963CHA

KIT - universal joint center parts (Consists of center cross, 4- 1962CHA needle cup kits and 40O4286CH snap rings) to repair needle bearing type joints or change over plain bearing joints to needle bearing type

2шт.

1985CHA

YOKE - (1-3/8" spline) universal joint w/O4324B pin and O4325B spring

1шт.

1/8" 45 degree Lincoln fitting #5200

1шт.

2418CHA

WASHER - (Cork) with retainer (For plain bearing joints as furnished with original equipment)

8шт.

2474CHA

SHIELD AND TUBE WITH UNIVERSAL JOINT YOKE

1шт.

2475CHA

SHIELD AND SHAFT WITH UNIVERSAL JOINT YOKE

1шт.

B11957

COLLAR - between O667CH1 washer and clutch hub OVER-RUNNING CLUTCH

1шт.

107FH

HUB (Use 1086FHA) OVER-RUNING CLUTCH

1шт.

O1198AB2

X

WASHER - (2-1/8" O.D. x 1-7/16" I.D. #16 ga.) shim, clutch hub (As required) OVER-RUNNING CLUTCH

4шт.

O6384AB

SNAP RING - bottom of O2779FH ratchet OVER-RUNNING CLUTCH

1шт.

O6735AB

WASHER - (1-9/16" O.D. x 25/32" I.D.) under slotted hex. nut on P.T.O. shaft OVER-RUNNING CLUTCH

1шт.

O667CH1

WASHER - (3" O.D. x 1-13/32" I.D.) - between clutch hub and P.T.O. shaft housing OVER-RUNNING CLUTCH

1шт.

O1236CH

BUSHING - (1-1/4") clutch hub. OVER-RUNNING CLUTCH

1шт.

O1962CH

WASHER - universal joint torque limit hub and fork OVER-RUNNING CLUTCH

1шт.

O133FH

PAWL - clutch OVER-RUNNING CLUTCH

3шт.

O134FH

SPRING - clutch OVER-RUNNING CLUTCH

3шт.

O1468FH

BOLT - universal joint mounting plate OVER-RUNNING CLUTCH

6шт.

7/16" N.F. hex. slotted nut. OVER-RUNNING CLUTCH

6шт.

1/8" x 3/4" cotter pin OVER-RUNNING CLUTCH

6шт.

O2122FH

PLATE - universal joint mounting OVER-RUNNING CLUTCH

1шт.

O2123FH

RING - locating, for universal joint hub OVER-RUNNING CLUTCH

1шт.

O2279FH

RATCHET - clutch OVER-RUNNING CLUTCH

1шт.

10545K

BUSHING

- (1-1/2") clutch hub OVER-RUNNING CLUTCH

1шт.

1086FHA

HUB - over-running clutch w/O1236CH and 10545K bushings OVER-RUNNING CLUTCH

1шт.

1/8" str. Lincoln fitting #5000 OVER-RUNNING CLUTCH

1шт.

1116FHA

ANCHOR - bolt and clip retainer OVER-RUNNING CLUTCH

1шт.

5/16" N.C. hex. nut OVER-RUNNING CLUTCH

4шт.

5/16" lockwasher OVER-RUNNING CLUTCH

4шт.
