Запчасти Case IH 130 (54) - STARTING MOTOR

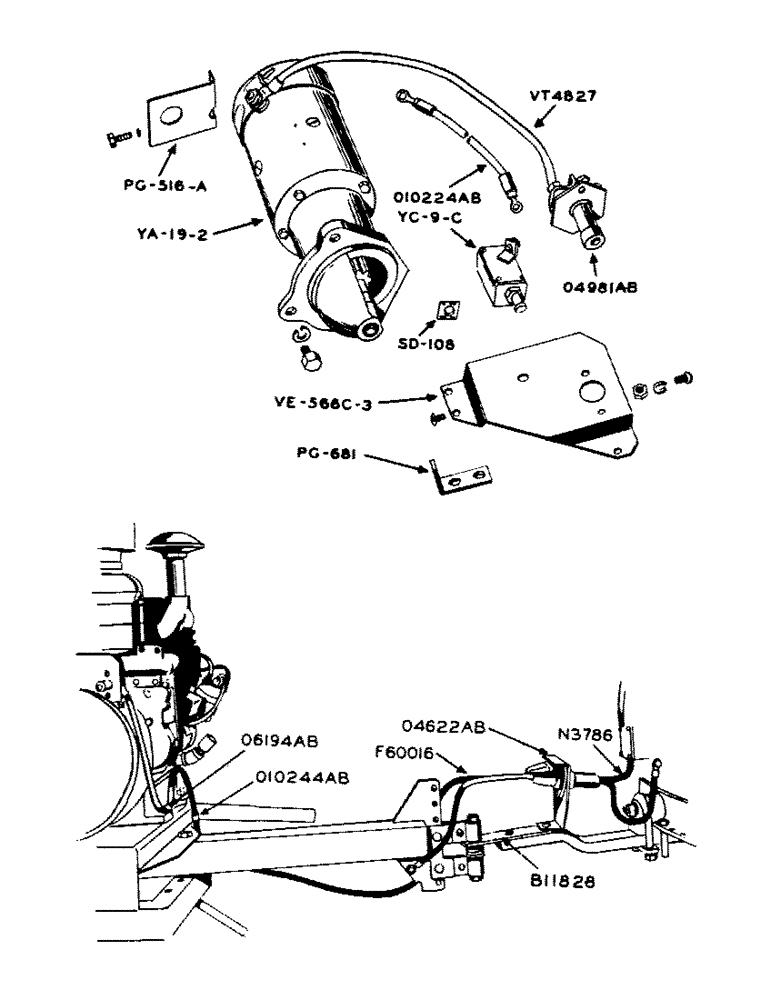

Схема запчастей Case IH 130 - (54) - STARTING MOTOR

Артикул

Название

Примечание

Количество

PG-516-A

BRACKET - starter support

1шт.

1/4" - 20 x 3/4" hex. hd. screw

2шт.

1/4" plain copper washer

2шт.

PG-681

STRAP - control panel

1шт.

SD-108

TAG - magneto ground switch

1шт.

VE-566C-3

PANEL - control

1шт.

1/4" - 20 x 1/2" rd. hd. screw w/hex. nut and lockwasher

1шт.

YA-19-2

MOTOR - starting (Auto-lite #MZ-4184) See note

1шт.

3/8" - 24 x 1-1/8" hex. hd. cap screw w/lockwasher

3шт.

YC-9-C

SWITCH - magneto ground

1шт.

O4981AB

SWITCH

- starter

1шт.

1/4" - 20 x 1/2" rd. hd. screw w/hex. nut and lockwasher

2шт.

O10244AB

CABLE -, Serial Range: switch-magneto

1шт.

VT4827

CABLE -, Serial Range: switch-starter

1шт.

F60016

CABLE - (70-5/16" long) starter, baler end (Includes N4487 plug) STARTING MOTOR CABLE

1шт.

N3786

CABLE - (99" long) starter, tractor end (Includes N4486 plug) STARTING MOTOR CABLE

1шт.

N4486

PLUG - N3786 cable (Tractor end) STARTING MOTOR CABLE

1шт.

N4487

PLUG - F60016 cable (Baler end) STARTING MOTOR CABLE

1шт.

O4622AB

BRACKET - tractor drawbar STARTING MOTOR CABLE

1шт.

1/4" x 7/8" N.C. hex. hd. cap screw w/hex. nut and lockwasher STARTING MOTOR CABLE

3шт.

1/2" x 1-3/4" N.F. hex. bolt w/hex. nut and lockwasher STARTING MOTOR CABLE

1шт.

1/2" plain washer STARTING MOTOR CABLE

1шт.

O6194AB

CLIP - starter cable F60016 to engine base STARTING MOTOR CABLE

1шт.

O7007AB

CLIP - starter cable F60016 to baler hitch STARTING MOTOR CABLE

1шт.

O10244AB

CLIP - starter cable F60016 to engine platform STARTING MOTOR CABLE

1шт.

Выбрано товаров: 25
