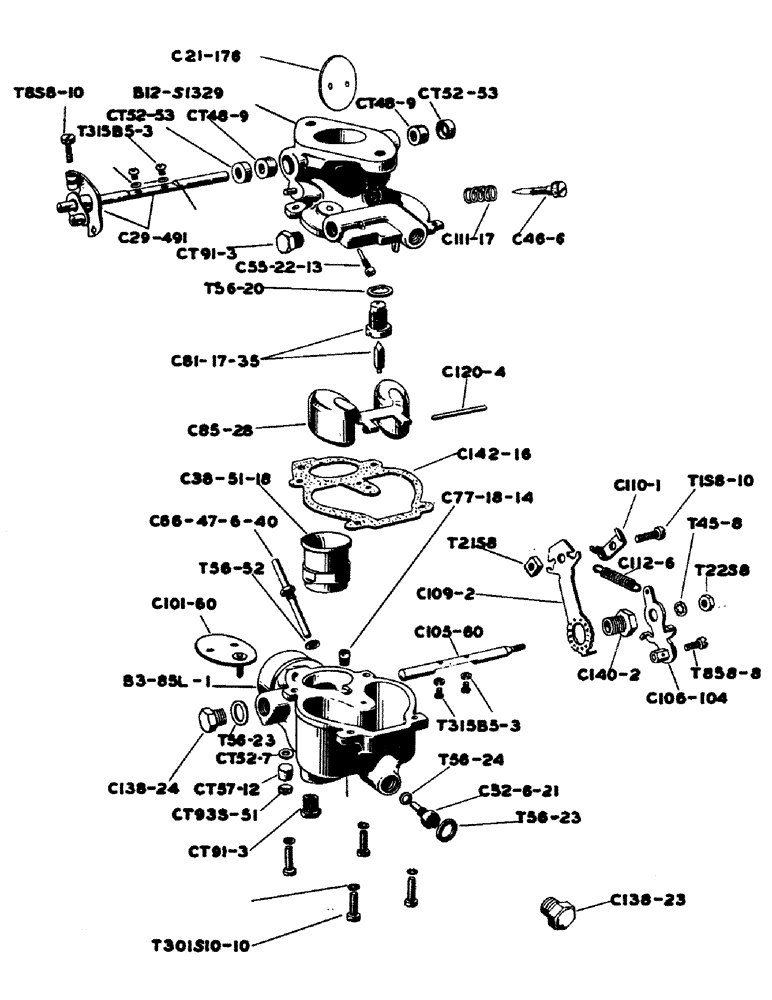

Запчасти Case IH 130 (52) - B13258 ZENITH CARBURETOR, MODEL 161-7, OUTLINE NO. S1329

B3-85L-1

BOWL - fuel

1шт.

B12-S1329

BODY - throttle, assembly (Consists of throttle body complete with throttle shaft and lever, stop lever and stop lever pin)

1шт.

C21-176

PLATE - throttle

1шт.

C29-491

SHAFT AND LEVER - throttle

1шт.

C38-51-18

VENTURI

1шт.

C46-6

SCREW - idle adjusting

1шт.

Part of Repair Kit P/N KS1329

1шт.

C52-6-21

JET - main

1шт.

C55-22-13

JET - idling

1шт.

Part of Repair Kit P/N KS1329

1шт.

C66-47-6-40

JET - discharge

1шт.

Part of Repair Kit P/N KS1329

1шт.

C77-18-14

VENT - well

1шт.

Part of Repair Kit P/N KS1329

1шт.

C81-17-35

VALVE AND SEAT - fuel

1шт.

Part of Repair Kit P/N KS1329

1шт.

C85-28

FLOAT

1шт.

C101-60

PLATE - choke

1шт.

C105-60

SHAFT - choke

1шт.

C106-104

LEVER - choke

1шт.

C109-2

BRACKET - choke

1шт.

C110-1

CLAMP - bracket tube

1шт.

C111-17

SPRING - idle adjusting screw

1шт.

C112-6

SPRING - lever return

1шт.

C120-4

AXLE - float

1шт.

Part of Repair Kit P/N KS1329

1шт.

C138-23

PLUG - main jet passage

1шт.

C138-24

PLUG - choke shaft hole

1шт.

C29-491

SHAFT AND LEVER - throttle

1шт.

C140-2

SCREW - bracket

1шт.

C142-16

GASKET -, Serial Range: bowl-body

1шт.

Part of Repair Kit P/N KS1329

1шт.

CT48-9

SEAL

- shaft packing

2шт.

CT52-7

WASHER - intake drain

1шт.

Part of Repair Kit P/N KS1329

1шт.

CT52-53

RETAINER - shaft seal

2шт.

CT57-12

WASHER - drain felt

1шт.

Part of Repair Kit P/N KS1329

1шт.

CT91-3

PLUG - fuel inlet

1шт.

CT91-3

PLUG - bowl drain

1шт.

CT93S-51

RETAINER - felt washer

1шт.

Part of Repair Kit P/N KS1329

1шт.

T1S8-10

SCREW - bracket tube clamp

1шт.

T8S8-8

SCREW - swivel

1шт.

T8S8-10

SCREW - throttle stop

9шт.

T21S8

NUT - clamp screw

1шт.

T22S8

NUT - choke shaft

1шт.

T45-8

LOCKWASHER - shaft nut

1шт.

T56-20

WASHER - fuel valve seat fibre

1шт.

Part of Repair Kit P/N KS1329

1шт.

T56-23

WASHER - main jet passage plug

1шт.

Part of Repair Kit P/N KS1329

1шт.

T56-23

WASHER - shaft hole plug

1шт.

Part of Repair Kit P/N KS1329

1шт.

T56-24

WASHER - main jet

1шт.

Part of Repair Kit P/N KS1329

1шт.

T56-52

WASHER - discharge jet

1шт.

Part of Repair Kit P/N KS1329

1шт.

T301S10-10

SCREW -, Serial Range: bowl-body

4шт.

T315B5-3

SCREW - throttle plate

2шт.

Part of Repair Kit P/N KS1329

1шт.

T315B5-3

SCREW - choke plate

2шт.

C181-66

GASKET - set

1шт.

KS1329

KIT repair Includes: P/N's C46-6, C55-22-13, C66-47-6-40, C77-18-14, C81-17-35, C120-4, C142-16, CT52-7, CT57-12, CT93S-51, T56-20, T56-23, T56-24, T56-52 and T315B5-3

1шт.
