Запчасти Case IH 130 (50) - PARTS FOR O3990AB1 FUEL STRAINER

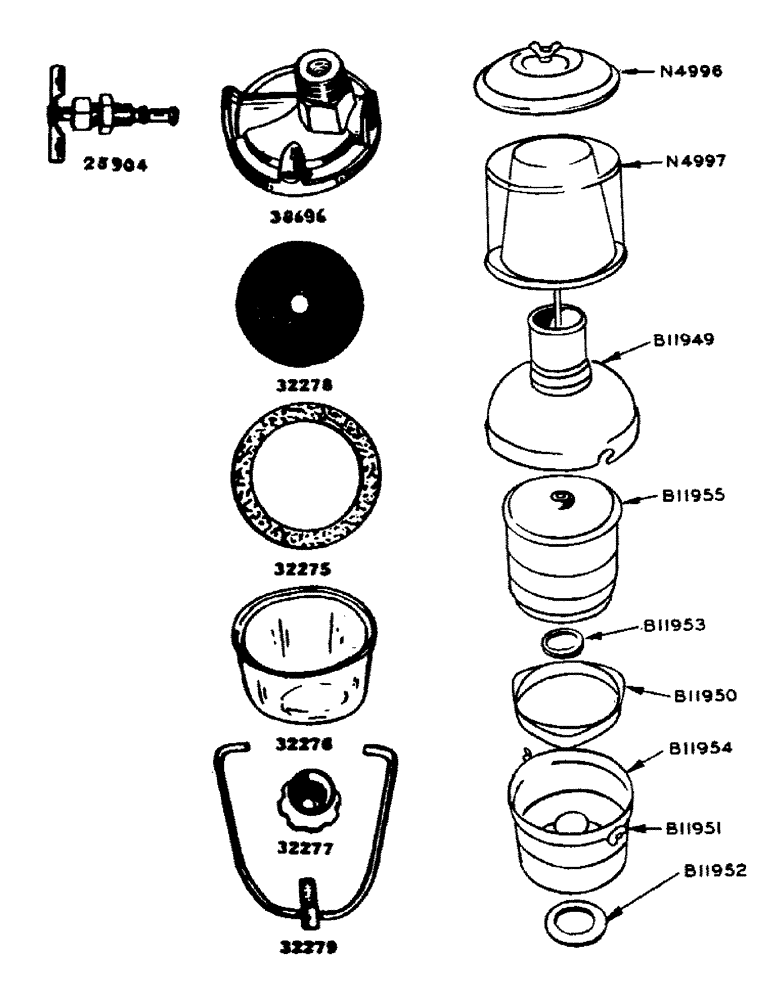

Схема запчастей Case IH 130 - (50) - PARTS FOR O3990AB1 FUEL STRAINER

Артикул

Название

Примечание

Количество

25904

VALVE - fuel strainer

1шт.

32275

O-RING

GASKET - fuel strainer

1шт.

32276

BOWL - fuel strainer

1шт.

32277

CUP AND NUT - fuel strainer

1шт.

32278

ROLLER

SCREEN - fuel strainer, assembly

1шт.

32279

ADAPTER

BAIL - fuel strainer, assembly

1шт.

38696

PIPE FITTING

COVER - fuel strainer

1шт.

B11949

PRE-CLEANER SLEEVE WITH AIR CLEANER CAP PARTS FOR AIR CLEANER

1шт.

B11950

RUBBER SPACER GASKET PARTS FOR AIR CLEANER

1шт.

B11951

WING NUT - on side PARTS FOR AIR CLEANER

2шт.

B11952

MOUNTING GASKET PARTS FOR AIR CLEANER

1шт.

B11953

GASKET - filter unit to body PARTS FOR AIR CLEANER

1шт.

B11954

AIR CLEANER BODY ASSEMBLY PARTS FOR AIR CLEANER

1шт.

B11955

AIR CLEANER FILTER UNIT PARTS FOR AIR CLEANER

1шт.

N4996

PRE-CLEANER CAP PARTS FOR AIR CLEANER

1шт.

N4997

PRE-CLEANER BODY PARTS FOR AIR CLEANER

1шт.

Выбрано товаров: 16
