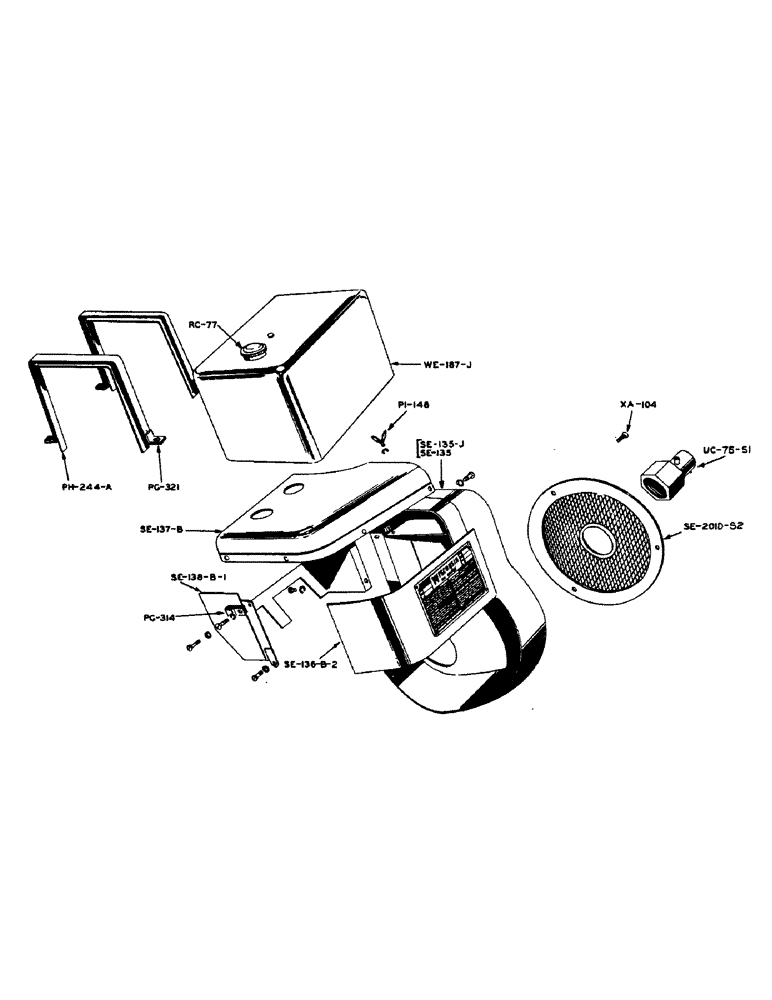

Запчасти Case IH 130 (48) - AIR SHROUD AND FUEL TANK

B11736

PLATFORM - gas tank

1шт.

PC-475-D

STUD - rotating screen (For use with NC-145B-8 flywheel)

3шт.

PG-314

CLIP - spark plug cables

1шт.

1/4" - 20 x 1" rd. hd. mach. screw

1шт.

1/4" lockwasher

1шт.

PG-321

STRAP - fuel tank

2шт.

PH-244-A

STRIP - felt, fuel tank strap

2шт.

PH-428

GROMMET - SE-201D-S2 rotating screen

1шт.

PI-148

THUMB SCREW - mounting air shroud cover

6шт.

RC-77

CAP - fuel tank

1шт.

SE-135

SHROUD - flywheel air (For engine without starter) See SE-135-J

1шт.

5/16" - 18 x 1/2" hex. hd. cap screw

3шт.

1/4" - 20 x 1/2" rd. hd. mach. screw

4шт.

1/4" - 20 x 3/4" rd. hd. mach. screw

1шт.

1/4" lockwasher

5шт.

5/16" lockwasher

3шт.

SE-136-B-2

SHROUD - cylinder

1шт.

SE-137-B

COVER - air shroud

1шт.

SE-138-B-1

DEFLECTOR - heat, air shroud

1шт.

SE-201-C

SCREEN - flywheel rotating (For use with NC-145B-8 flywheel) See SE-201D-S2

1шт.

SE-201D-S2

SCREEN - flywheel rotating (For use with NC-145G-8 and NC-145G-9-S1 flywheel) See SE-201-C

1шт.

SE-135-J

SHROUD - flywheel air (For engines with starter) See SE-135

1шт.

WE-187-J

TANK - fuel

1шт.

XA-104

SCREW - self locking, rotating screen

3шт.

UC-75-S1

NUT - starting crank (For use with NC-145G-8 and NC-145G-S1 flywheel) See UC-156-A

1шт.

UC-156-A

NUT - starting (For use with NC-145B-8 flywheel) See UC-75-S1

1шт.
