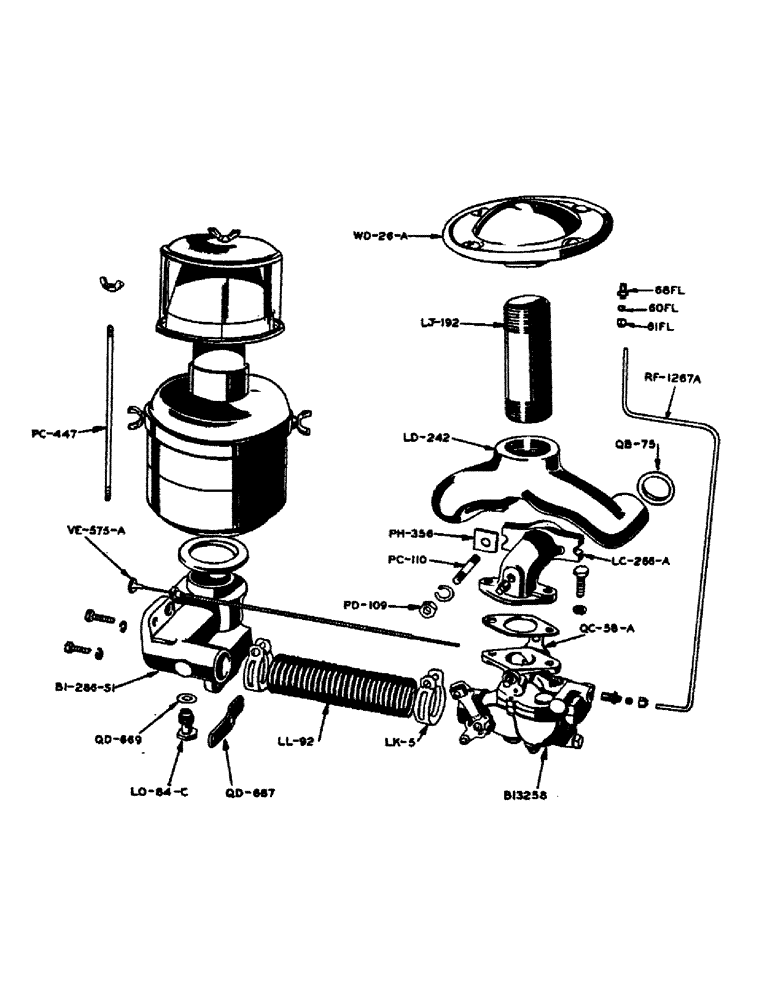

Запчасти Case IH 130 (44) - CARBURETOR, MANIFOLD AND AIR CLEANER

B13258

CARBURETOR - (Zenith model 161-7, outline No. S1329)

1шт.

5/16" - 18 x 7/8" hex. hd. cap screw

2шт.

5/16" lockwasher

2шт.

O3990AB1

X

STRAINER - fuel, complete

1шт.

B1-286-S1

AIR CLEANER BRACKET

1шт.

5/16" - 18 x 1" hex. hd. cap screw

2шт.

5/16" lockwasher

2шт.

LC-266-A

INLET - manifold

1шт.

1/8" pipe plug

1шт.

LD-242

MANIFOLD - exhaust

1шт.

LJ-192

PIPE NIPPLE FOR MUFFLER

1шт.

LK-5

HOSE CLAMP FOR AIR CLEANER CONNECTION

2шт.

LL-92

HOSE CONNECTION FOR AIR CLEANER

1шт.

LO-84-C

BREATHER ASSEMBLY

1шт.

LO-98

AIR CLEANER (United Specialties #12C2)

1шт.

PC-110

STUD - manifold to cylinder block mounting

2шт.

3/8" lockwasher

2шт.

PC-447

STUD FOR AIR CLEANER TO BRACKET MOUNTING

1шт.

1/4" - 20 wing nut

1шт.

PD-109

NUT - (3/8" - 24 thrd.) manifold to cylinder block studs

2шт.

PH-356

CLAMP WASHER FOR MANIFOLD MOUNTING

2шт.

QB-75

GASKET FOR MANIFOLD MOUNTING

3шт.

QC-58-A

GASKET FOR CARBURETOR MOUNTING

1шт.

QD-667

GASKET FOR AIR CLEANER BRACKET TO GEAR COVER

1шт.

QD-669

GASKET FOR BREATHER

1шт.

RF-794-A

PIPE NIPPLE FOR MOUNTING FUEL STRAINER TO CARBURETOR

1шт.

RF-1267-A

LINE - fuel, less fittings

1шт.

68fl 1/4" x 1/8" connector cpt., w/nut and sleeve

2шт.

60 FL sleeve for 68FL

2шт.

61 FL 1/4" nut for 68FL

2шт.

VE-575-A

CHOKE CONTROL

1шт.

WD-26-A

MUFFLER

1шт.
