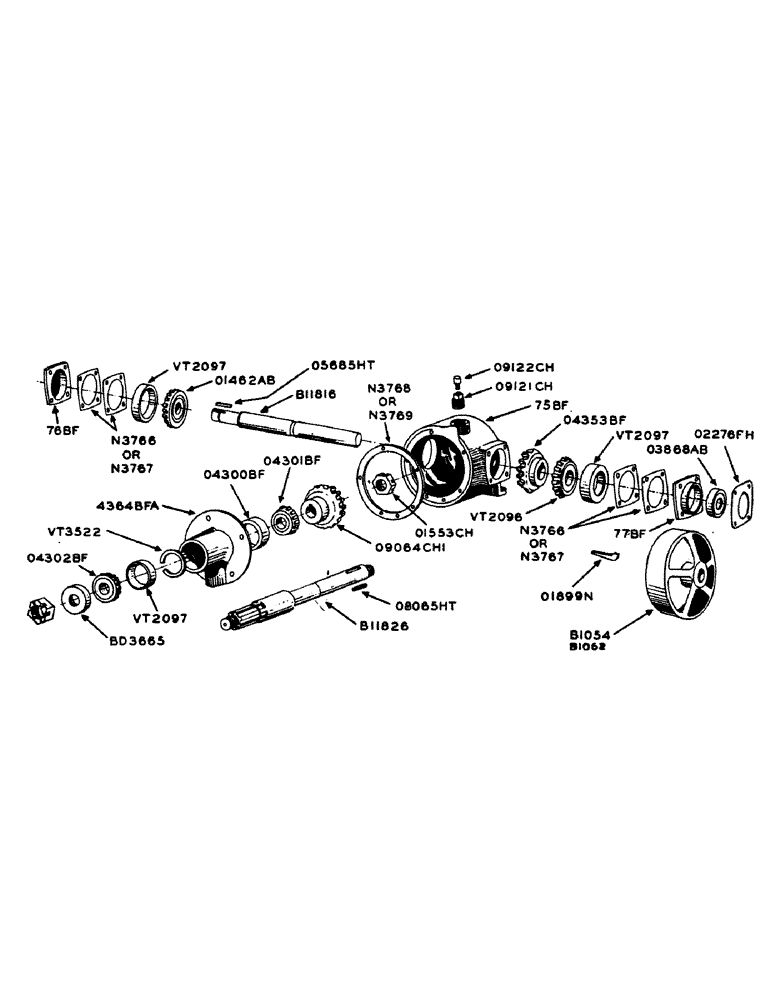

Запчасти Case IH 130 (05) - GEAR BOX

B1054

PULLEY - (15-1/4" dia.) P.T.O. drive (58 plunger strokes per minute)

1шт.

B1062

PULLEY - (17-3/4" dia.) P.T.O. drive (66 plunger strokes per minute)

1шт.

BD3665

SEAL

- P.T.O. shaft

1шт.

B11816

SHAFT - cross

1шт.

B11826

SHAFT - P.T.O. this shaft has been changed from 11-11/16" long to 12-5/16" long to give clearance on P.T.O. hookup using B1062 17-3/4" dia. pulley

1шт.

N3766

SHIM,.005" Thk

For 76BF and 77BF caps .005" Thk

2шт.

N3767

SHIM - (0.10") for 76BF and 77BF caps

6шт.

N3768

SHIM - (.005") P.T.O. shaft housing

1шт.

N3769

SHIM - (.010") P.T.O. shaft housing

3шт.

74BF

HOUSING (Use 4364BFA)

1шт.

75BF

BOX - gear

1шт.

5/8" x 2-1/2" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

1/8" pipe plug

1шт.

1/4" pipe plug

1шт.

76BF

CAP - cross shaft bearing, R.H. (Closed end)

1шт.

5/16" x 1" N.C. hex. hd. cap screw w/lockwasher

4шт.

77BF

CAP - cross shaft bearing, L.H. (Open end)

1шт.

5/16" x 1" N.C. hex. hd. cap screw w/lockwasher

4шт.

O1462AB

X

CONE - (Timken #14125A) cross shaft bearing, R.H.

1шт.

O3868AB

OIL SEAL

- 77BF cap, cross shaft bearing, L.H.

1шт.

O4300BF

ANGLE BAR

CUP - (Timken #2729) bearing, P.T.O. shaft rear

1шт.

O4301BF

CONE

- (Timken #2785) bearing, P.T.O. shaft rear

1шт.

O4302BF

BEARING, CONE

CONE - (Timken #14131) bearing, P.T.O. shaft front

1шт.

O4353BF

PINION - (15T) bevel, cross shaft

1шт.

O1553CH

X

NUT - (1" N.F. slotted shear) P.T.O. shaft, rear

1шт.

O9064CH1

GEAR - (19T) bevel, P.T.O. shaft

1шт.

O9121CH

CAP - filler, gear box

1шт.

O9122CH

VALVE - breather (1/8" pipe thread)

1шт.

O2276FH

WASHER - between 77BF cap and drive pulley

1шт.

O5685HT

KEY - O4353BF cross shaft pinion

1шт.

O8065HT

KEY

- O9064CH1 P.T.O. bevel gear

1шт.

O1899N

KEY - drive pulley

1шт.

VT2096

X

CONE - (Timken #14137A) cross shaft bearing, L.H.

1шт.

VT2097

X

CUP - (Timken #14276) 2 for cross shaft and 1 for P.T.O. shaft front

3шт.

VT3522

X

SNAP RING - P.T.O. shaft outer bearing

1шт.

4364BFA

HOUSING - P.T.O. shaft bearing (Includes 1-O4300BF cup, 1-VT2097 cup and 1-VT3522 snap ring)

1шт.

3/8" x 1" N.C. hex hd. cap screw w/lockwasher

3шт.

3/8" 1-1/4" N.C. hex hd. cap screw w/lockwasher

2шт.
