Запчасти Case IH 130 (38) - DUAL WHEEL

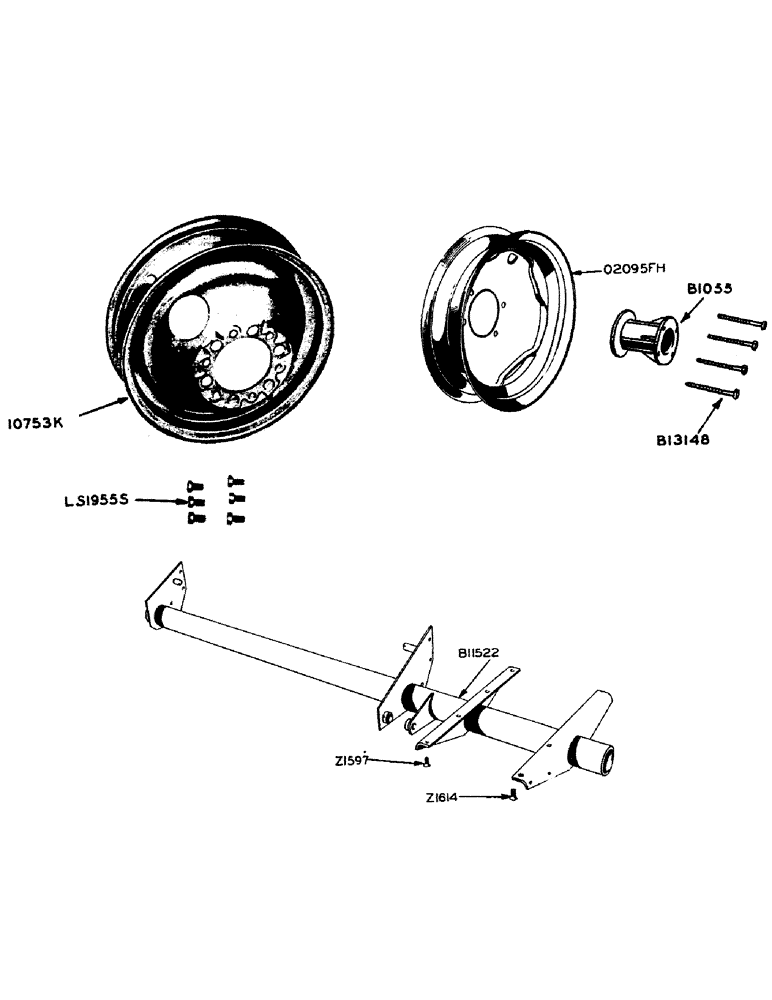

Схема запчастей Case IH 130 - (38) - DUAL WHEEL

Артикул

Название

Примечание

Количество

10753K

WHEEL - for 5.50 x 16 4-ply implement tire

1шт.

LS1955S

BOLT - wheel lug

6шт.

B1055

BOLT

SPACER - wheel RIGHT HAND DUAL WHEEL

1шт.

B13148

X

BOLT - wheel lug RIGHT HAND DUAL WHEEL

4шт.

O2095FH

WHEEL - for 5.90 x 15 4-ply implement tire and tube valve TR-15 RIGHT HAND DUAL WHEEL

1шт.

B11522

TUBE - wheel spindles AXLE

1шт.

Z1597

X

BOLT - (3/8" x 1-1/4" #3 plow w/hex. nut) axle

4шт.

3/8" lockwasher AXLE

2шт.

Z1614

BOLT - (1/2" x 1-1/2" #3 plow w/hex. nut) axle

2шт.

1/2" lockwasher AXLE

2шт.

Выбрано товаров: 10
