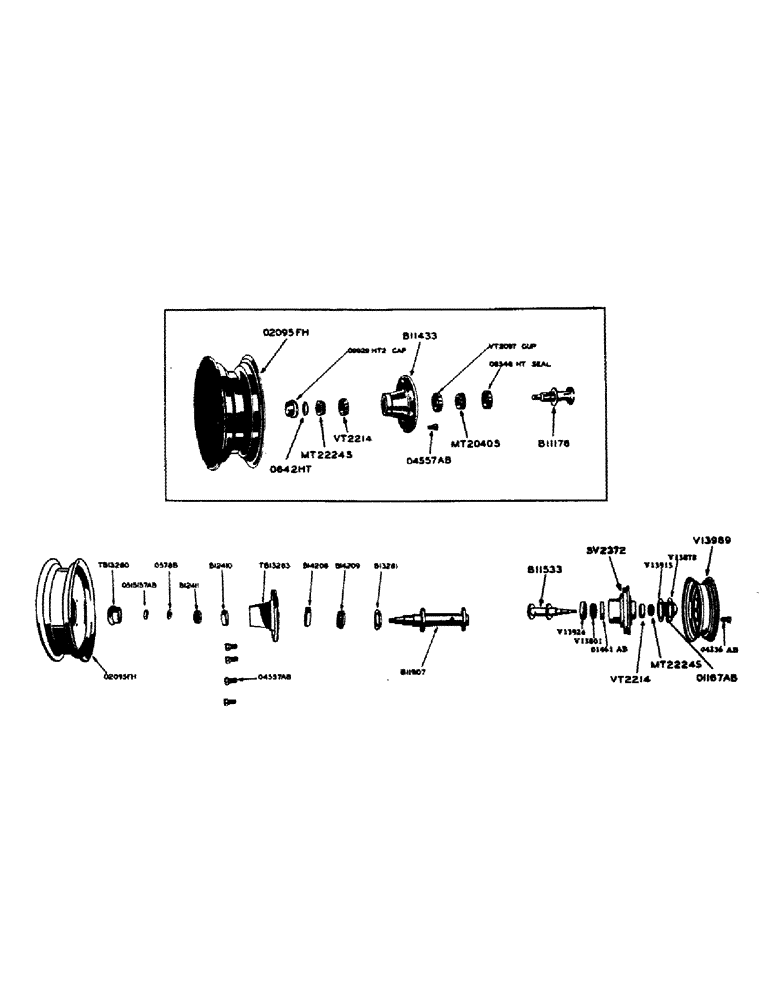

Запчасти Case IH 130 (37) - WHEELS

B1016

HUB - wheel (Use B11433)

1шт.

B11176

SPINDLE - R.H. wheel (Prior to serial #633701) See B11907

1шт.

3/4" N.F. hex. slotted nut

1шт.

1/8" x 1-1/4" cotter pin

1шт.

B11433

HUB - R.H. wheel w/1-VT2097 and VT2214 cups (Prior to serial #633701) See TB12383

1шт.

B11533

SPINDLE - L.H. wheel

1шт.

3/4" N.F. hex. slotted nut

1шт.

1/8" x 1-1/4" cotter pin

1шт.

B11907

SPINDLE - R.H. wheel (Serial #633701 and after) See B11176

1шт.

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - (Timken #LM67101) inner, R.H. wheel hub (Serial #633701 and after) See VT2097

1шт.

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - (Timken #LM67048) inner, R.H. wheel hub (Serial #633701 and after) See MT2040S

1шт.

B12410

BEARING, CUP,1.782" OD

CUP - (Timken #11910) outer, R.H. wheel hub (Serial #633701 and after) See VT2214

1шт.

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - (Timken #LM11949) outer, R.H. wheel hub (Serial #633701 and after) See MT2224S

1шт.

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

OIL SEAL - for TB12383 hub (Serial #633701 and after) See O8546HT

1шт.

TB1056

HUB - wheel (Use TB13283)

1шт.

TB13280

X

CAP - hub, for TB13283 hub (Serial #633701 and after) See O9929HT2

1шт.

TB13283

X

HUB - wheel, w/B12408 and B12410 bearing cups, 4-O4557AB bolts and 1-TB13280 hub cap (Serial #633701 and after) See B11433

1шт.

VR2708

HUB - (Use SV2372)

1шт.

O578B

X

WASHER - (1-1/4" O.D. x 21/32" I.D. #16 ga.) wheel spindle (Serial #633701 and after) See O642HT

1шт.

O1167AB

X

WASHER - (1-1/4" O.D. x 49/64" I.D. #14 ga.) L.H. wheel spindle

1шт.

O1461AB

X

CUP - (Timken #14274) inner, L.H. wheel hub

1шт.

O4236AB

X

BOLT - wheel hub L.H.

6шт.

O4557AB

BOLT - wheel hub, R.H.

4шт.

O5157AB

NUT - wheel spindle (Serial #633701 and after)

1шт.

O642HT

WASHER - (1-9/16" O.D. x 25/32" I.D.) R.H. wheel spindle (Prior to serial #633701) See O578B

1шт.

O2095FH

WHEEL - R.H., for 5.90 x 15 4-ply implement tire

1шт.

O8546HT

SEAL - grease, R.H. wheel (Prior to serial #633701) See B13281

1шт.

O9929HT2

X

CAP - hub, R.H. wheel (Prior to serial #633701) See TB13280

1шт.

MT2040S

X

CONE - (Timken #14136A) inner, R.H. wheel hub (Prior to serial #633701) See B12411

1шт.

MT2224S

X

CONE - (Timken #O9081) outer L.H. wheel hub

1шт.

MT2224S

X

CONE - (Timken #O9081) outer R.H. wheel hub (Prior to serial #633701) See B12411

1шт.

V13801

X

CONE - (Timken #14138-A) inner, L.H. wheel hub

1шт.

V13878

CAP - hub, L.H. wheel

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/lockwasher

4шт.

V13913

X

GASKET - hub cap, L.H. wheel

1шт.

V13924

SEAL - grease, L.H. wheel

1шт.

V13989

GEAR

WHEEL - L.H. for 6.70 x 15 6-ply implement tire

1шт.

VT2097

X

CUP - (Timken #14276) inner, R.H. wheel hub (Prior to serial #633701) See B12408

1шт.

VT2214

X

CUP - (Timken #O9195) outer, L.H. wheel hub

1шт.

VT2214

X

CUP - (Timken #O9195) outer, R.H. wheel hub (Prior to serial #633701) See B12410

1шт.

SV2372

HUB - L.H. wheel w/1-O1461AB and VT2214 cups

1шт.
