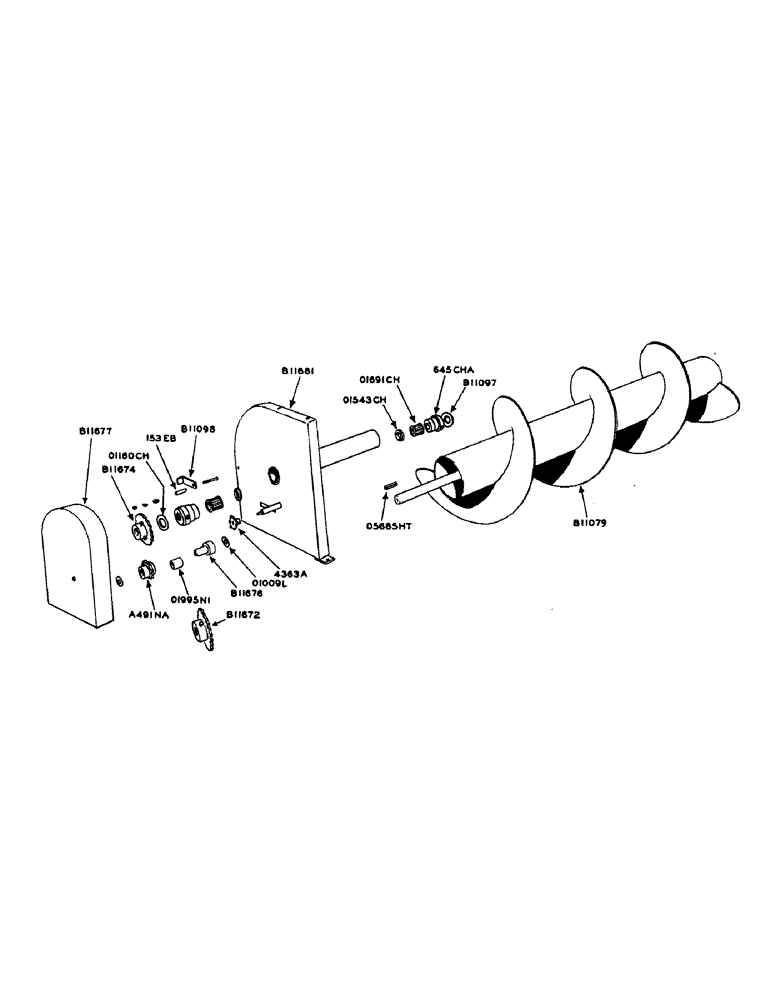

Запчасти Case IH 130 (36) - AUGER AND AUGER DRIVE

B11079

AUGER

1шт.

B11097

WASHER - (4" O.D. x 1-9/32" I.D. #14 ga.) auger bearing tube

1шт.

B11098

HOLDER - twine box cover

1шт.

B11672

SPROCKET - (33T) auger drive

1шт.

3/8" x 3/4" N.C. sq. hd. C.P. set screw

2шт.

B11674

SPROCKET - (20T) auger driven

1шт.

3/8" x 3/4" N.C. sq. hd. C.P. set screw

2шт.

B11676

STUD - idler sprocket

1шт.

B11677

GUARD - chain, auger drive chain

1шт.

B11681

PLATE - auger bearing

1шт.

5/16" x 2" N.F. hex. hd. cap screw w/hex. nut

1шт.

3/8" x 3/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

3шт.

5/16" plain washer

1шт.

3/8" plain washer

1шт.

B12505

LINK

- conn. #50 roller chain

1шт.

B12506

LINK

- offset, #50 roller chain

1шт.

B12507

CHAIN (AG)

LINK - roller, #50 roller chain

1шт.

4363A

NUT - hand, chain guard

1шт.

O1160CH

X

WASHER - (2-3/16" O.D. x 1-17/64" I.D. #11 ga.) auger shaft

1шт.

O1543CH

WASHER - Hyatt bearing retainer in housing

2шт.

O1691CH

BEARING - (Hyatt #94732)

2шт.

153EB

SPRING - twine box cover holder

1шт.

O5685HT

KEY - auger drive sprocket

1шт.

O9129HT

CHAIN - auger drive (Use 1-B12474 chain, 1-B12475 chain, 2- B12505 conn. link, 2-B12506 offset link, and 2-B12507 roller link #50)

1шт.

O1009L

X

WASHER - A491NA idler sprocket

1шт.

O1995N1

BUSHING - tightener sprocket A491NA

1шт.

645CHA

BEARING - auger, w/housing (Includes 1-O1543CH and 1-O1691CH bearing)

2шт.

1/8" str. Lincoln fitting #5000

2шт.

A491NA

SPROCKET - (12T) idler, w/O1995N1 bushing, auger drive chain

1шт.

1/2" x 3-1/2" N.C. carr. bolt w/hex. nut and lockwasher

1шт.

1/2" plain washer

1шт.
