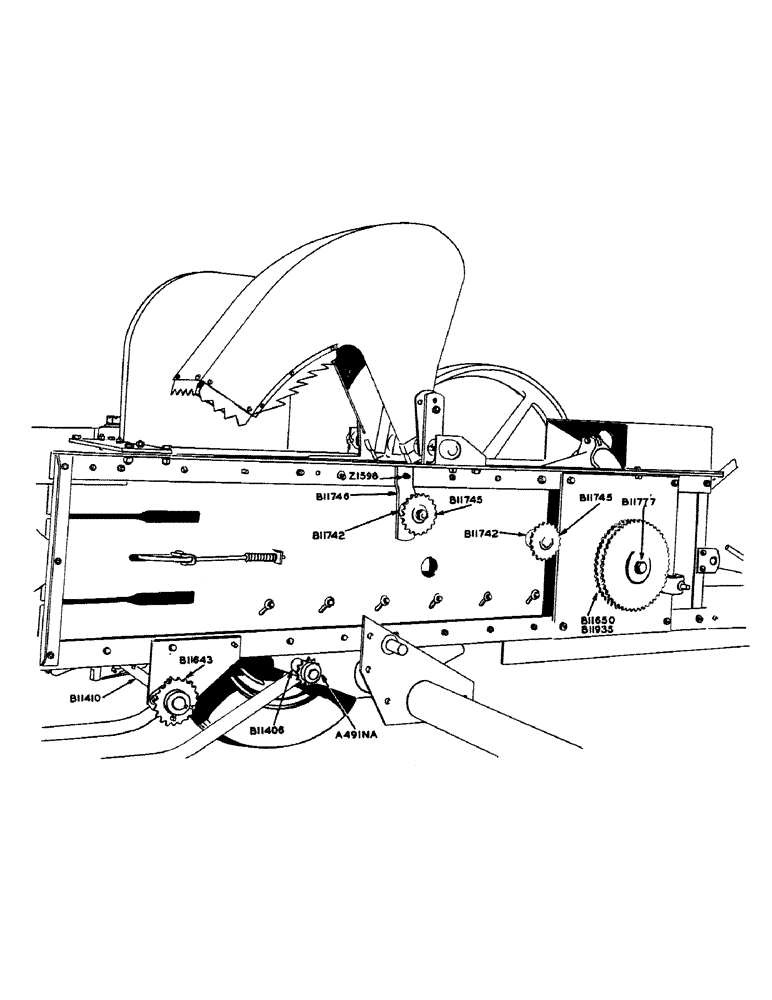

Запчасти Case IH 130 (35) - PICKUP DRIVE

B11572

CHAIN - pickup drive, drives pickup and knotter, for use with B11650 50 tooth sprocket (Use 1-B12517 chain, 1-B12519 chain, 2- B12521 conn. link, 1-B12522 offset link, 2-B12523 roller link, #C2050 1-1/4" double or extended pitch roller chain) See B11937

1шт.

B11650

SPROCKET - (50T - 50T) double, pickup and knotter drive (See B11935)

1шт.

B11653

KEY - crankshaft sprocket B11650

1шт.

B11742

STUD - tightener sprocket

1шт.

5/8" x 3-3/4" N.C. carr. bolt w/hex. nut and lockwasher

1шт.

5/8" plain washer

1шт.

B11745

SPROCKET - (20T) tightener, pickup drive w/O1995N1 bushing

1шт.

1/8" str. Lincoln fitting #5000

1шт.

B11746

ARM - tightener sprocket

1шт.

B11777

WASHER - (3-1/2" O.D. x 25/32" I.D x 5/16") pickup and knotter drive sprocket

1шт.

B11935

SPROCKET - (42T - 50T) double, pickup and knotter drive (Serial #633701 and after) See B11650. (For slowing pickup speed to normal when using a plunger speed of 66 strokes per minute)

1шт.

B11937

CHAIN - pickup drive, drives pickup and knotter, for use with B11935 42 tooth sprocket (Use 1-B12517 chain, 1-B12518 chain, 1- B12519 chain, 2-B12521 conn. link and 2-B12523 roller link #C2050 1-1/4" double or extended pitch roller chain

1шт.

B12521

LINK

- connecting, #C2050 1-1/4" double or extended pitch roller chain

1шт.

B12522

LINK

- offset, #C2050 1-1/4" double or extended pitch roller chain

1шт.

B12523

DRAG LINK

LINK - roller, #C2050 1-1/4" double or extended pitch roller chain

1шт.

O1995N1

BUSHING - B11745 tightener sprocket

1шт.

Z1598

BOLT - (3/8" x 1-1/2" #3 plow w/hex. nut) B11746 arm

1шт.

3/8" lockwasher

1шт.
