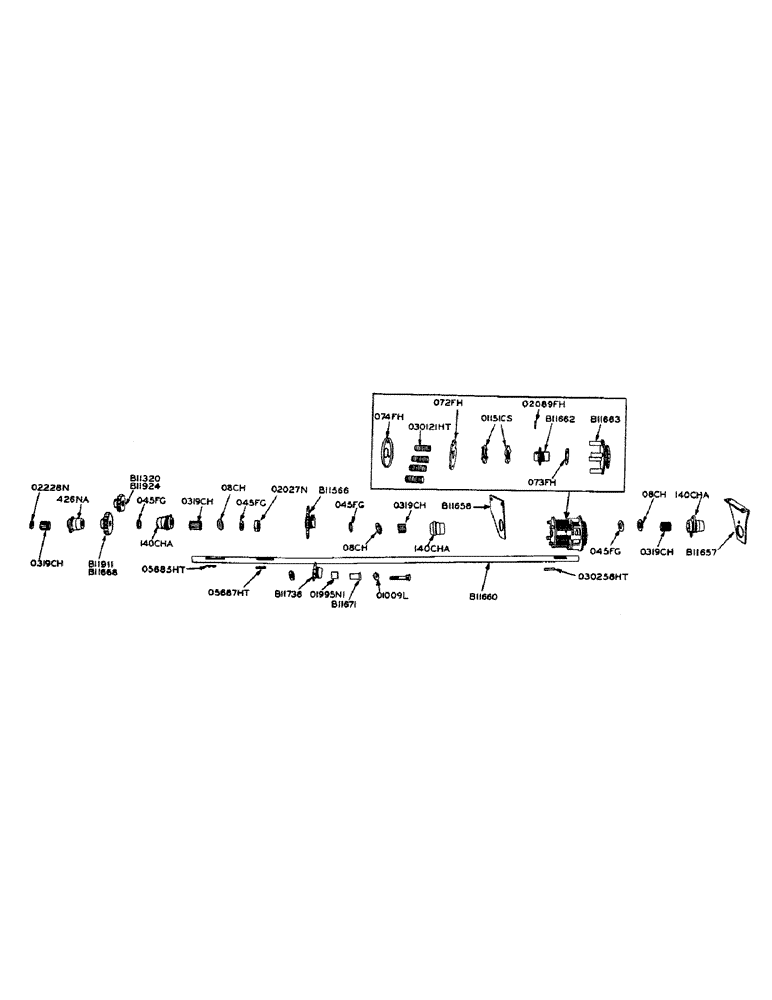

Запчасти Case IH 130 (34) - INTERMEDIATE SHAFT, PICKUP AND AUGER DRIVE

B11320

GEAR - (15T) reduction, rear, reduction shaft (Use B11924)

1шт.

5/16" x 3/4" N.C. sq. hd. C.P. set screw

2шт.

B11566

SPROCKET - (29T) pickup rake drive

1шт.

3/8" x 3/4" N.C. sq. hd. C.P. set screw

2шт.

B11657

PLATE - 140CHA inner bearing

1шт.

B11658

PLATE - bearing, to right of jump clutch

1шт.

3/8" x 1-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

3шт.

3/8" plain washer

3шт.

B11660

SHAFT - intermediate

1шт.

B11668

GEAR - (19T) reduction, front, intermediate shaft (Use B11911)

1шт.

5/16" x 3/4" N.C. sq. hd. C.P. set screw

2шт.

B11671

STUD - B11738 tightener sprocket

1шт.

B11738

SPROCKET - (15T) tightener, rake drive chain w/O1995N1 bushing

1шт.

5/8" x 3-3/4" N.C. carr. w/hex. nut and lockwasher

1шт.

5/8" plain washer

1шт.

B11906

SPACER - reduction gear, rear, used when B11320 and B11911 gears are used together

1шт.

B11911

GEAR - (19T) reduction, front, intermediate shaft (After serial #637147)

1шт.

B11924

GEAR - (15T) reduction, rear, reduction shaft (After serial #637147)

1шт.

8CH

MAKING-UP

Use 140CHA or 426NA

1шт.

O8CH

CAP - 140CHA bearing

3шт.

O319CH

BEARING - (Hyatt #94632) 140CHA bearing

3шт.

O319CH

BEARING - (Hyatt #94632) 426NA bearing

1шт.

O45FG

WASHER - (1-7/8" O.D. x 1-9/64" I.D. #16 ga.) spacing, intermediate shaft

5шт.

O5685HT

KEY - B11668 reduction gear

1шт.

O5687HT

KEY - pickup rake drive sprocket

1шт.

O30258HT

KEY - B11662 hub

1шт.

O1009L

X

WASHER - B11738 tightener sprocket

1шт.

O1995N1

BUSHING - B11738 sprocket

1шт.

O2027N

COLLAR

1шт.

1/2" x 1/2" N.C. sq. hd. C.P. set screw

1шт.

O2228N

PLUG - 426NA bearing

1шт.

140CHA

BEARING - intermediate shaft, with housing (Includes 1-O8CH cap and 1-O319CH bearing)

3шт.

3/8" x 1-1/4" N.F. hex. hd. cap screw w/dbl. hex. nut

3шт.

1/8" str. Lincoln fitting #5000

2шт.

1/8" 90 degree Lincoln fitting #5400

1шт.

426NA

BEARING - L.H. end of intermediate shaft, with housing (Includes 1-O319CH bearing and 1-O2228N plug)

1шт.

3/8" x 1-1/4" N.F. hex. hd. cap screw w/dbl. hex. nut

1шт.

1/8" 45 degree Lincoln fitting #5200

1шт.

B11662

HUB JUMP CLUTCH- PICKUP AND AUGER DRIVE

1шт.

B11663

SPROCKET - (20T) jump clutch JUMP CLUTCH-PICKUP AND AUGER DRIVE

1шт.

O1151CS

RING - clutch JUMP CLUTCH-PICKUP AND AUGER DRIVE

2шт.

O72FH

PLATE - clutch JUMP CLUTCH-PICKUP AND AUGER DRIVE

1шт.

3/8" x 5-3/4" N.C. carr. bolt w/dbl. hex. nut JUMP CLUTCH-PICKUP AND AUGER DRIVE

4шт.

3/8" plain washer JUMP CLUTCH-PICKUP AND AUGER DRIVE

4шт.

O73FH

WASHER - (3-1/2" O.D. x 2" I.D. #10 or 12 ga.) JUMP CLUTCH-PICKUP AND AUGER DRIVE

1шт.

O74FH

COVER - spring JUMP CLUTCH-PICKUP AND AUGER DRIVE

1шт.

O2089FH

X

ROLL PIN - (3/8" x 1-3/4") for B11662 hub JUMP CLUTCH-PICKUP AND AUGER DRIVE

1шт.

O30121HT

SPRING JUMP CLUTCH-PICKUP AND AUGER DRIVE

4шт.
