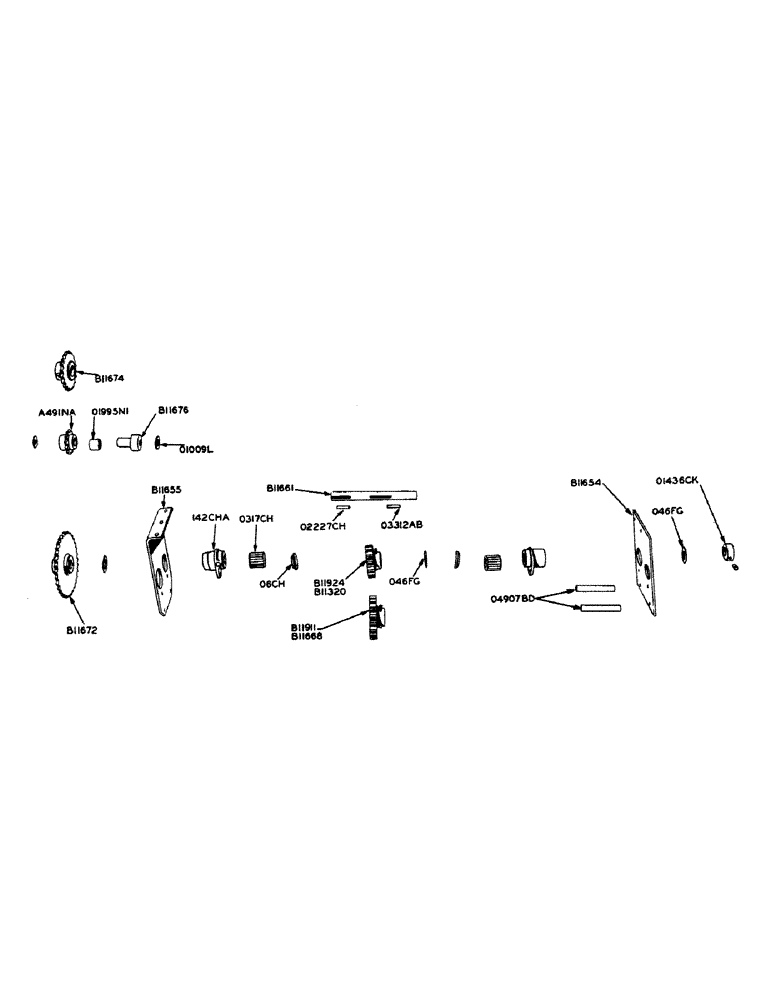

Запчасти Case IH 130 (33) - REDUCTION GEAR BOX

B11320

GEAR - (15T), reduction, rear reduction shaft (Use B11924)

1шт.

5/16" x 3/4" N.C. sq. hd. C.P. set screw

2шт.

B11654

PLATE - inner reduction gear box

1шт.

3/8" x 5-1/2" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

3/8" plain washer

4шт.

B11655

PLATE - outer, reduction gear box

1шт.

1/2" x 1-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

1шт.

B11661

SHAFT - reduction gear

1шт.

B11668

GEAR - (19T), reduction, front, intermediate shaft (Use B11911)

1шт.

5/16" x 3/4" N.C. sq. hd. C.P. set screw

1шт.

B11672

SPROCKET - (33T), auger drive

1шт.

3/8" x 3/4" N.C. sq. hd. C.P. set screw

2шт.

B11674

SPROCKET - (20T), auger driven

1шт.

3/8" x 3/4" N.C. sq. hd. C.P. set screw

1шт.

B11676

STUD - idler sprocket

1шт.

B11906

SPACER - reduction gear, rear. Used when B11320 and B11911 gears are used together

1шт.

B11911

GEAR - (19T) reduction, front, intermediate shaft (After serial #637147)

1шт.

B11924

GEAR - (15T) reduction, rear, reduction shaft (After serial #637147)

1шт.

17CH

Use 142CHA

1шт.

O3312AB

KEY

- B11320 reduction gear

1шт.

O4907BD

SPACER - inner and outer reduction gear plates

2шт.

O6CH

WASHER

CAP - 142CHA bearing

2шт.

O317CH

BEARING (Hyatt #94526), 142CHA bearing

2шт.

O2227CH

KEY

- for B11672 auger drive sprocket

1шт.

O1436CK

COLLAR - intermediate shaft

1шт.

3/8" x 1/2" N.C. sq. hd. C.P. set screw

1шт.

O46FG

WASHER - (1-3/4" O.D. x 1-1/32" I.D. #16 ga.), spacing, reduction gear shaft

2шт.

O1009L

X

WASHER - A491NA idler sprocket

1шт.

O1995N1

BUSHING - tightener sprocket A491NA

1шт.

142CHA

BEARING - reduction gear shaft w/housing (Includes 1-O6CH cap and 1-O317CH bearing)

2шт.

1/8" str. Lincoln fitting #5000

1шт.

1/8" 90 degree Lincoln fitting #5400

1шт.

A491NA

SPROCKET - (12T), idler, w/O1995N1 bushing, auger drive chain

1шт.

1/2" x 3-1/2" N.C. carr. bolt w/hex. nut and lockwasher

1шт.

1/2" plain washer

1шт.
